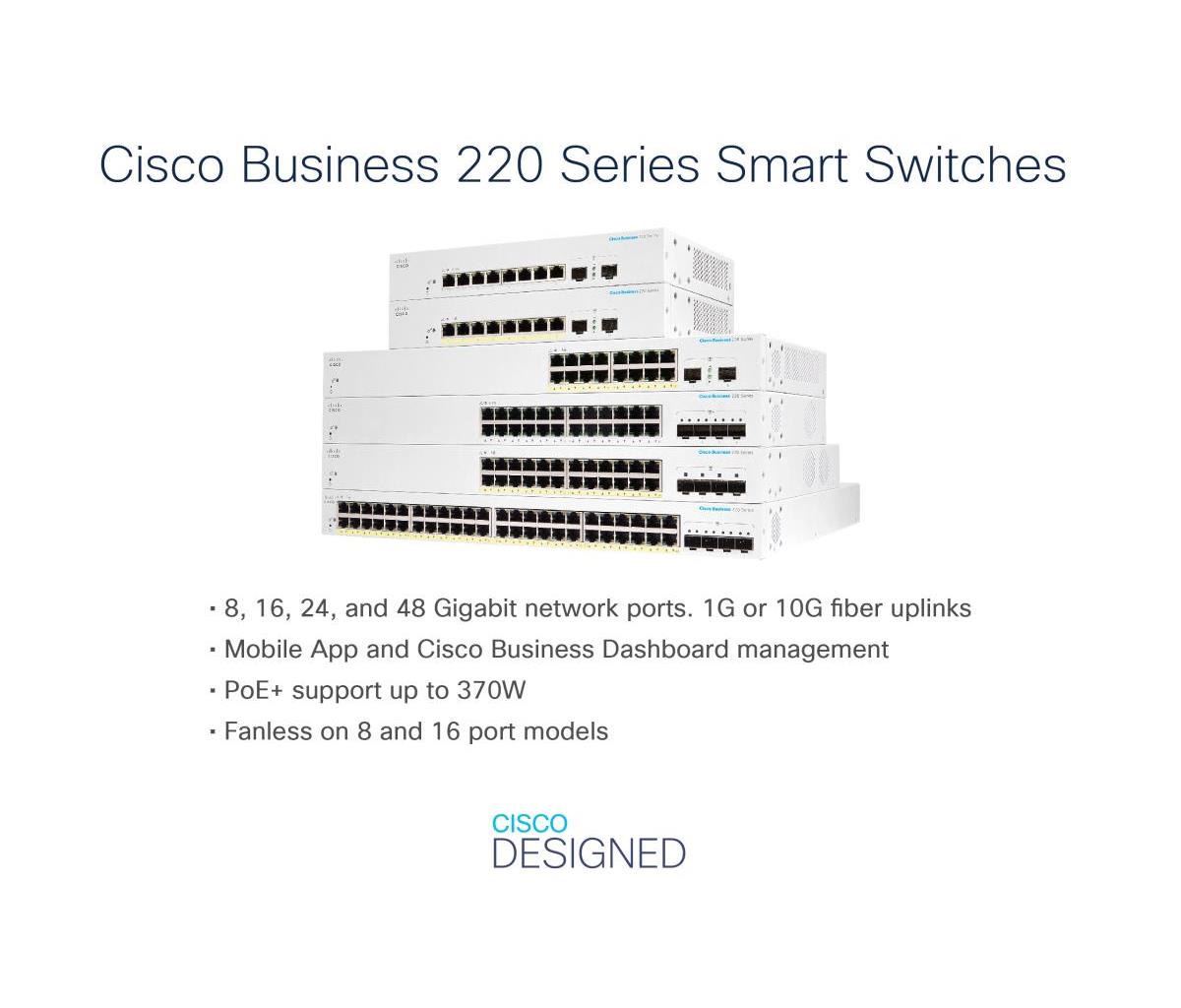

Smart Switch - Cbs220 48-port Ge Full Poe 4x10g Sfp+

ITCurry #: 0918V510 | Article #: CBS220-48FP-4X-UK
Prijs:
825,79 Excl. btw
Levering in Benelux:
GRATIS Levering.
Nu niet op voorraad. Bel ons!

Verwante producten

slide 7 to 11 of 14

Product Informatie

The Cisco Business CBS220-48FP-4X switch is simple and affordable smart switch for business-class network. CBS220 series bridge the gap between the affordability of an unmanaged device and the ease-of-use of smart switches. With their intuitive dashboard, mobile app support, and multiple Power over Ethernet (PoE) options, these switches deliver a solid business network.

Beheerfuncties
Switch type Managed
Switch-laag L2
Quality of Service (QoS) Ja
Web-gebaseerd management Ja
Locatie-instellingen (CLI) configureren Ja
System event log Ja
MIB-ondersteuning Y
Poorten & interfaces
Aantal basis-switching RJ-45 Ethernet-poorten 48
Type basis-switching RJ-45 Ethernet-poorten Gigabit Ethernet (10/100/1000)
Aantal moduleslots SPF+ 4
Netwerk
Netwerkstandaard IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x, IEEE 802.3at, IEEE 802.3z, IEEE 802.1D, IEEE 802.1w, IEEE 802.1x
10G support Ja
Port mirroring Ja
Datastroombeheer Ja
Verbindingsaggregatie Ja
Broadcast stormbeheer Ja
Auto MDI/MDI-X Ja
Spanning tree protocol Ja
Head-of-line (HOL) blocking Ja
VLAN=ondersteuning Ja
Aantal VLANs 256
Data-uitwisseling
Switchingcapaciteit 176 Gbit/s
MAC-adrestabel 8192 entries
Jumbo Frames ondersteuning Ja
Jumbo frames 9216
Beveiliging
DHCP-functies DHCP client
Access Control List (ACL) Ja
Regels voor toegangscontrolelijst (ACL) 512
IGMP snooping Ja
IGMP-vermeldingen 256
Ondersteunde beveiligingsalgoritmen SSL/TLS
MAC adres filtering Ja
SSH/SSL support Ja
Bescherming lus Ja
BPDU filtering / bescherming Ja
Multicast-functies
Multicast-ondersteuning Ja
Aantal gefilterde multicast-groepen 256
Protocollen
Beheerprotocollen SNMP
GARP VLAN Registratieprotocol (GVRP) Ja
Design
Rack-montage Ja
Kleur van het product Wit
Reset button Ja
LED-indicatoren Ja
Aantal ventilatoren 1 ventilator(en)
Marktsegment Bedrijf
Land van herkomst China
Prestatie
Upgraden van firmware mogelijk Ja
Technische details
Producten per (binnenste) verzendverpakking 1 stuk(s)
Energie
Type stekker Type C
Warranty
Base Warranty Non Non

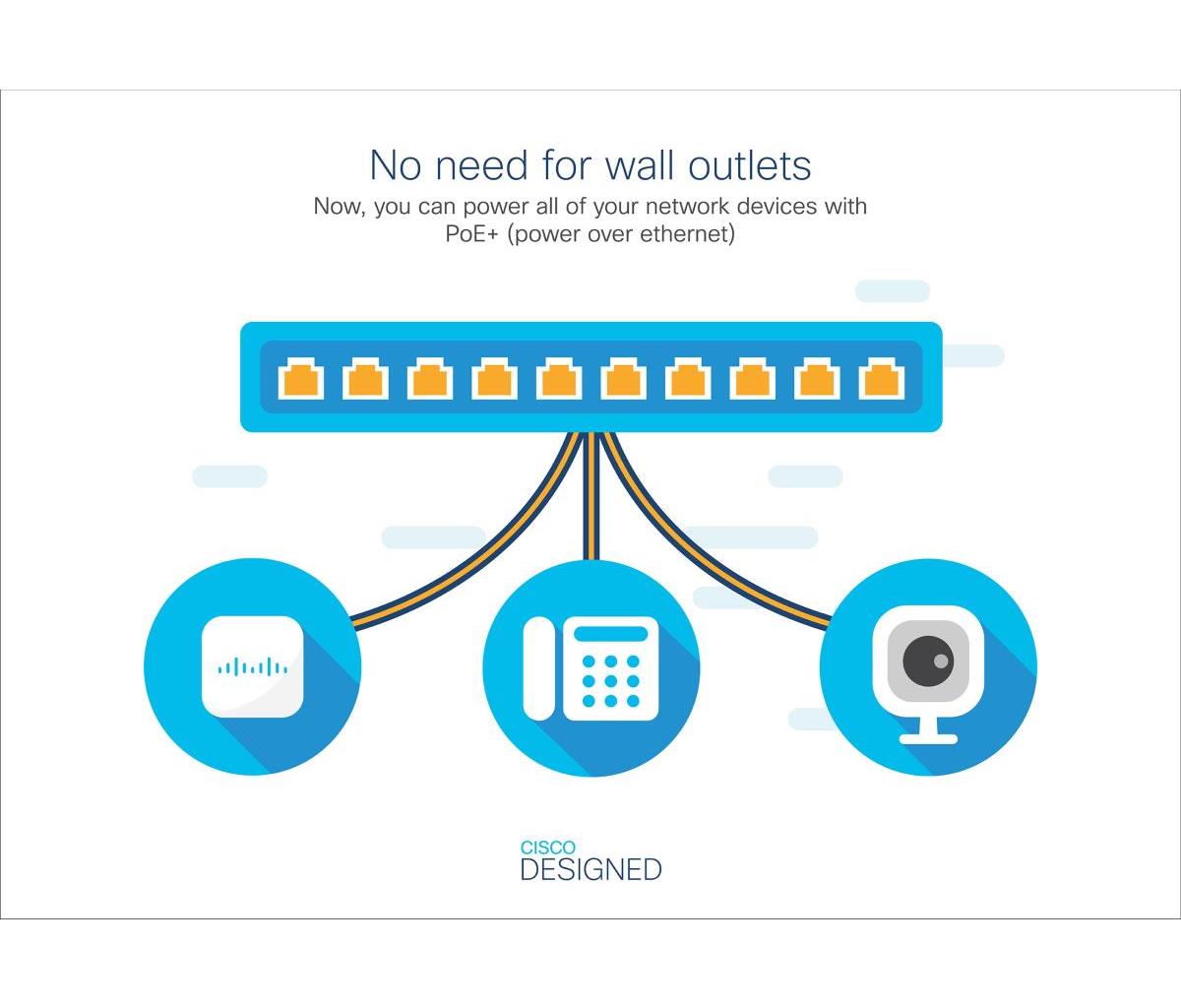

Power over Ethernet (PoE)
Power over Ethernet (PoE) Ja
Hoeveelheid Power over Ethernet (PoE) ports 48
Totaal Power over Ethernet (PoE)-budget 740 W
Eisen aan de omgeving
Bedrijfstemperatuur (T-T) 0 - 50 øC
Temperatuur bij opslag -20 - 70 øC
Relatieve vochtigheid in bedrijf (V-V) 10 - 90 procent
Luchtvochtigheid bij opslag 10 - 90 procent
Gewicht en omvang
Breedte 350 mm
Diepte 440 mm
Hoogte 44 mm
Gewicht 5,65 kg
Verpakking
Breedte verpakking 513,1 mm
Diepte verpakking 574 mm
Hoogte verpakking 109,2 mm
Gewicht verpakking 7,91 kg
Logistieke gegevens
Aantal per verpakking 1 stuk(s)
Hoeveelheid per (buitenste) hoofdverpakking 1 stuk(s)
