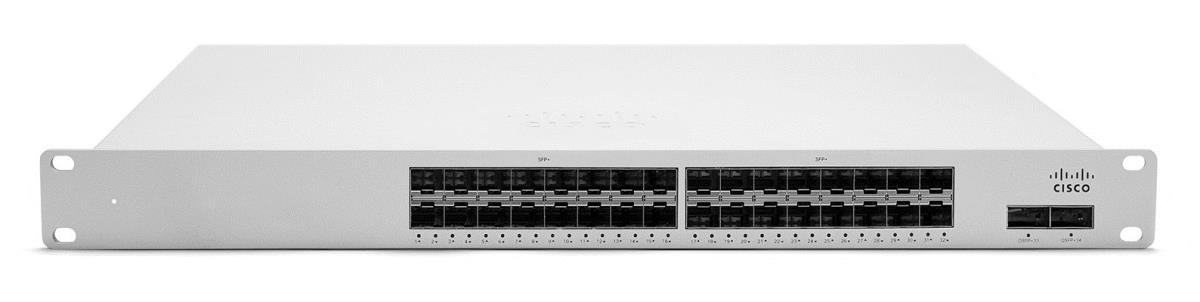

Manageable Ethernet Switch - Stack Port - 34 X Expansion Slots - 40gbase-x, 10gbase-x - Uplink Port

ITCurry #: 0918N447 | Article #: MS425-32-HW
Prijs:
15035,68 Excl. btw
Levering in Benelux:
GRATIS Levering.
Nu niet op voorraad. Bel ons!

Verwante producten

slide 7 to 11 of 14

Product Informatie

Switch ports/stacking ports
- 32 × 10G SFP+ ports
- 2 × 40G QSFP+ uplinks
- Up to 800 Gbps of switching capacity
- 160G flexible stacking

Hardware platform
- Reliable platform with 24/7 Meraki Support
- 1RU rack mountable
- 1 RU for space-constrained environments
- Voice and video QoS
- Non-blocking switch fabric

Cloud management
- Email alerts for switch management
- Remote troubleshooting tools
- Manage ports from a GUI-based dashboard
- Zero-touch provisioning
- Per-port and per-client usage statistics
- Secure, user-scheduled firmware updates

Switching capabilities
- Layer 3
- OSPF Routing
- MAC forwarding entries, up to 228K
- DHCP Server, DHCP Relay
- 802.1X Authentication
- DHCP Snooping
- STP Enhancements
- IPv4 and IPv6 ACLs

Beheerfuncties
Switch type Managed
Switch-laag L3
Poorten & interfaces
Aantal moduleslots SPF+ 32
Aantal GSFP+-moduleslots 2
Netwerk
Netwerkstandaard IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3ad
10G support Ja
Verbindingsaggregatie Ja
Broadcast stormbeheer Ja
Aantal VLANs 4095
Data-uitwisseling
Switchingcapaciteit 480 Gbit/s
MAC-adrestabel 228000 entries
Latentie (10 Gbps) 1,2 æs
Beveiliging
DHCP-functies DHCP server, DHCP client
IGMP snooping Ja
Ondersteunde beveiligingsalgoritmen SNMP
Design
Rack-montage Ja
Stapelbaar Ja
Kleur van het product Wit
Certificering CSA, IC, CE, C-Tick, RoHS
Prestatie
Upgraden van firmware mogelijk Ja
Mean time between failures (MTBF) 287587 uur
Energie
AC-ingangsspanning 100 - 240 V
AC-ingangsfrequentie 47/63 Hz
Stroomverbruik (typisch) 85 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) Nee
Eisen aan de omgeving
Bedrijfstemperatuur (T-T) 0 - 40 øC
Relatieve vochtigheid in bedrijf (V-V) 5 - 95 procent
Gewicht en omvang
Breedte 484,4 mm
Diepte 486,9 mm
Hoogte 43,7 mm
Verpakking
Gebruikershandleiding Ja
Logistieke gegevens
Code geharmoniseerd systeem (HS) 85176990
Warranty
Base Warranty Non Non
