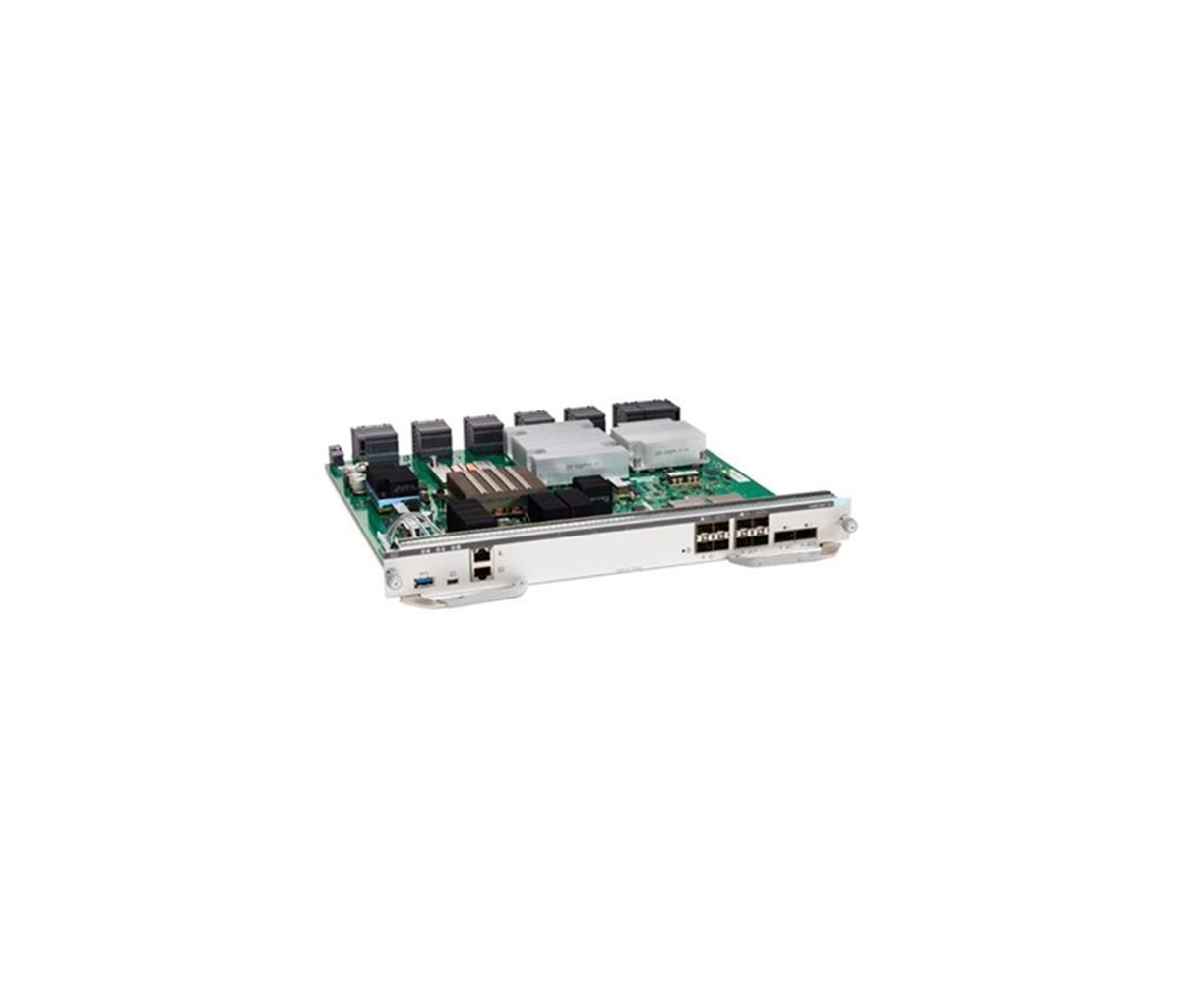

Cisco Catalyst 9400 Series Supervisor 1xl Module / Refurb
ITCurry #: 0918AH18 | Article #: C9400-SUP-1XL-RF-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
The Cisco Catalyst C9400-SUP-1XL supervisor engine is a next-generation supervisor optimized for enterprise-class the core and aggregation layers, supporting up to 240 Gbps. The C9400-SUP-1XL supervisor engine hardware is capable of supporting advanced routing and infrastructure services such as Multiprotocol Label Switching (MPLS); software-defined access control and border capabilities (such as a host tracking database, cross-domain connectivity, and VPN routing and forwarding [VRF]-aware Locator/ID Separation Protocol [LISP]); flexible ASIC templates to create resources to optimize table sizes for different places in the network; and network system virtualization with Cisco StackWise Virtual technology, which is critical for placement in the campus core.
| Netwerk | |
| Ethernet interface type | 10 Gigabit Ethernet, 40 Gigabit Ethernet |
| Ethernet LAN, data-overdrachtsnelheden | 10000,40000 Mbit/s |
| Netwerkstandaard | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ae |
| Jumbo Frames ondersteuning | Ja |
| Ondersteunde protocollen | SNMPv1, SNMPv2c, SNMPv3 |
| Optische vezel | |
| Vezel-optische connector | QSFP, SFP+ |
| Data-uitwisseling | |
| MAC-adrestabel | 64000 entries |
| Aantal VLANs | 4096 |
| Poorten & interfaces | |
| Fibre channel-poorten | 48 |
| Aantal moduleslots SPF+ | 8 |
| Prestatie | |
| Quality of Service (QoS) | Ja |
| Access Control List (ACL) | Ja |
| Ondersteunde beveiligingsalgoritmen | 256-bit AES |
| Mean time between failures (MTBF) | 253010 uur |
| Energie | |
| Power over Ethernet (PoE) | Nee |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | -5 - 45 øC |
| Temperatuur bij opslag | -40 - 70 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 95 procent |
| Luchtvochtigheid bij opslag | 10 - 95 procent |
| Hoogte, in bedrijf | -60 - 3000 m |
| Duurzaamheid | |
| Naleving van duurzaamheid | Ja |
| Certificaten | |
| Certificaten van naleving | RoHS |
| Certificering | UL 60950-1 CAN/CSA-C222.2 No. 60950-1 EN 60950-1 IEC 60950-1 AS/NZS 60950.1 IEEE 802.3 47 CFR Part 15 CISPR22 Class A EN 300 386 V1.6.1 EN 55022 Class A EN 55032 Class A CISPR 32 Class A EN61000-3-2 EN61000-3-3 ICES-003 Class A TCVN 7189 Class A V-3 Class A CISPR24 EN 300 386 EN55024 TCVN 7317 |
| Gewicht en omvang | |
| Breedte | 379 mm |
| Diepte | 370 mm |
| Hoogte | 40,6 mm |
| Verpakking | |
| Gewicht verpakking | 1 kg |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 85176990 |
| Warranty | |
| Base Warranty | Non Non |
