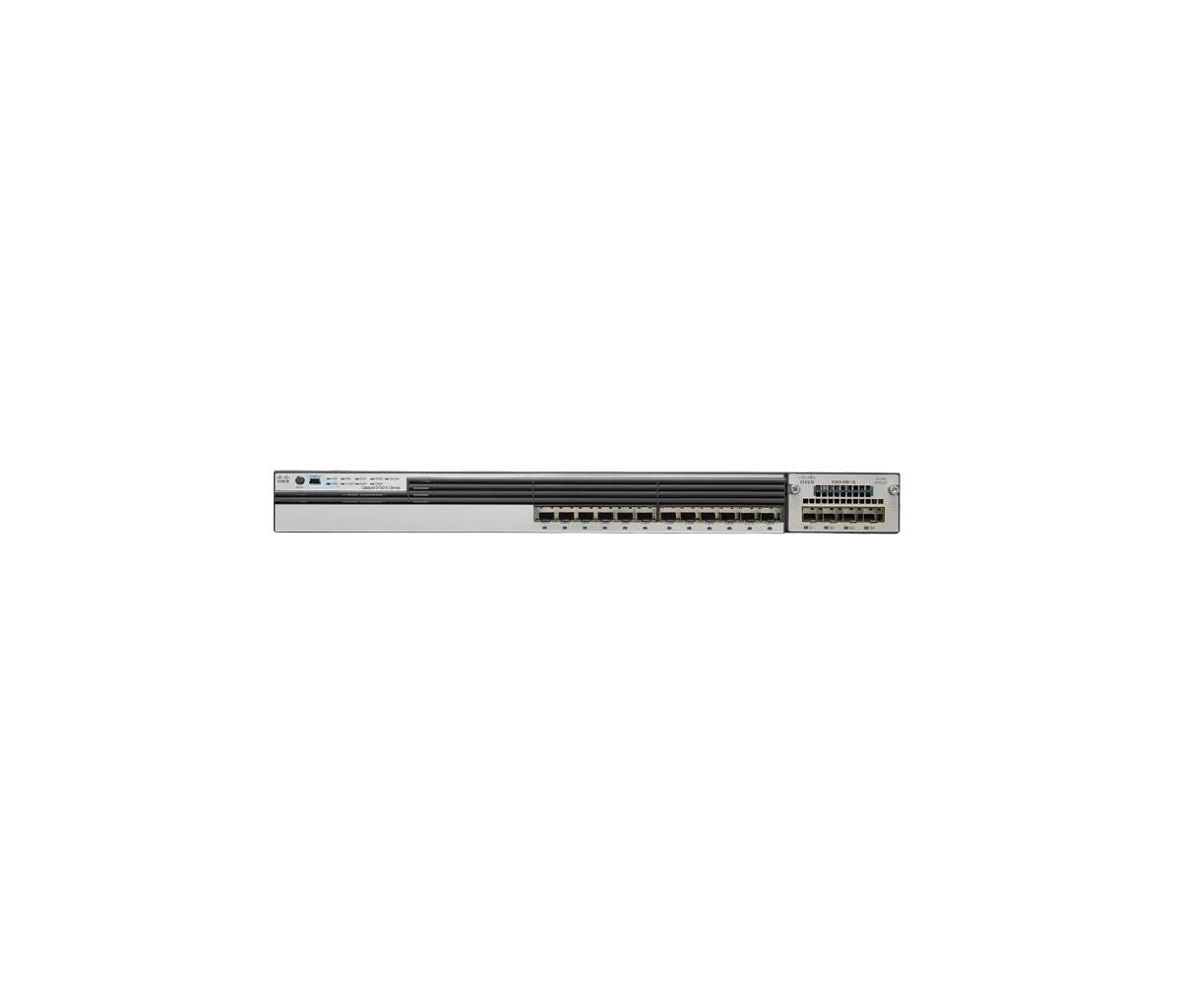

Cisco Catalyst 3850 12port Ge Sfp Ip Base / Refurb
ITCurry #: 0918AG99 | Article #: WS-C3850-12S-S-RF-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
The Cisco®Catalyst® 3850 Series is the next generation of enterprise-class stackable Ethernet and Multigigabit Ethernet access and aggregation layer switches that provide full convergence between wired and wireless on a single platform. Cisco’s new Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility and application optimization. This convergence is built on the resilience of the new and improved Cisco StackWise-480 technology. The Cisco Catalyst 3850 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), Cisco Universal Power over Ethernet (Cisco UPOE), modular and field-replaceable network modules, RJ45 and fiber-based downlink interfaces, and redundant fans and power supplies. With speeds that reach 10Gbps, the Catalyst 3850 Multigigabit Ethernet Switches support current and next-generation wireless speeds and standards (including 802.11ac Wave 2) on existing cabling infrastructure.
| Beheerfuncties | |
| Switch type | Managed |
| Switch-laag | L3 |
| Quality of Service (QoS) | Ja |
| Web-gebaseerd management | Ja |
| Poorten & interfaces | |
| Type basis-switching RJ-45 Ethernet-poorten | Nee |
| Aantal moduleslots SPF | 12 |
| Netstekker | DC-in ingang |
| Netwerk | |
| Netwerkstandaard | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Nee |
| Koperen ethernetbekabelingstechnologie | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Spanning tree protocol | Ja |
| Data-uitwisseling | |
| Switchingcapaciteit | 68 Gbit/s |
| Throughput | 50,5 Mpps |
| MAC-adrestabel | 32000 entries |
| Jumbo Frames ondersteuning | Ja |
| Beveiliging | |
| IGMP snooping | Ja |
| Ondersteunde beveiligingsalgoritmen | 802.1x RADIUS, SNMP, SSH |
| Multicast-functies | |
| Multicast-ondersteuning | Ja |
| Design | |
| Rack-montage | Ja |
| Stapelbaar | Ja |
| Vormfactor | 1U |
| Kleur van het product | Grijs |
| LED-indicatoren | Ja |
| Veiligheid | UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1 |
| Prestatie | |
| Mean time between failures (MTBF) | 315840 uur |
| Energie | |
| Aantal voedingen | 1 |
| AC-ingangsspanning | 115 - 230 V |
| AC-ingangsfrequentie | 50 - 60 Hz |
| Stroom | 2 - 4 A |
| Vermogensverbruik (max) | 350 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Nee |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | -5 - 45 øC |
| Temperatuur bij opslag | -40 - 70 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 5 - 90 procent |
| Luchtvochtigheid bij opslag | 5 - 90 procent |
| Hoogte, in bedrijf | 0 - 3000 m |
| Warmtedissipatie | 1207 BTU/h |
| Gewicht en omvang | |
| Breedte | 444,5 mm |
| Diepte | 449,5 mm |
| Hoogte | 44,5 mm |
| Gewicht | 7,02 kg |
| Duurzaamheid | |
| Duurzaamheidscertificaten | ENERGY STAR |
| Certificaten | |
| Certificering | 47CFR, AS/NZS CISPR22, CISPR22, EN55022, ICES003, VCCI, EN61000-3-2, EN61000-3-3, KN22, KCC, CNS13438, EN55024, CISPR24, KN24 |
| Warranty | |
| Base Warranty | Non Non |
