Cisco 926 Vdsl2/adsl2+ Over Isdn And 1ge Sec Router
ITCurry #: 0918Q404 | Article #: C926-4P
Verwante producten
Product Informatie
The Cisco 900 Series ISRs deliver integrated security and threat defense, protecting networks from both known and new Internet vulnerabilities and attacks. These powerful, fixed-configuration routers provide secure broadband and Metro Ethernet connectivity. Service providers offering managed Ethernet WAN services can deploy them in customer locations as CPE. Centralized and remote management capabilities are available through web-based tools and Cisco IOS® Software for full visibility and control of network configurations at the remote site.
The 900 Series ISRs simplify the deployment of Ethernet WAN services, with end-to-end Operations, Administration, and Maintenance (OA&M), Service-Level Agreement (SLA) monitoring and verification, and configuration management.

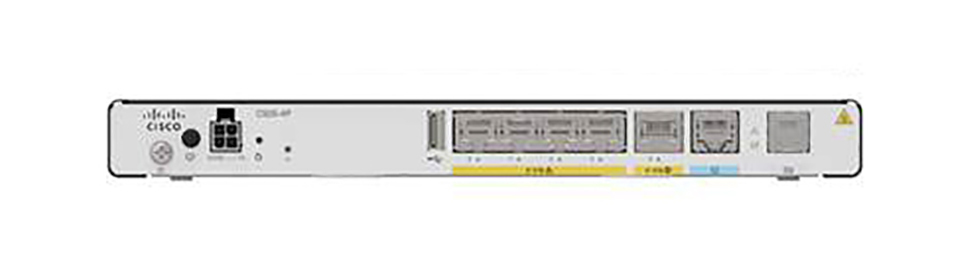

The Cisco 900 Series ISRs come with a 4-port managed switch, providing LAN ports to connect multiple devices. Figures 1 and 2 show the C921-4P and C926-4P models.
| WAN-verbinding | |
| Ethernet WAN | Ja |
| SIM-kaartsleuf | Nee |
| 3G/4G USB modem compatibiliteit | Nee |
| Netwerk | |
| Netwerkstandaard | IEEE 802.1x |
| Ethernet LAN | Ja |
| Ethernet LAN, data-overdrachtsnelheden | 10,100,1000 Mbit/s |
| VLAN=ondersteuning | Ja |
| Multicast-ondersteuning | Ja |
| Auto MDI/MDI-X | Ja |
| Aantal gebruikers | 50 gebruiker(s) |
| Gedifferentieerde services (DiffServ) ondersteund | Ja |
| DSL-eigenschappen | |
| ADSL2+ | Ja |
| VDSL2 | Ja |
| Beheerfuncties | |
| Quality of Service (QoS) | Ja |
| Poorten & interfaces | |
| Aantal Ethernet LAN (RJ-45)-poorten | 4 |
| Aantal USB-aansluitingen | 1 |
| USB-versie | 2.0 |
| Protocollen | |
| Routing protocols | BGP, EIGRP, OSPF |
| DHCP client | Ja |
| DHCP server | Ja |
| Beveiliging | |
| Ondersteunde beveiligingsalgoritmen | 3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, SSL/TLS |
| Firewall | Ja |
| MAC adres filtering | Ja |
| Access Control List (ACL) | Ja |
| Network address translation (NAT) | Ja |
| Kenmerken | |
| Flash memory | 2000 MB |
| Intern geheugen | 1024 MB |
| Intern geheugentype | DRAM |
| Veiligheid | IEC 60950-1, UL 60950-1, CAN/CSA C22.2 No. 60950-1, EN 60950-1, AS/NZS 60950.1 |
| Design | |
| Kleur van het product | Zwart |
| Energie | |
| Stroomverbruik (typisch) | 30 W |
| Type stroombron | AC |
| AC-ingangsspanning | 100 - 240 V |
| AC-ingangsfrequentie | 50 - 60 Hz |
| Spanning | 12 V |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 45 øC |
| Temperatuur bij opslag | -40 - 70 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 5 - 95 procent |
| Luchtvochtigheid bij opslag | 5 - 95 procent |
| Hoogte, in bedrijf | 0 - 3000 m |
| Hoogte bij opslag | 0 - 4570 m |
| Gewicht en omvang | |
| Breedte | 259,1 mm |
| Diepte | 177,8 mm |
| Hoogte | 28 mm |
| Gewicht | 1,2 kg |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 85176990 |
| Warranty | |
| Base Warranty | Non Non |
