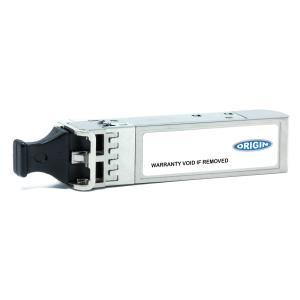

Cisco 1000base-bx40 Sfp 1550nm
ITCurry #: 0918M749 | Article #: GLC-BX40-D-I=-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
The Cisco GLC-BX40-D-I, GLC-BX40-DA-I, and GLC-BX40-U-I SFPs operate on a single strand of standard SMF. A GLC-BX40-D-I or GLC-BX40-DA-I device connects to a GLC-BX40-U-I device with a single strand of standard SMF with an operating transmission range up to 40 km.
The communication over a single strand of fiber is achieved by separating the transmission wavelength of the two devices. The GLC-BX40-D-I, GLC-BX40-DA-I, and GLC-BX40-U-I SFPs also support digital optical monitoring (DOM) functions according to the industry-standard SFF-8472 multisource agreement (MSA). This feature gives the end user the ability to monitor real-time parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.
| Prestatie | |
| SFP transceiver type | Vezel-optiek |
| Maximale overdrachtssnelheid van gegevens | 1000 Mbit/s |
| Soort aansluiting | SFP |
| Single-mode glasvezelkabel (SMF) ondersteund | Ja |
| SFP-zendernorm | BX-D |
| Maximaal bereik | 40000 m |
| Golflengte | 1550 nm |
| Tx vermogen (min) | -5 dBmW |
| Tx vermogen (max) | 3 dBmW |
| Rx vermogen (min) | -25 dBmW |
| Rx vermogen (max) | 3 dBmW |
| Netwerkstandaard | IEEE 802.3ah, IEEE 802.3z |
| Bekabelingstechnologie | 1000BASE-BX40 |
| Kenmerken | |
| Kleur van het product | Grijs |
| Hot-swap | Ja |
| Energie | |
| Stroomverbruik (typisch) | 1 W |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | -40 - 85 øC |
| Temperatuur bij opslag | -40 - 85 øC |
| Gewicht en omvang | |
| Breedte | 13,4 mm |
| Diepte | 56,5 mm |
| Hoogte | 8,5 mm |
| Gewicht | 75 g |
| Inhoud van de verpakking | |
| Aantal per verpakking | 1 stuk(s) |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 85369010 |
| Warranty | |
| Base Warranty | Non Non |
