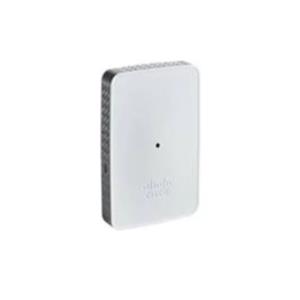

Cbw143acm 802.11ac 2x2 Wave 2 Mesh Extender Wall Mount
ITCurry #: 0918R609 | Article #: CBW143ACM-E-EU-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
The Cisco® Business 100 Series Mesh Extenders offer highly secure wired and wireless connectivity to the home office or small office, and work in hard-to-reach places. These mesh extenders provide seamless coverage and expanded capacity in conjunction with Cisco Business access points.
Features and benefits
Build with simplicity and flexibility in mind, the Cisco Business 100 Series Mesh Extenders expand the deployment of traditional wireless networks while reducing deployment costs. Perfect for use within a small office or back office, they provide connectivity to both local and cloud-based services.
When paired with a Cisco Business access point, the Cisco Business 100 Series Mesh Extenders provide a highly secure and seamless wireless end-user experience.
Cisco Business Mobile app
The Cisco Business 100 Series Mesh Extenders is managed by the Cisco Business Mobile app, an intuitive client application that simplifies traditional challenges associated with wireless network deployment, right from your mobile device. You can extend your network by adding new mesh extenders and automating wireless network activation in minutes. A robust management capability dynamically changes network configuration such as enabling guest access. Network usage, traffic patterns, and network throughput can be closely monitored, providing a real-time snapshot; this not only provides peace of mind, it virtually ensures optimal user experience. The Cisco Business Mobile app is available for iPhone, iPad, and Android devices.
Increased wireless performance
The Cisco Business 100 Series Mesh Extenders support the latest 802.11ac Wave 2 standard for higher performance, greater access, and higher-density networks. With simultaneous dual radios and dual bands with 802.11ac Wave 2 MU-MIMO functionality, these mesh extenders, in conjunction with a Cisco Business access point, provide seamless connectivity.
| Kenmerken | |
| 2,4 GHz | Ja |
| 5 GHz | Ja |
| Maximale overdrachtssnelheid van gegevens | 867 Mbit/s |
| Frequentieband | 2.412 - 2.472, 5.18 - 5.32, 5.5 - 5.6, 5.64 - 5.7 GHz |
| Netwerkstandaard | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11n, IEEE 802.11r |
| Aantal gebruikers | 400 gebruiker(s) |
| Aantal kanalen | 29 kanalen |
| MIMO | Ja |
| MIMO-type | Multi User MIMO |
| Wifi Multimedia (WMM)/(WME) | Ja |
| Dynamic Frequency Selection (DFS) | Ja |
| Zendvermogen | 20 dBmW |
| Beveiliging | |
| Ondersteunde beveiligingsalgoritmen | 802.1x RADIUS, AES, EAP, EAP-FAST, EAP-GTC, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, WPA2, WPA3 |
| Remote Authentication Dial-In User Service (RADIUS) | Ja |
| Poorten & interfaces | |
| Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| Energie | |
| Power over Ethernet (PoE) | Nee |
| AC-ingangsspanning | 100 - 240 V |
| AC-ingangsfrequentie | 50 - 60 Hz |
| Design | |
| Plaatsing | Muur |
| Kleur van het product | Wit |
| Bevestigingsmogelijkheid voor kabelslot | Ja |
| Kabelslot sleuf type | Kensington |
| LED-indicatoren | Ja |
| Antenne | |
| Soort antenne | Intern |
| Antennefuncties | Ingebouwde antenne |
| Antenne versterkingsniveau (max) | 3 dBi |
| Prestatie | |
| Type processor | Ja |
| Frequentie van processor | 710 MHz |
| Flash memory | 128 MB |
| Intern geheugen | 512 MB |
| Certificaten | |
| Certificering | UL 60950-1 CAN/CSA-C22.2 No. 60950-1 UL 2043 IEC 60950-1 EN 60950-1 CC Part 15.247, 15.407 RSS-247 (Canada) EN 300.328, EN 301.893 (Europe) ARIB-STD 66 (Japan) ARIB-STD T71 (Japan) FCC Part 15.107 and 15.109 ICES-003 (Canada) VCCI (Japan) EN 301.489-1 and -17 (Europe) EN 50385 FCC OET-65C RSS-102 |
| Gewicht en omvang | |
| Breedte | 114 mm |
| Diepte | 82,5 mm |
| Hoogte | 19 mm |
| Gewicht | 280 g |
| Inhoud van de verpakking | |
| Aantal per verpakking | 1 stuk(s) |
| Eisen aan de omgeving | |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 90 procent |
| Bedrijfstemperatuur (T-T) | 0 - 50 øC |
| Temperatuur bij opslag | -30 - 70 øC |
| Luchtvochtigheid bij opslag | 10 - 90 procent |
| Hoogte, in bedrijf | 0 - 3000 m |
| Hoogte bij opslag | 0 - 4500 m |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 85176990 |
| Warranty | |
| Base Warranty | Non Non |
