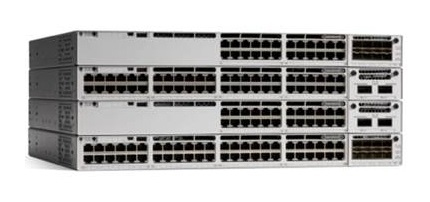

Catalyst 9300l 24p Poe Network Essentials 4x10g Uplink
ITCurry #: 0918Q414 | Article #: C9300L-24P-4X-E-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
The Cisco® Catalyst® 9300 Series switches are Cisco’s lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. They are the next generation of the industry’s most widely deployed switching platform. Catalyst 9300 Series switches form the foundational building block for Software-Defined Access (SD-Access), Cisco’s lead enterprise architecture. At up to 480 Gbps, they are the industry’s highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform for high-density Wi-Fi 6 and 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch.
The Catalyst 9300 Series is designed for Cisco StackWise® technology, providing flexible deployment with support for nonstop forwarding with Stateful Switchover (NSF/SSO), for the most resilient architecture in a stackable (sub-50-ms) solution. The highly resilient and efficient power architecture features Cisco StackPower®, which delivers high-density Cisco Universal Power over Ethernet (Cisco UPOE®) and Power over Ethernet Plus (PoE+) ports. The switches are based on the Cisco Unified Access™ Data Plane 2.0 (UADP) 2.0 architecture which not only protects your investment but also allows a larger scale and higher throughput. A modern operating system, Cisco IOS® XE with programmability offers advanced security capabilities and Internet of Things (IoT) convergence
| Beheerfuncties | |
| Switch type | Managed |
| Switch-laag | L2/L3 |
| Quality of Service (QoS) | Ja |
| ARP-inspectie | Ja |
| Locatie-instellingen (CLI) configureren | Ja |
| MIB-ondersteuning | Y |
| Poorten & interfaces | |
| Aantal basis-switching RJ-45 Ethernet-poorten | 24 |
| Type basis-switching RJ-45 Ethernet-poorten | Gigabit Ethernet (10/100/1000) |
| Aantal USB 2.0-poorten | 1 |
| Netwerk | |
| Netwerkstandaard | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ap, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3z |
| Full duplex | Ja |
| Spanning tree protocol | Ja |
| Ethernet LAN, data-overdrachtsnelheden | 10,100,1000 Mbit/s |
| IPv6-routes | 16000 |
| VLAN=ondersteuning | Ja |
| Aantal VLANs | 4094 |
| Data-uitwisseling | |
| MAC-adrestabel | 32000 entries |
| Jumbo Frames ondersteuning | Ja |
| Jumbo frames | 9198 |
| Beveiliging | |
| DHCP-functies | DHCP snooping |
| Access Control List (ACL) | Ja |
| Regels voor toegangscontrolelijst (ACL) | 5120 |
| Ondersteunde beveiligingsalgoritmen | IPSEC, SNMPv2, SNMPv3 |
| Multicast-functies | |
| Multicast-ondersteuning | Ja |
| Design | |
| Rack-montage | Ja |
| Kleur van het product | Grijs |
| LED-indicatoren | Ja |
| Prestatie | |
| Intern geheugen | 8000 MB |
| Flash memory | 16000 MB |
| Warranty | |
| Base Warranty | Non Non |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | -5 - 40 øC |
| Temperatuur bij opslag | -40 - 70 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 5 - 90 procent |
| Hoogte, in bedrijf | 0 - 3000 m |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 85176990 |
