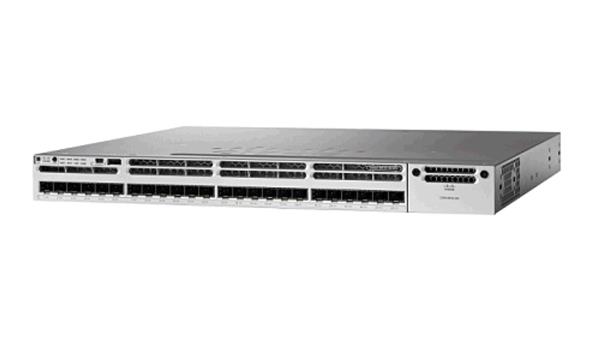

Catalyst 3850-24s-e - Switch - L3 - Managed - 24 X Gigabit Sfp - Desktop, Rack-mountable
ITCurry #: 0918AA26 | Article #: WS-C3850-24S-E-RF-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Catalyst 3850 Enables Unified Access
Cisco Unified Access is the convergence of the wired and wireless networks into one physical infrastructure with greater intelligence, simplicity, performance, and open interfaces. One network starts with Cisco Catalyst 3850 switches, which combine wired and wireless by supporting wireless tunnel termination and full wireless LAN controller functionality.
Best-in-Class Stackable Access Switch
The Cisco Catalyst 3850 Switch currently offers the industry's highest 480 Gbps stacking bandwidth to meet network demand, including gigabit desktop and 802.11ac wireless. The switch delivers advanced capabilities such as a high-performance 24/48 port GE switch, 480 G stacking, Power over Ethernet Plus, StackPower and Flexible NetFlow on all ports.
Converged Wired and Wireless Access
The Cisco Catalyst 3850 Switch brings Cisco IOS excellence to wireless by extending wired infrastructure features, resiliency, granular QoS, and scalability. It provides built-in wireless controller capabilities with 40 G wireless throughput, support for 50 access points and 2000 wireless clients per switch or stack, and support for 802.11ac.
Distributed Intelligent Services
The Cisco Catalyst 3850 Switch delivers common intelligent services across wired and wireless for security and policy, application visibility and control, network resiliency, smart operations, and more. The switch can enable multi-level QoS based on granular information such as SSID, client, radio, application, and fair share policies for wireless.
Foundation for Cisco Open Network Environment
The heart of Cisco Catalyst 3850 is the new ASIC with programmability for future features and intelligence with investment protection. The new ASIC provides a foundation for converged APIs across wired and wireless, software-defined networking (SDN) support, and Cisco One Platform Kit (OnePK).
| Beheerfuncties | |
| Switch type | Managed |
| Switch-laag | L3 |
| Quality of Service (QoS) | Ja |
| Poorten & interfaces | |
| Aantal moduleslots SPF | 24 |
| Netwerk | |
| Netwerkstandaard | IEEE 802.11ac, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| IP routing | Ja |
| Verbindingsaggregatie | Ja |
| Rate limiting | Ja |
| Spanning tree protocol | Ja |
| VLAN=ondersteuning | Ja |
| Aantal VLANs | 4000 |
| Data-uitwisseling | |
| Switchingcapaciteit | 92 Gbit/s |
| Verzending snelheid | 68,4 Mpps |
| MAC-adrestabel | 32000 entries |
| Jumbo Frames ondersteuning | Ja |
| Jumbo frames | 9198 |
| Beveiliging | |
| Access Control List (ACL) | Ja |
| IGMP snooping | Ja |
| Ondersteunde beveiligingsalgoritmen | 802.1x RADIUS |
| Multicast-functies | |
| Multicast-ondersteuning | Ja |
| Protocollen | |
| Beheerprotocollen | SNMP v1, SNMP v2c, SNMP v3 |
| Design | |
| Rack-montage | Ja |
| Stapelbaar | Ja |
| Kleur van het product | Zwart, Grijs |
| LED-indicatoren | Ja |
| Elektromagnetische compatibiliteit | 47CFR, AS/NZS CISPR22 2, CISPR22, EN55022, ICES003, EN61000-3-2, KCC, EN55024, KN24 |
| Prestatie | |
| Type geheugen | DRAM |
| Intern geheugen | 4096 MB |
| Flash memory | 2048 MB |
| Mean time between failures (MTBF) | 300760 uur |
| Energie | |
| AC-ingangsspanning | 100 - 240 V |
| Stroom | 2 - 4 A |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Nee |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | -5 - 45 øC |
| Temperatuur bij opslag | -40 - 70 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 90 procent |
| Luchtvochtigheid bij opslag | 10 - 90 procent |
| Warmtedissipatie | 1207 BTU/h |
| Gewicht en omvang | |
| Breedte | 450 mm |
| Diepte | 445 mm |
| Hoogte | 44,5 mm |
| Gewicht | 7,03 kg |
| Inhoud van de verpakking | |
| Gebruiksaanwijzing | Ja |
| Certificaten | |
| Certificering | RoHS |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 85176990 |
| Warranty | |
| Base Warranty | Non Non |
