Product Informatie
Cost-effective Small Form-Factor Pluggable (SFP) transceivers for Gigabit Ethernet applications

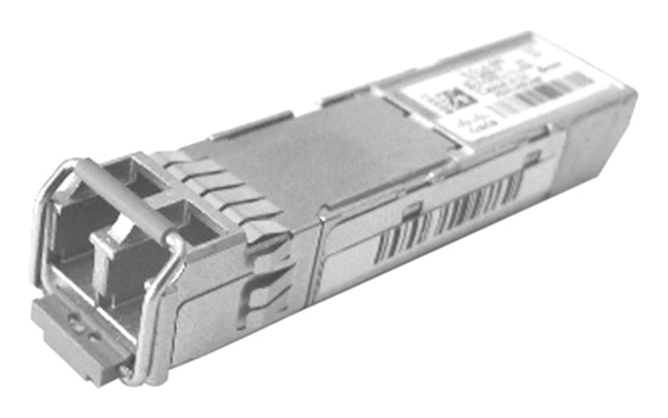

The industry-standard Cisco Small Form-Factor Pluggable (SFP) Gigabit Interface Converter (Figure 1) links your switches and routers to the network. The hot-swappable input/output device plugs into a Gigabit Ethernet port or slot. Optical and copper models can be used on a wide variety of Cisco products and intermixed in combinations of 1000BASE-T, 1000BASE-SX, 1000BASE-LX/LH, 1000BASE-EX, 1000BASE-ZX, or 1000BASE-BX10-D/U on a port-by-port basis.
100/1000BASE-LX SFP for long-reach single-mode fibers
The dual-rate 100M/1G 10Km SFP is interoperable with the IEEE 100BASE-LX and 1000BASE-LX/LH standards.
The GLC-GE-DR-LX SFP also supports Digital Optical Monitoring (DOM) functions according to the industry-standard SFF-8472 Multisource Agreement (MSA). This feature gives the end user the ability to monitor real-time parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.
| Prestatie | |
| Soort aansluiting | SFP |
| Single-mode glasvezelkabel (SMF) ondersteund | Ja |
| Vezel-optische connector | LC |
| SFP-zendernorm | LX |
| Maximaal bereik | 100 m |
| Ethernet LAN | Ja |
| Ethernet interface type | Gigabit Ethernet |
| Koperen ethernetbekabelingstechnologie | 1000BASE |
| Kenmerken | |
| Kleur van het product | Zilver |
| Materiaal behuizing | Metaal |
| Plug and play | Ja |
| Hot-plug ondersteuning | Ja |
| Hot-swap | Ja |
| Gemakkelijk te installeren | Ja |
| Merkcompatibiliteit | Cisco |
| Energie | |
| Ingangsspanning | 3.3 V |
| Maximaal voltage | 3,5 V |
| Stroomverbruik (typisch) | 0,8 W |
| Certificaten | |
| Certificaten van naleving | CE, Federal Communications Commission (FCC), REACH, RoHS, TšV mark, UKCA, UL, US FDA |
| Certificering | CE, FCC, RoHS, REACH |
| Eisen aan de omgeving | |
| Minimum operationele temperatuur | 0 øC |
| Maximale temperatuur (in bedrijf) | 70 øC |
| Bedrijfstemperatuur (T-T) | 0 - 70 øC |
| Temperatuur bij opslag | -40 - 85 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 5 - 95 procent |
| Luchtvochtigheid bij opslag | 5 - 95 procent |
| Gewicht en omvang | |
| Breedte | 13,4 mm |
| Diepte | 56,5 mm |
| Hoogte | 8,5 mm |
| Gewicht | 20 g |
| Inhoud van de verpakking | |
| Aantal per verpakking | 1 stuk(s) |
| Verpakking | |
| Type verpakking | Doos |
| Warranty | |
| Base Warranty | Non Non |
