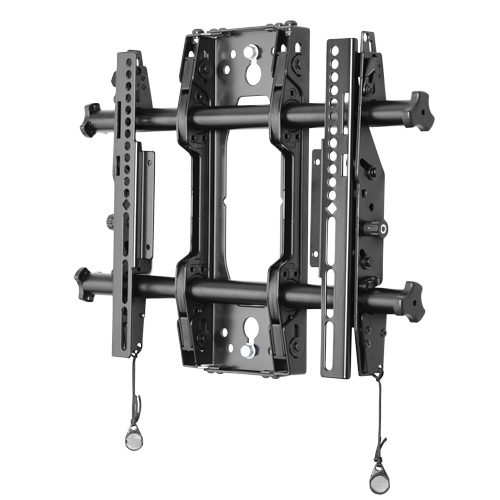

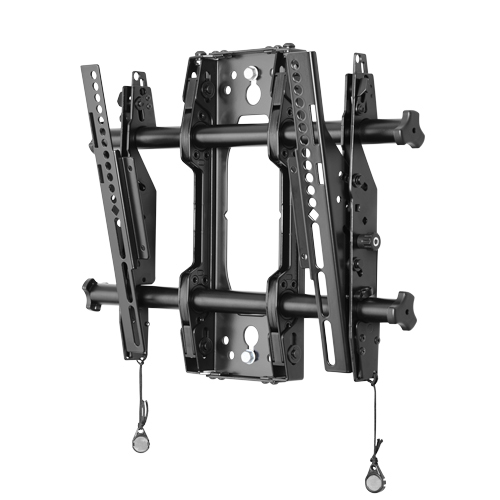

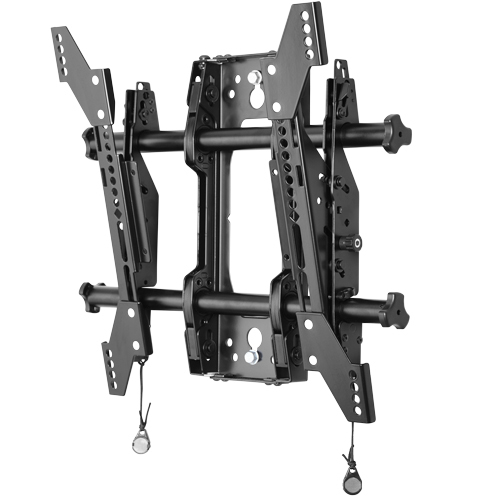

Medium Fusion Micro-adjustable Tilt Wall Display Mount
ITCurry #: N4923866 | Article #: MTMS1U-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Installer-inspired Fusion tilt mount solves top flat panel installation problems, offering flexible adjustments for medium displays with a low-profile display mounting solution.
This single stud Fusion mount hides better behind smaller narrow bezel displays in the 32-47" range. Many installer-friendly features of Fusion in a smaller form to create superior aesthetic results.
The mount incorporates Fusion favorites like Centris tilt, ControlZone leveling adjustment and ClickConnect Latching.
- Centris low-profile tilt uses the center of gravity to balance the screen while maintaining a low profile
- Tilt can be locked at 0°, -6° or -12°
- ControlZone leveling allows post-installation fine-tuning of height and leveling
- ClickConnect offers an audible click when the display safely engages with the mount
- Post-installation lateral positioning
- Set screws keep the mount rigid, stable and secure throughout the life of the installation
- Exclusive nesting spacers can be stacked to achieve any depth
- Quick-Store Cords use magnets to easily store and access pull cords
- Integrated Security
- Ships with a custom hardware kit that can be hung from mount rails if installing in stages
- Easy Open box with less waste to throw away
| Montage | |
| Minimale schermgrootte | 81,3 cm (32") |
| Maximale gewichtscapaciteit | 34 kg |
| Maximale schermgrootte | 119,4 cm (47") |
| Montagewijze | Muur |
| Montage interface compatibiliteit (min) | 200 x 200 mm |
| Montage interface compatibiliteit (max) | 450 x 400 mm |
| Aantal displays ondersteund | 1 |
| Ergonomie | |
| In hoogte verstelbaar | Ja |
| Hoogte verstelbaarheidsbereik | 0 - 25 mm |
| Bereik kantelhoek | -12 - 2ø |
| Design | |
| Kleur van het product | Zwart |
| Certificering | UL Listed |
| Gewicht en omvang | |
| Breedte | 463 mm |
| Diepte | 51 mm |
| Hoogte | 359 mm |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 85299097 |
| Warranty | |
| Base Warranty | Non Non |
