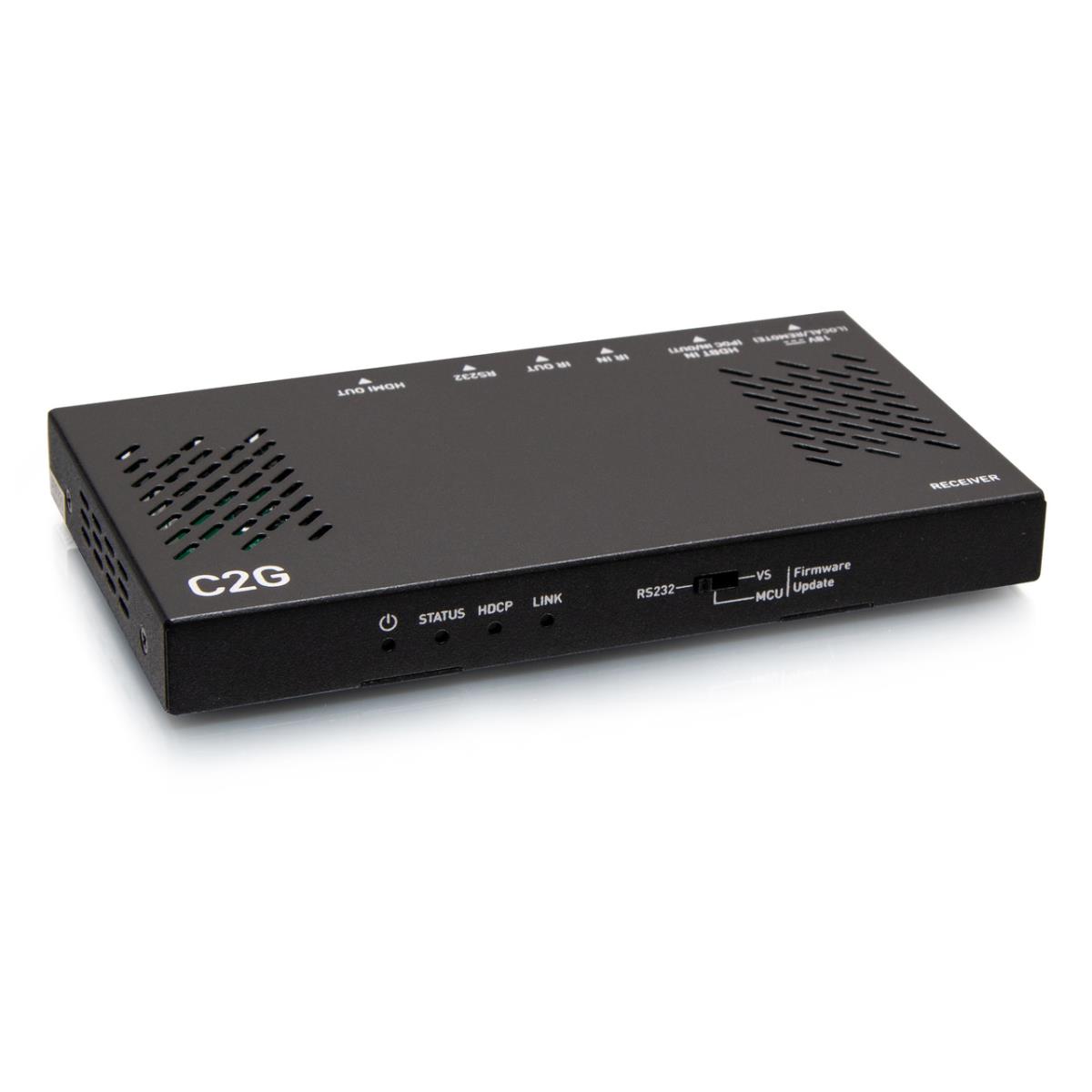

HDMI Ultra-Slim HDBaseT + RS232 And IR Over Cat Extender Box Receiver - 4K 60Hz
ITCurry #: 1842A283 | Article #: C2G31015-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
The HDMI Ultra-Slim HDBaseT + RS232 And IR over Cat Extender Box Receiver - 4K 60Hz allows a 4K HDMI source to be extended up to 130ft to a 4K display using a single Cat6a Ethernet cable. This is an ideal solution where HDMI video and audio need to be extended to displays in conference rooms, classrooms, lecture halls, and many other installation needs that are far beyond the length limitations of standard HDMI cabling.
This receiver accepts HDMI signals over a single network patch cable. Extend 4K HDMI up to 115 feet and 1080p up to 230 feet using a Cat5e or Cat6 cable. For longer 4K distances, extend 4K HDMI or up to 130 feet using a Cat6a cable. This HDMI HDBaseT receiver is HDCP 2.2 compliant, making sure that the connection from the source is secure. With bi-directional PoC support, one power adapter at either transmitter or receiver side can power both units, so no additional power adapter is required, allowing for greater flexibility in installations. Support this HDBaseT system that is already deployed in the field by upgrading firmware through the RS232 port.
| Kenmerken | |
| Soort | AV-receiver |
| Maximum resolutie | 3840 x 2160 Pixels |
| Ondersteundende kabel types | Cat5e, Cat6, Cat6a, Cat7 |
| Maximaal bereik | 70 m |
| Maximale refresh snelheid | 60 Hz |
| RS-232-passthrough | Ja |
| LED-indicatoren | Ja |
| Bandbreedte | 10,2 Gbit/s |
| Bandbreedte | 340 MHz |
| HDCP versie | 2.2 |
| Kleur van het product | Zwart |
| HDBaseT-gecertificeerd | Ja |
| Poorten & interfaces | |
| Connectiviteitstechnologie | Bedraad |
| Ethernet LAN | Ja |
| RJ-45 invoer ports | 1 |
| Aantal HDMI-uitgangen | 1 |
| HDMI versie | 1.4 |
| RS-232 ingangspoorten | 1 |
| Remote (IR) ingang | 1 |
| Remote (IR) uitgang | 1 |
| Aansluiting voor netstroomadapter | Ja |
| Energie | |
| Type stroombron | DC |
| Operating voltage | 18 V |
| Stroom | 1 A |
| Stroomverbruik (ontvanger) (max) | 8,88 W |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 45 øC |
| Temperatuur bij opslag | -20 - 70 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 90 procent |
| Gewicht en omvang | |
| Breedte | 108,8 mm |
| Diepte | 64,2 mm |
| Hoogte | 15 mm |
| Gewicht | 180 g |
| Verpakking | |
| Aantal per verpakking | 1 stuk(s) |
| Inhoud van de verpakking | |
| Inclusief AC-adapter | Ja |
| Inbegrepen soorten voedingsstekkers | AU, EU, UK, US |
| IR-emitter inbegrepen | Ja |
| Gebruikershandleiding | Ja |
| Montage gereedschap | Ja |
| Technische details | |
| Land van herkomst | China |
| Garantieperiode | 5 jaar |
| Certificaten van naleving | Federal Communications Commission (FCC), REACH |
| Warranty | |
| Base Warranty | Non Non |
