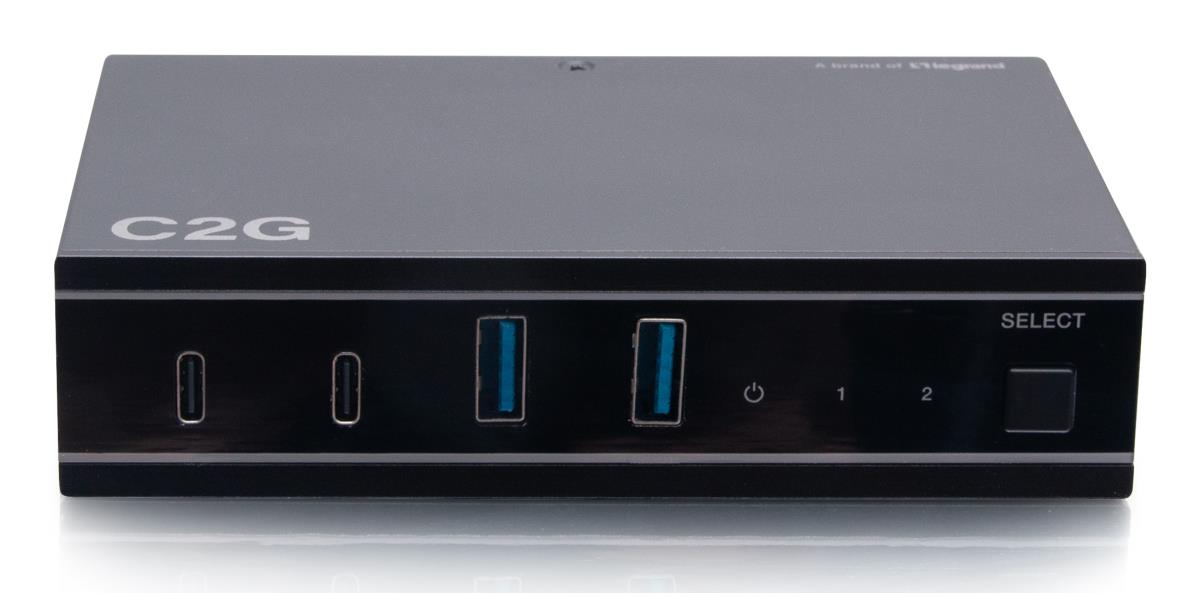

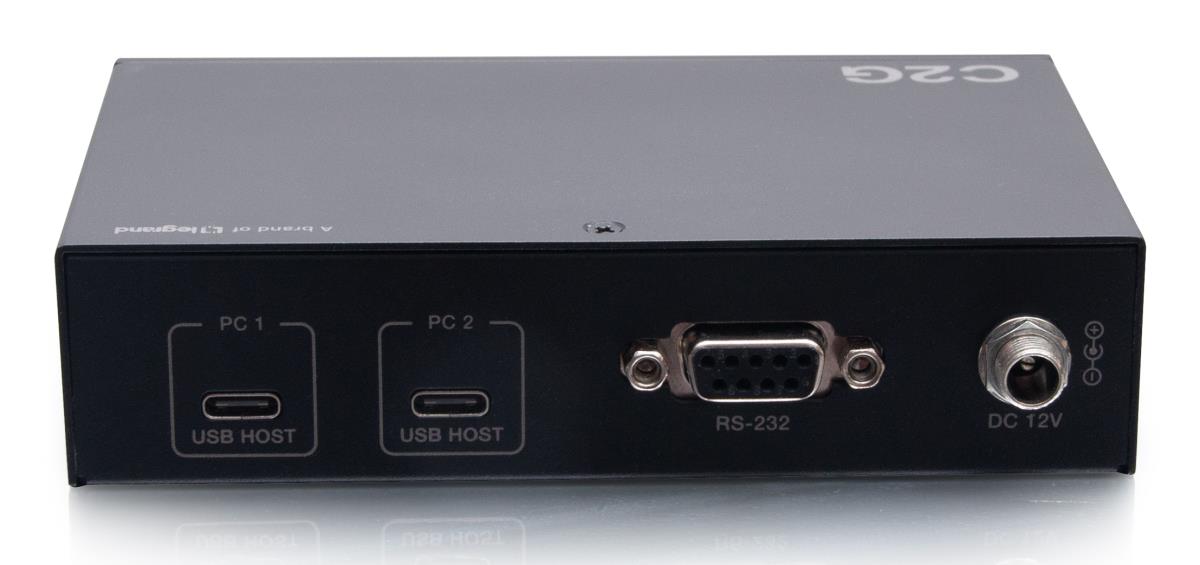

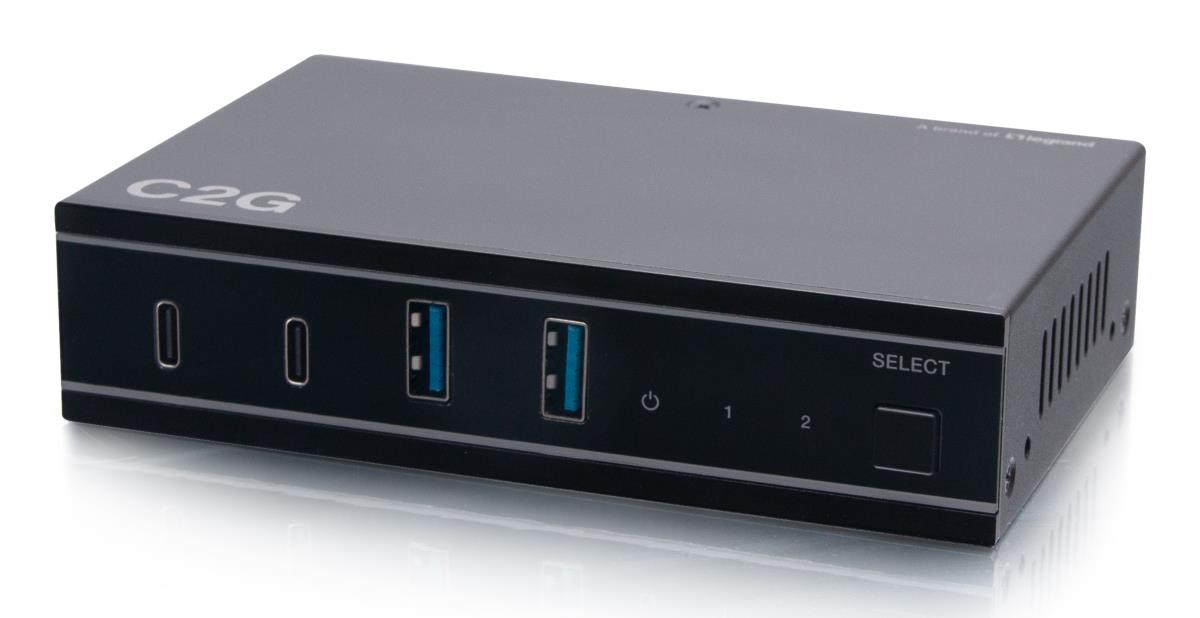

2X4 USB-C Switch with 2 USB-C inputs to 2 USB-C and 2 USB-A Device ports - USB 3.2 Gen 1 (5GBPS)
ITCurry #: 1842A370 | Article #: C2G54263
slide 2 of 4
Prijs:
157,97
Excl. btw
Levering in Benelux:
GRATIS Levering.
Nu niet op voorraad. Bel ons!
Verwante producten
slide 7 to 11 of 14
Product Informatie
For switching between two USB-C sources and two USB-C or USB-A devices, this device supports automatic switching by detecting a new source or manual switching via the front panel button or RS-232 API commands. It supports USB 3.2 Gen 1 with data transfer rates up to 5 Gbps and is compatible with a wide range of USB peripherals, including webcams, PTZ cameras, keyboards, mice, printers, displays, and more. This plug-and-play device is versatile and easy to use.
| Kenmerken | |
| Soort | AV-zender & ontvanger |
| RS-232-passthrough | Ja |
| LED-indicatoren | Stroom |
| Bandbreedte | 5 Gbit/s |
| Snoerlengte | 1,5 m |
| Aan/uitschakelaar | Ja |
| Materiaal | Aluminium |
| Soort bediening | Knoppen |
| Kleur van het product | Zwart |
| Poorten & interfaces | |
| Connectiviteitstechnologie | Bedraad |
| Aantal USB-aansluitingen | 2 |
| USB-versie | 3.2 Gen 1 (3.1 Gen 1) |
| USB-connectortype | USB Type-A, USB Type-C |
| Aantal poortenUSB 3.2 Gen 1 (3.1 Gen 1) Type C | 1 |
| Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 1 |
| Aansluiting voor netstroomadapter | Ja |
| Energie | |
| Type stroombron | AC |
| AC-ingangsspanning | 100-240 V |
| AC-ingangsfrequentie | 50-60 Hz |
| Stroom | 1.5 A |
| Bedrijfsspanning (zender) | 12 V |
| Output current | 3 A |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Temperatuur bij opslag | -20 - 60 øC |
| Gewicht en omvang | |
| Gewicht | 498 g |
| Receiver afmetingen (B x D x H) | 125 x 80 x 30 mm |
| Verpakking | |
| Aantal per verpakking | 1 stuk(s) |
| Gewicht verpakking | 640 g |
| Technische details | |
| Garantieperiode | 3 jaar |
| Certificaten van naleving | CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA |
| Warranty | |
| Base Warranty | Non Non |
