Product Informatie

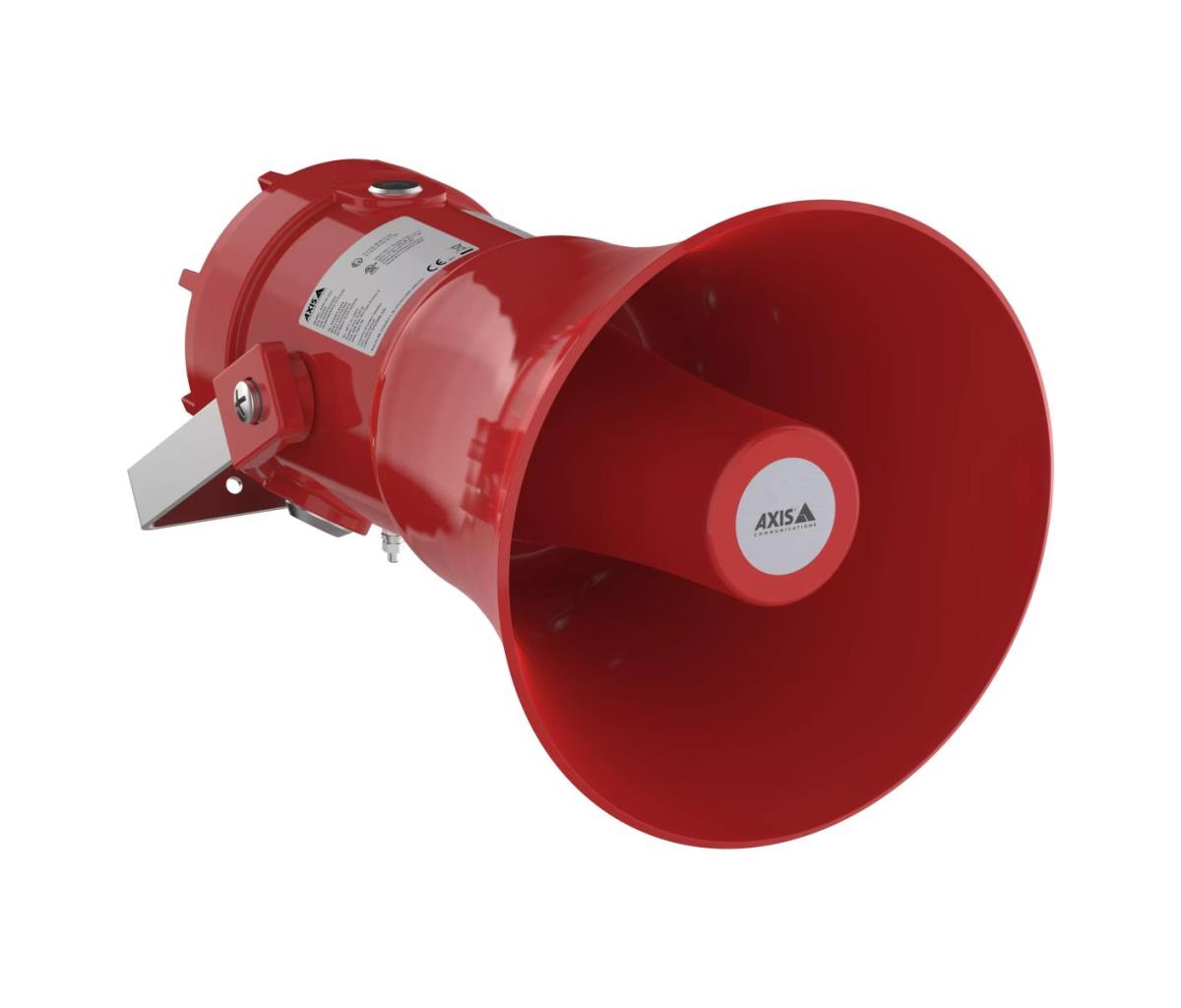

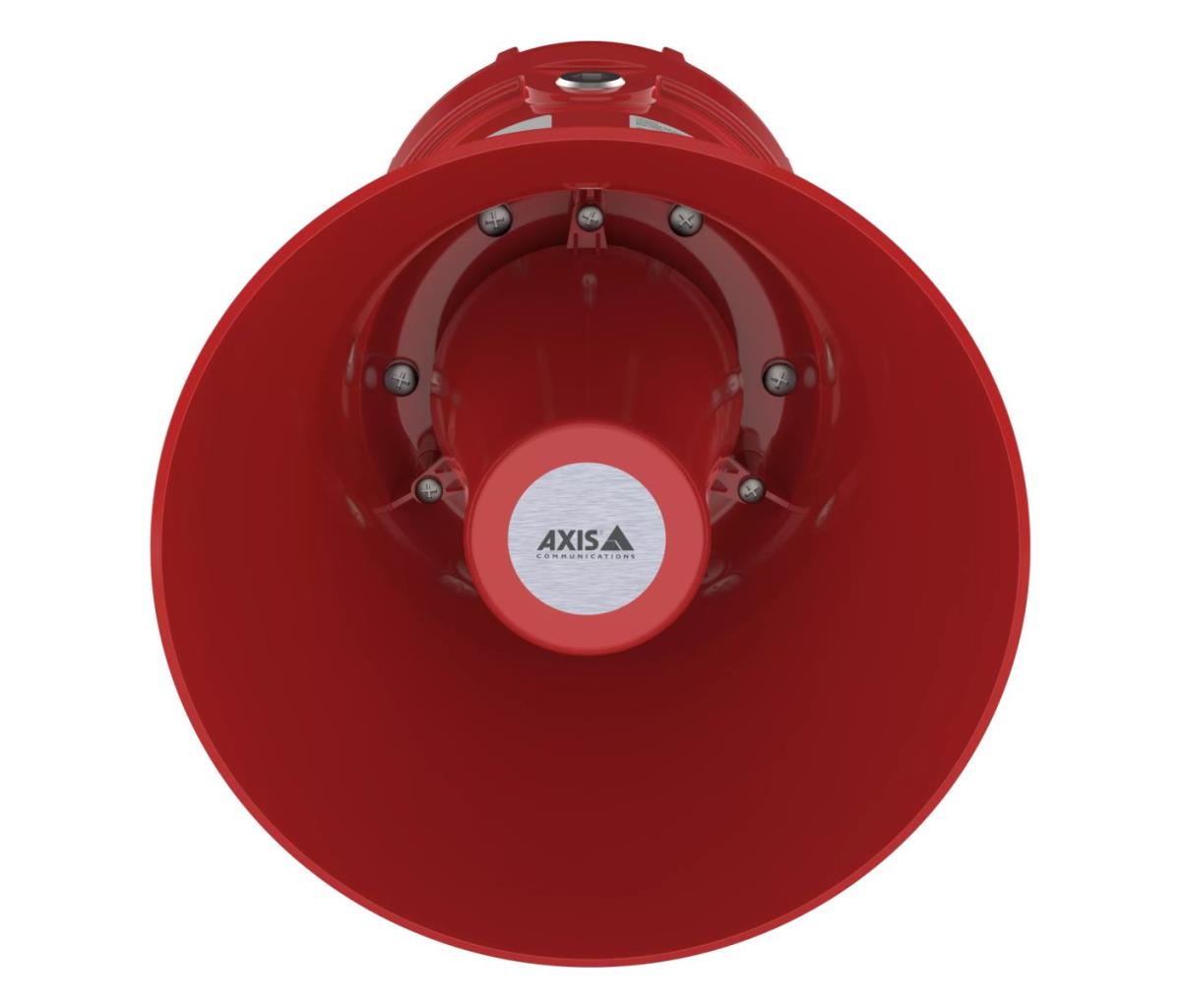

Certified for Zone 1/Division 1 hazardous areas, this all-in-one network speaker system enables clear, understandable voice messages to personnel. Easy to integrate, it offers a flexible, scalable, and cost-effective solution.
Clear audio to reach your personnel – everywhere
AXIS XC1311 makes it easy for you to get scheduled, event-triggered, and live voice messages to personnel in hazardous areas, improving their situational awareness when it counts. For example, whenever a camera with analytics detects smoke or missing personal protective equipment, this smart device can be automatically or manually triggered to play a prerecorded message. Or, in response to a system alert, a remote operator can issue live instructions directly to the scene. Messages come through loud and clear – even over long distances and in noisy industrial environments – thanks to the horn and built-in digital signal processing.
A smart solution
This all-in-one network audio device plugs into standard IP networks, enabling a flexible, scalable, and cost-effective approach to system design. It’s a stand-alone unit, so you don’t need any additional hardware or software. It integrates seamlessly with the rest of the Axis portfolio and – thanks to the Axis open platform – other systems, solutions, and platforms. Plus, you can monitor and manage it from anywhere. Built-in remote health testing means you won’t need to go on-site to know it’s working, and AXIS Audio Manager Edge comes preinstalled so you can remotely set and prioritize content, configure zones, and revise user permissions.
Easy to install and configure in hazardous areas
AXIS XC1311 is certified worldwide for use in hazardous areas (Class I Div 1, Zone 1 IIC), so it can be installed in potentially combustible environments* and withstand temperatures between -40 °C to 60 °C (-40 °F to 140 °F). This smart network horn speaker is easy to install. Because it uses Power over Ethernet (PoE), it connects to the closest network switch with a single cable for both power and connectivity – no additional cabling or hardware required. Additionally, the included bracket supports both wall and ceiling mounting. It’s also a snap to set up, thanks to the preinstalled audio management software and preconfigured sound quality.
* Certified for gas environments Class I Div 1 (Group ABCD), Class I Zone 1 IIC, Zone 1 IIC, and dust environments Zone 21 IIIC (worldwide)
Luidsprekers | |
Luidspreker soort | 1-weg |
Speaker plaatsing | Plafond-montage, Muur-montage |
Audio | |
Frequentiebereik | 400 - 5500 Hz |
Geluidsdruk niveau (max) | 110 dB |
Ondersteund audioformaat | AAC-LC, ADPCM, G.711, G.711 æ-law, G.726, MP3, PCM, WAV |
Prestatie | |
Aantal luidsprekers | 1 |
Kleur van het product | Rood |
Materiaal behuizing | Aluminium |
LED-indicatoren | Ja |
Internationale veiligheidscode (IP) | IP66, IP67 |
Geschikt voor buitengebruik | Ja |
Versterker | |
Versterker | Ingebouwd |
Versterker klasse | D |
Uitgangsvermogen versterker | 7 W |
Poorten & interfaces | |
Connectiviteitstechnologie | Bedraad |
Bluetooth | Nee |
Energie | |
Type stroombron | Power over Ethernet (PoE) |
Stroomverbruik (typisch) | 7 W |
Gewicht en omvang | |
Breedte | 220 mm |
Diepte | 335 mm |
Hoogte | 255 mm |
Gewicht | 4,22 kg |
Verpakking | |
Handleidingtalen | Vereenvoudigd Chinees, Traditioneel Chinees, Tsjechisch, Duits, Nederlands, Engels, Spaans, Fins, Frans, Italiaans, Japans, Koreaans, Pools, Portugees, Russisch, Zweeds, Thais, Turks |
Inhoud van de verpakking | |
Aantal per verpakking | 1 stuk(s) |
Snelstartgids | Ja |
Eisen aan de omgeving | |
Bedrijfstemperatuur (T-T) | -40 - 60 øC |
Temperatuur bij opslag | -40 - 65 øC |
Relatieve vochtigheid in bedrijf (V-V) | 10 - 90 procent |
Luchtvochtigheid bij opslag | 5 - 95 procent |
Duurzaamheid | |
Bevat geen | PVC |
Technische details | |
Garantieperiode | 5 jaar |
Certificaten van naleving | ATEX, Elektromagnetische compatibiliteit (EMC), Federal Communications Commission (FCC), IECEx, REACH, RoHS, Amerikaanse Federale wet inzake handelsovereenkomsten (TAA), cULus |
Overige specificaties | |
Aantal Ethernet LAN (RJ-45)-poorten | 1 |
Netwerkstandaard | IEEE 802.3af, IEEE 802.3at |
Veiligheidsfunties | Schokbestendig |
Stroomverbruik | 12,95 W |
Warranty | |
Base Warranty | Non Non |
