Product Informatie
Seamlessly convert Ethernet to fiber for long-distance surveillance. Supports daisy-chain connection, operates in -40°C to +75°C (-40°F to +167°F), and mounts on walls or DIN rails. Ideal for airports, city surveillance, and more.
Easy conversion and installation

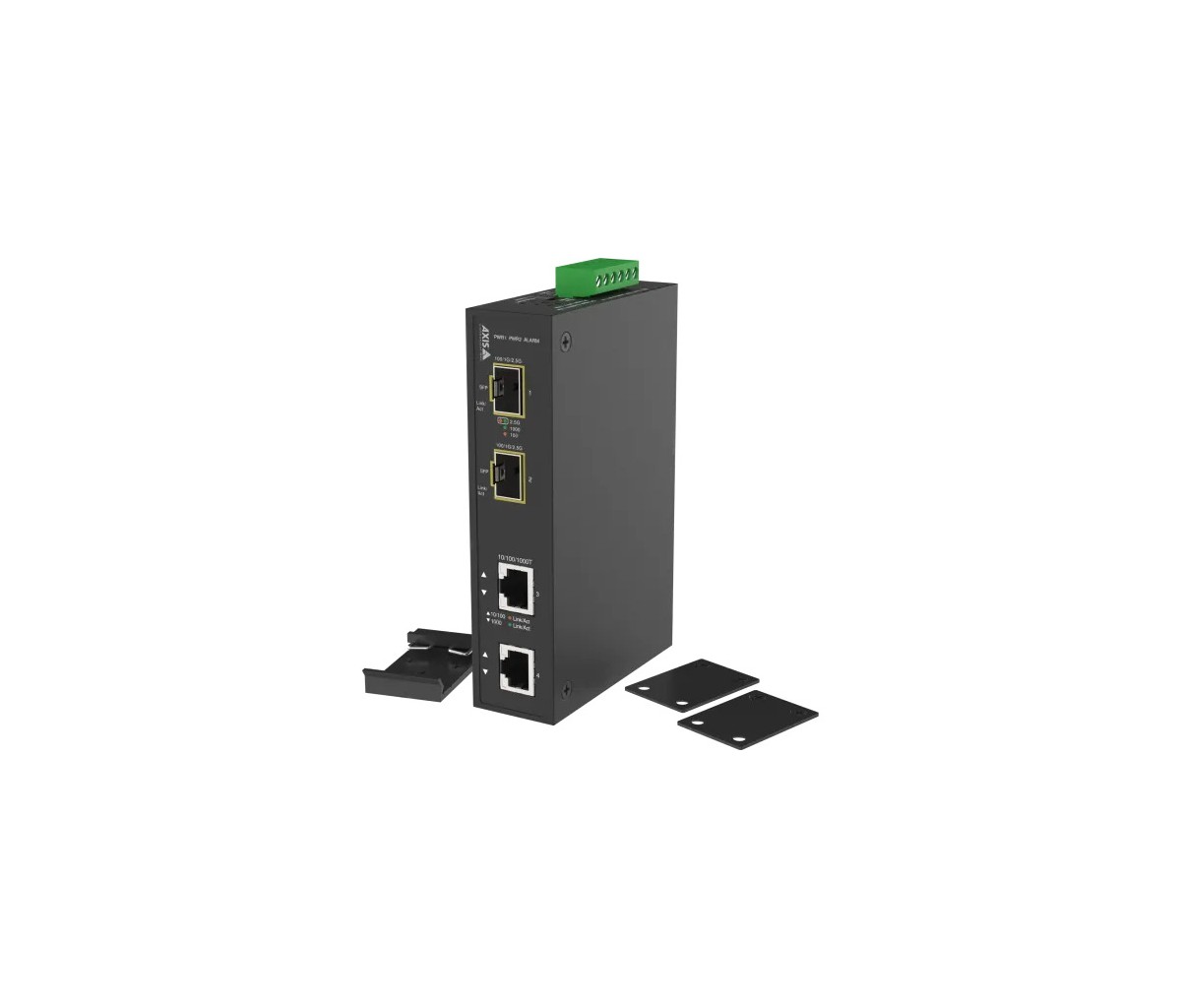

An Axis device connects to AXIS TU8008 via RJ45, and the two SFP slots allow installers to connect cameras to the network cost-effectively over long distances. The network ports can also be used for connections to additional cameras or temporarily to a laptop for local system service. Note that the Axis device requires an external power supply. AXIS TU8008 can be mounted either on a wall or on a DIN rail for flexible installation and operates reliably across a wide temperature range of -40°C to +75°C (-40°F to +167°F).
From Ethernet to optical fiber
The media converter can be connected to a daisy chain network. The maximum number of cameras that can be connected in the daisy chain depends on the generated bit rate per camera. The limitations are the link between the camera and media converter, and the link between the media converters.
For long-distance connections
Fiber optic connections are typically used in city surveillance, airports and other long-distance installations, where lightning strikes are a threat or great connection distances are required. Surveillance integrators in the field can also connect installation monitors and laptops to AXIS TU8008 for camera maintenance and control.
| Netwerk | |
| Converter input interface | 10Base-T, 100Base-T, 1000Base-T |
| Converter output interface | 100Base-X, 1000Base-X |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN, data-overdrachtsnelheden | 10,100,1000 Mbit/s |
| Kenmerken | |
| Intern | Nee |
| LED-indicatoren | Alarm, Stroom, Netwerk |
| Kleur van het product | Zwart |
| DIN rail bevestiging | Ja |
| Poorten & interfaces | |
| Connectiviteitstechnologie | Bedraad |
| Aantal Ethernet LAN (RJ-45)-poorten | 2 |
| Fibre channel-poorten | 2 |
| Vezel-optische connector | SFP |
| Energie | |
| Ingangsspanning | 12 - 48 V |
| Vermogensverbruik (max) | 4,92 W |
| Gewicht en omvang | |
| Gewicht | 419 g |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | -40 - 75 øC |
| Temperatuur bij opslag | -40 - 75 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 5 - 95 procent |
| Luchtvochtigheid bij opslag | 5 - 95 procent |
| Warranty | |
| Base Warranty | Non Non |
