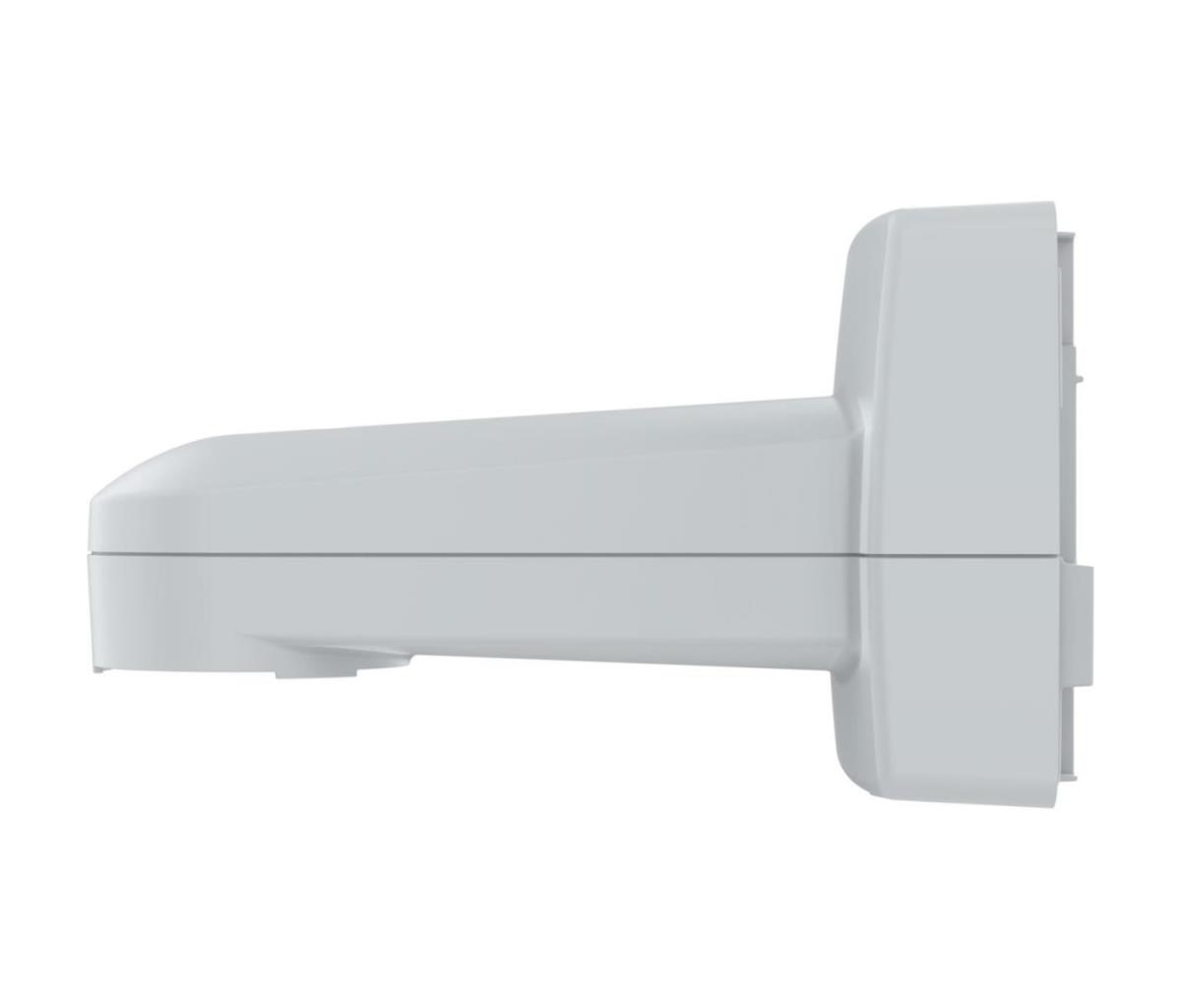

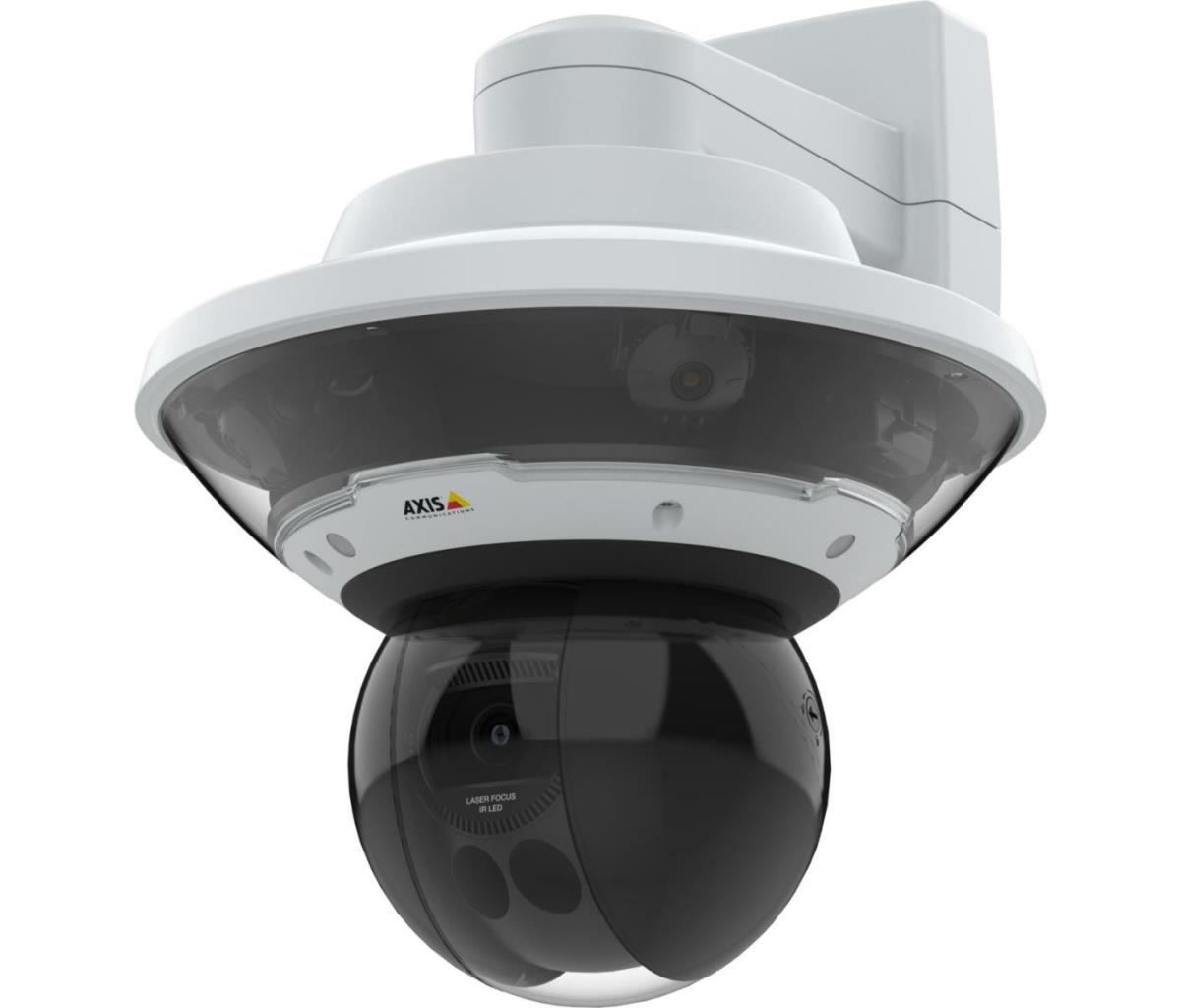

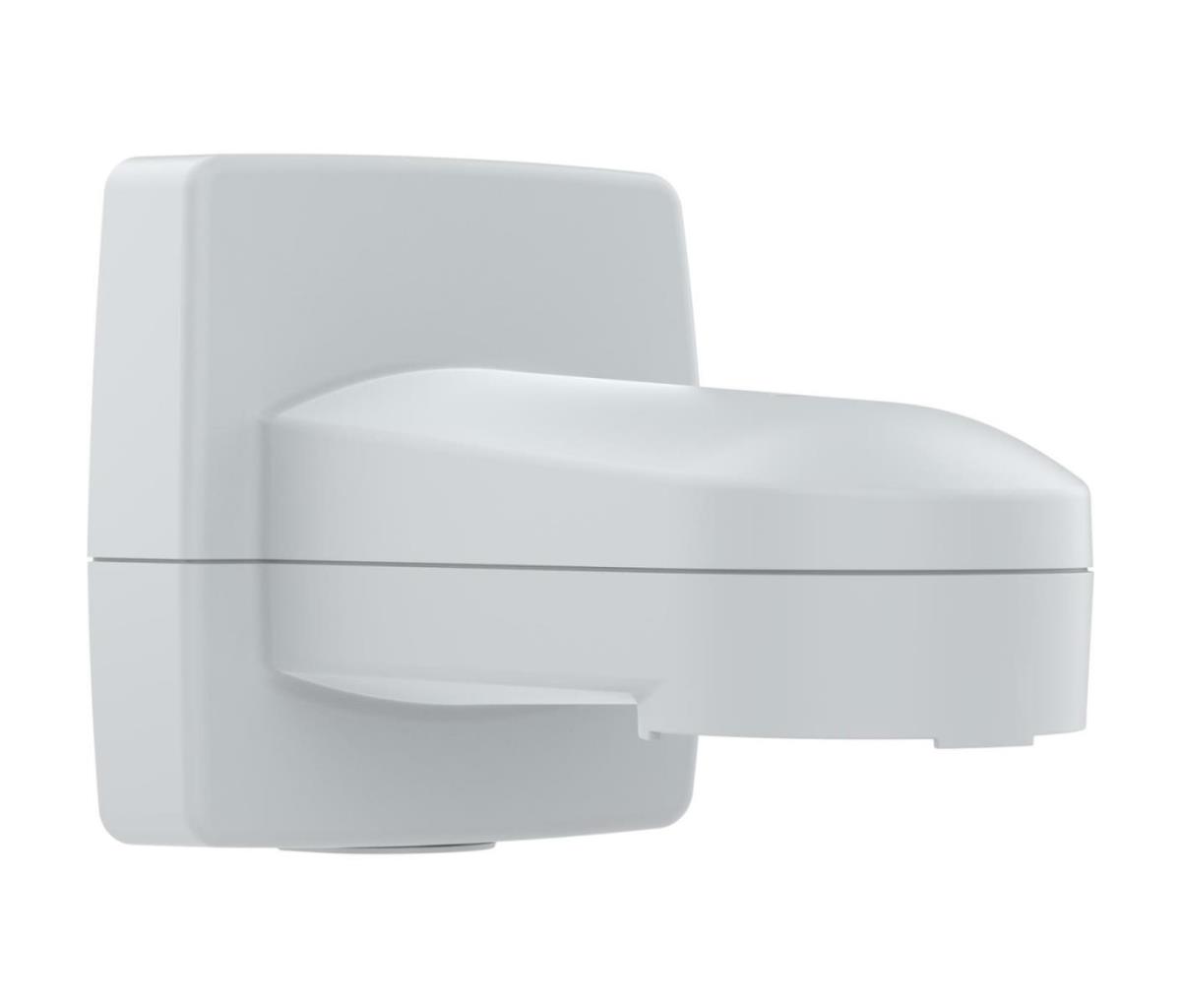

Designed for Axis PTZ cameras, AXIS TQ5001-E Wall-and-Pole Mount offers flexible installation and versatile connection with RJ45 or IDC connectors.
With this wall-and-pole mount, installers can choose between using an RJ45 or IDC (insulation-displacement contact) connector for the installation. It features a built-in cable with an ethernet IP66-rated RJ45 connector to facilitate installation and prevent water and dust from entering the camera. Made from impact-resistant, outdoor-ready material, AXIS TQ5001-E is suited for both indoor and outdoor environments. Flipping the mounting bracket makes it possible to turn AXIS TQ5001-E from a wall mount to a pole mount (AXIS Steel Straps TX30 are required). The mount is also suitable for corner mounting with an optional accessory.
| Kenmerken | |
| Soort | Support |
| Ondersteuning voor plaatsing | Universeel |
| Merkcompatibiliteit | Axis |
| Compatibiliteit | M5000 PTZ, M5000-G PTZ, M5525-E PTZ, M5526-E PTZ, P5654-E Mk II PTZ, P5655-E PTZ, P5676-LE PTZ, Q6010-E, Q6074 PTZ, Q6074-E PTZ, Q6075 PTZ, Q6075-E PTZ, Q6078-E PTZ, Q6100-E, Q6135-LE PTZ, Q6315-LE PTZ, Q6318-LE PTZ |
| Kleur van het product | Wit |
| Materiaal behuizing | Aluminium |
| Internationale veiligheidscode (IP) | IP66 |
| IK code | IK10 |
| Veiligheidsfunties | Stofafstotend, Schokbestendig, Waterbestendig |
| Certificering | CSA, UL/cUL, UKCA, CE, KC, VCCI, RCM, TAA |
| Gewicht en omvang | |
| Breedte | 152,6 mm |
| Diepte | 291,8 mm |
| Hoogte | 175,4 mm |
| Gewicht | 1,96 kg |
| Verpakking | |
| Aantal per verpakking | 1 stuk(s) |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | -50 - 65 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 100 procent |
| Temperatuur bij opslag | -40 - 65 øC |
| Luchtvochtigheid bij opslag | 10 - 100 procent |
| Technische details | |
| Bevat geen | PVC |
| Warranty | |
| Base Warranty | Non Non |
