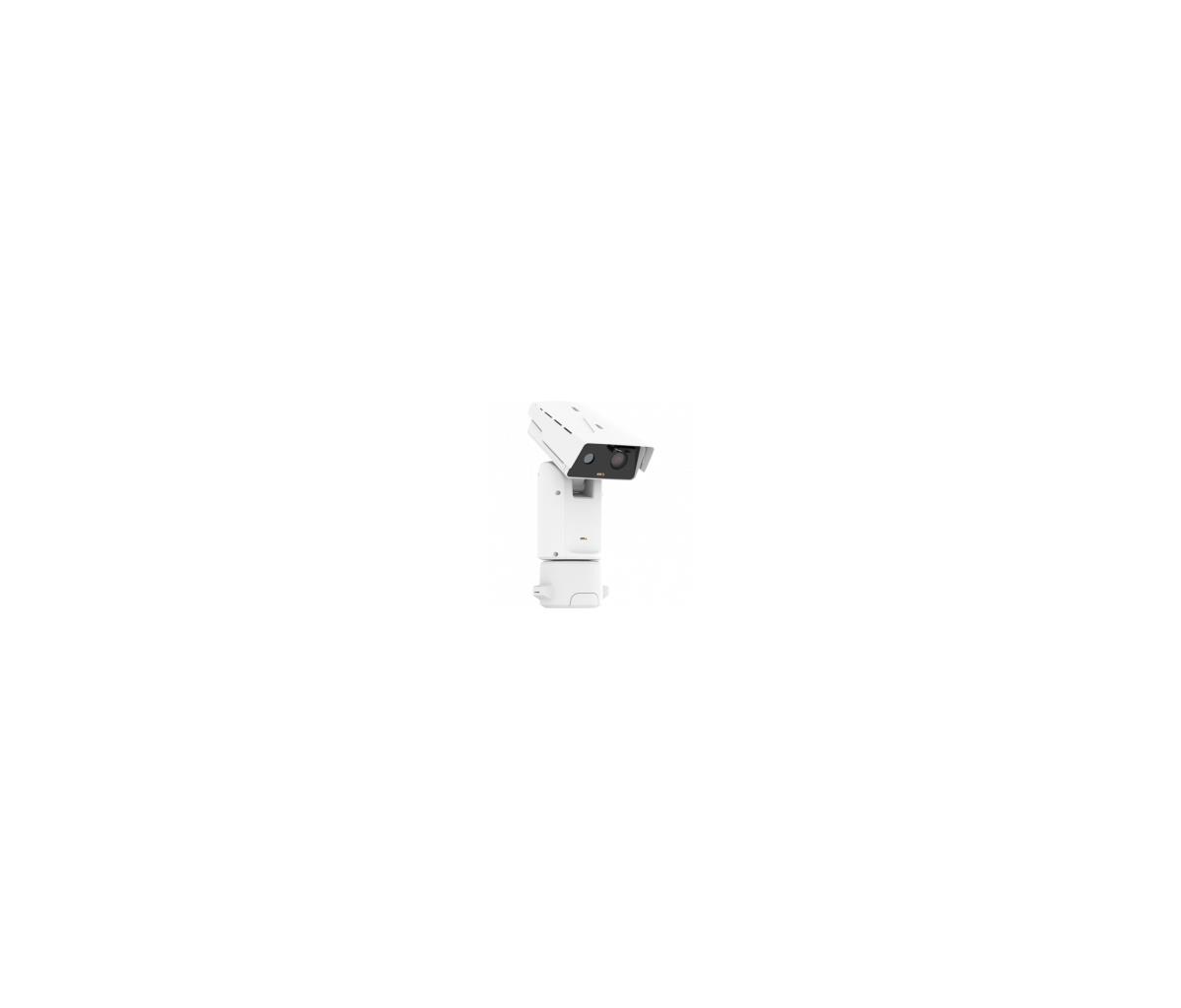

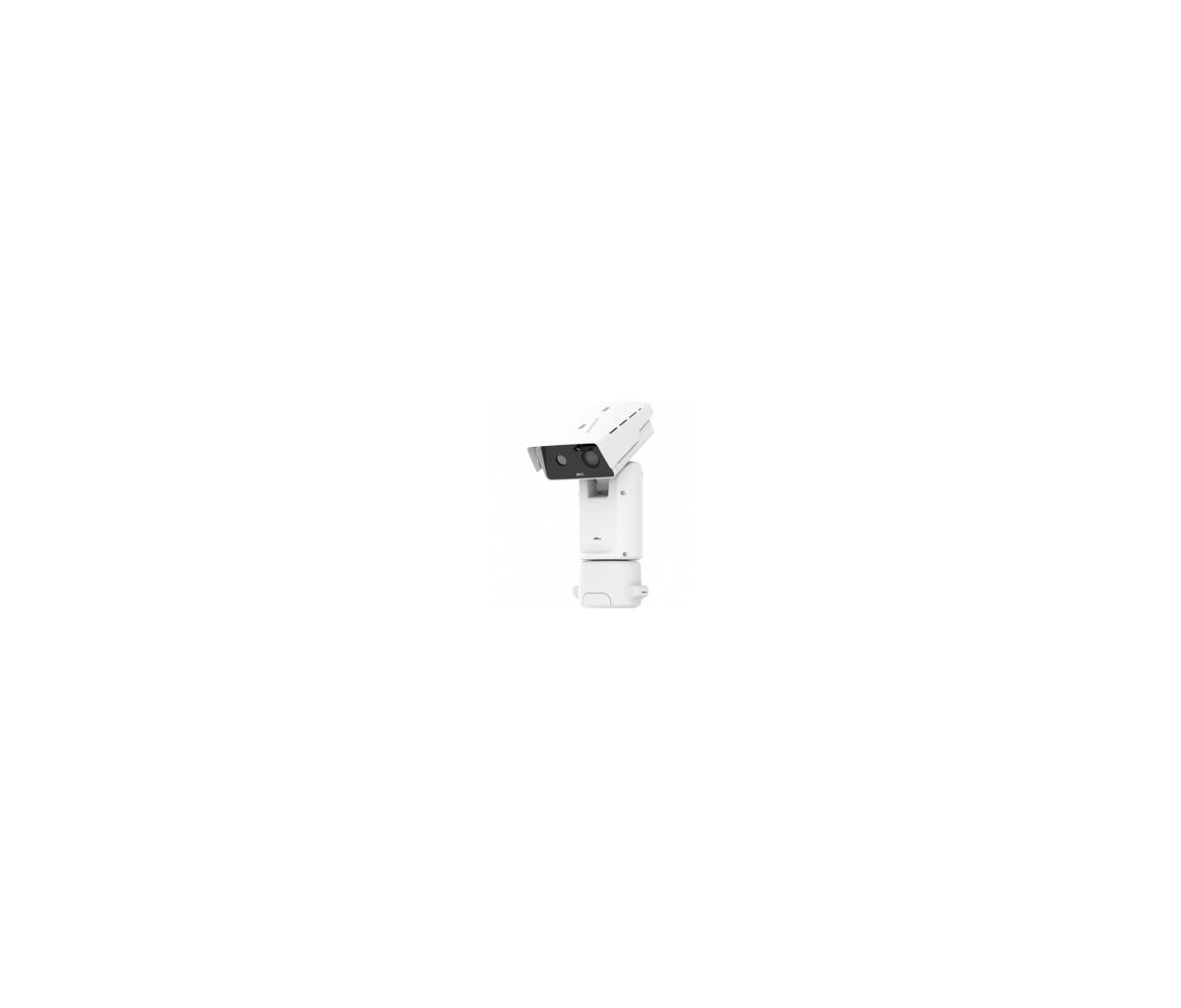

AXIS Q8741-E Network Camera is a positioning camera that brings a powerful – and cost effective – combination of visual and thermal video streams in a single PTZ camera to border surveillance and other applications with similar requirements.
A winning combination
AXIS Q8741-E gives you two excellent cameras in one: a thermal camera with outstanding contrast in 384x288 resolution for reliable detection and verification around-the-clock and in all weather and light conditions. And an exceptionally light-sensitive visual camera in HDTV 1080p with integrated 30x optical zoom for identification purposes.
The visual camera also has Wide Dynamic Range – Forensic Capture for clarity and detail in scenes with both dark and light areas. And Focus recall for instant focus in areas you define.
Swift, smooth 360° coverage
AXIS Q8741-E lets operators choose between really slow or super-fast pan (from 0.05 to 120 degrees per second) and tilt movement (from 0.05 to 65 degrees per second). So, they get smooth and jerk-free panoramic viewing when they need it and can respond quickly to events. The camera can be column-mounted, on poles or walls for a 360° panoramic view and a ground-to-sky view from -90° to +45°. It can withstand high winds when it’s standing still and winds of up to 37-meter per second (83 mph) when it’s in motion. And an SFP slot means it supports long-distance fiber-optic connection.
Single-unit savings
AXIS Q8741-E is a highly cost-effective solution. You need just one camera and one IP address to benefit from long-distance thermal detection, visual identification and PTZ capabilities. Which means lower purchase, installation and operational costs. In addition, Axis Zipstream technology reduces storage and bandwidth needs with up to 50% or more while ensuring that important details are captured in full image quality.
Fast and easy
Its slim design and many available accessories let you install it anywhere you want. It has an SFP slot, so it supports cost-effective, long-distance fiber-optic connection. And maintenance is made simple by a remote-control cleaning system that features long-life wipers. A 22 meter (72 feet) long, heavy-duty power cable is available as optional accessory. Designed for outdoor use, the cable has 3-wire, 12AWG and a jacket diameter of 10 mm (0.4 in).
| Prestatie | |
| Soort | CCTV-bewakingscamera |
| Ondersteuning voor plaatsing | Buiten |
| Connectiviteitstechnologie | Bedraad |
| PTZ control | Ja |
| Design | |
| Vormfactor | Doos |
| Montagewijze | Wand/paal |
| Kleur van het product | Wit |
| Internationale veiligheidscode (IP) | IP66 |
| Camera | |
| Minimale belichting | 0,02 Lux |
| Kijkhoek lens, horizontaal | 65.6ø |
| Kijkhoek lens, verticaal | 39ø |
| Bereik kantelhoek | -90 - 45ø |
| Draai-snelheid | 65 ø/sec |
| Pan bereik | 0 - 360ø |
| Pan snelheid | 120 ø/sec |
| Camera sluitertijd | 2 s |
| Beeldsensor | |
| Aantal sensoren | 1 |
| Omvang optische sensor | 25,4 / 2,8 mm (1 / 2.8") |
| Type beeldsensor | CMOS |
| Aantal effectieve pixels (H x V) | 384 x 288 Pixels |
| Lenssysteem | |
| Aantal lenzen | 1 |
| Lens diameter | 3,5 cm |
| Nachtkijker | |
| Nachtvisie | Ja |
| Video | |
| Maximum resolutie | 1920 x 1080 Pixels |
| Videocompressieformaten | H.264 |
| Maximaal 30 frames per seconde | 30 fps |
| Netwerk | |
| Ethernet LAN | Ja |
| Ethernet interface type | Gigabit Ethernet |
| Wifi | Nee |
| Bluetooth | Nee |
| Opslagmedia | |
| Ingebouwde HDD | Nee |
| Ge‹ntegreerde geheugenkaartlezer | Ja |
| Compatibele geheugenkaarten | MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD |
| Flash memory | 512 MB |
| Intern geheugen | 512 MB |
| Energie | |
| Type stroombron | AC, DC |
| AC-ingangsspanning | 24 V |
| Stroomverbruik (typisch) | 16 W |
| Vermogensverbruik (max) | 204 W |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | -50 - 55 øC |
| Temperatuur bij opslag | -40 - 70 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 100 procent |
| Gewicht en omvang | |
| Breedte | 245 mm |
| Diepte | 360 mm |
| Hoogte | 582 mm |
| Gewicht | 14,7 kg |
| Inhoud van de verpakking | |
| Aantal cameras | 1 |
| Warranty | |
| Base Warranty | Non Non |
