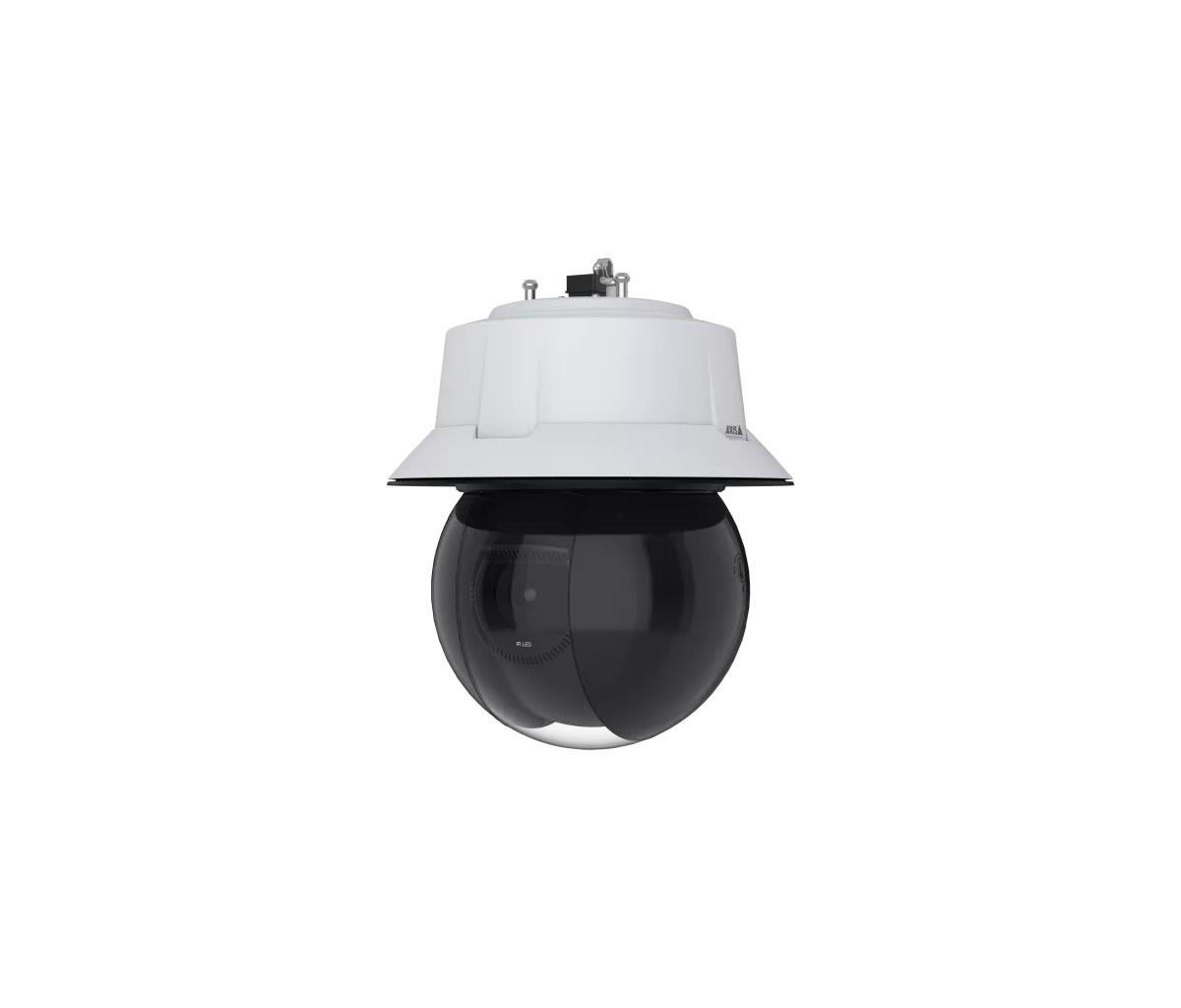

Q6325-le Ptz Camera
ITCurry #: 13836920 | Article #: 03313-001-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Experience exceptional image quality in all lighting conditions with this PTZ camera. Reuse existing mounting accessories for a cost-efficient upgrade to the latest AI-powered analytics and Axis technologies.
Superior surveillance in all light conditions
AXIS Q6325-LE offers outstanding 2 MP and features an extremely light-sensitive ½” sensor to deliver clear, bright images and better handling of shadows. Lightfinder 2.0 and Forensic WDR provide details even in challenging light conditions. Plus, OptimizedIR enables surveillance in total darkness. With 31x optical zoom, you can easily follow fast-moving objects. And Axis Zipstream, with support for AV1, H.264, and H.265, significantly lowers bandwidth and storage requirements. Dynamic power mode, together with low power profile, reduces power demands by up to 30% in certain temperature ranges. Furthermore, this camera offers support for audio with a midspan (sold separately) and four I/O ports.
AI-powered with advanced analytics
Built on ARTPEC-9, the latest Axis system-on-chip, this AI-based camera features a deep learning processing unit (DLPU) to run advanced features and powerful analytics on the edge. It also delivers valuable metadata, facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. For instance, it comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans, vehicles, and different types of vehicles. Autotracking 2 allows for active object tracking, and an orientation aid enables dynamic text overlays for quick orientation. In addition, chameleon masking safeguards privacy.
Robust with strong cybersecurity
AXIS Q6325-LE includes Axis?Edge?Vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access.?And it offers FIPS 140-3 Level 3 certified, secure cryptographic key storage and operations. This IP66-, IK10-, NEMA 4x, and NEMA TS2-rated device is both impact and weather-resistant. Furthermore, a midspan is available (sold separately) with support for fiber connection, PoE, audio, I/O, and smart restart, allowing for cost-effective installation and long-distance connection.
| Prestatie | |
| Soort | IP-beveiligingscamera |
| Ondersteuning voor plaatsing | Binnen & buiten |
| Connectiviteitstechnologie | Bedraad |
| PTZ control | Ja |
| PTZ-modi | Vooraf ingesteld punt |
| Tour opname | Ja |
| Vooraf ingestelde punten | Ja |
| Wide Dynamic Range (WDR) | Ja |
| Dag/nacht modus | Ja |
| Infrarood (IR)-afsluitingsfilter | Ja |
| Certificering | EMC EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, CISPR 35, EAC, EN 50121-4 Australia/New Zealand: RCM AS/NZS CISPR 32 Class A Canada: ICES-3(A)/NMB-3(A) Japan: VCCI Class A Korea: KS C 9835, KS C 9832 Class A USA: FCC Part 15 Subpart B Class A Railway: IEC 62236-4 IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, IEC/EN 62471 risk group 2, IEC 60825-1 Class 1 IEC/EN 62262 IK10, IEC/EN 60529 IP66, IEC/EN 60529 IP67, NEMA 250, Type 4X, NEMA TS 2 (2.2.7-2.2.9), IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, ISO 21207 (Method B), ISO 12944-6 C5 NIST SP500-267 ETSI EN 303 645, BSI IT Security Label, FIPS 140 |
| Design | |
| Vormfactor | Dome |
| Montagewijze | Plafond |
| Kleur van het product | Zwart, Wit |
| Materiaal behuizing | Aluminium |
| Veiligheidsfunties | Schokbestendig, Weerbestendig |
| Internationale veiligheidscode (IP) | IP66, IP67 |
| IK code | IK10 |
| Weerbestendig | Ja |
| Camera | |
| Minimale belichting | 0,008 Lux |
| Kijkhoek lens, horizontaal | 60.6ø |
| Kijkhoek lens, verticaal | 36.5ø |
| Bereik kantelhoek | -20 - 90ø |
| Draai-snelheid | 550 ø/sec |
| Pan bereik | 0 - 360ø |
| Pan snelheid | 550 ø/sec |
| Camera sluitertijd | 1/111000 - 1/2 s |
| Panorama-camera | |
| Signaal-ruisverhouding (SNR) (panorama-camera) | 55 dB |
| Beeldsensor | |
| Aantal sensoren | 1 |
| Omvang optische sensor | 25,4 / 2 mm (1 / 2") |
| Progressive scan | Ja |
| Type beeldsensor | CMOS |
| Lenssysteem | |
| Zoomcapaciteit | Ja |
| Optische zoom | 31x |
| Digitale zoom | 12x |
| Aantal lenzen | 1 |
| Zoomsnelheid | 1 s |
| Brandpuntbereik | 6.91 - 214.64 |
| Automatisch scherpstellen | Ja |
| Nachtkijker | |
| Nachtvisie | Ja |
| Nachtkijker afstand | 300 m |
| LED-type | IR |
| Infrarood wavelength | 850 nm |
| Video | |
| Maximum resolutie | 1920 x 1080 Pixels |
| Ondersteunde videoformaten | AVC, H.264, H.265, HEVC, M-JPEG, MPEG4 |
| Ondersteunde grafische resoluties | 320 x 180 |
| Maximaal 30 frames per seconde | 60 fps |
| Videostreaming | Ja |
| Aanpassing van de afbeeldingskwaliteit | Helderheid, Contrast, Scherpte |
| Tekstoverlay | Ja |
| Bitratecontrole | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Netwerk | |
| Ethernet LAN | Ja |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Netwerkstandaard | IEEE 802.1AE, IEEE 802.1x, IEEE 802.3bt |
| Ondersteunde netwerkprotocollen | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTCP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH, NTCIP, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| Opslagmedia | |
| Ge‹ntegreerde geheugenkaartlezer | Ja |
| Compatibele geheugenkaarten | SD, SDHC, SDXC |
| Flash memory | 8192 MB |
| Intern geheugen | 4096 MB |
| Poorten & interfaces | |
| Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| Beveiliging | |
| Ondersteunde beveiligingsalgoritmen | 256-bit AES-XTS, EAP-TLS, MSCHAPv2, PEAP |
| Systeemfuncties intelligente videobewaking (IVS) | Detectie van lijnoverschrijding, Moving object |
| Energie | |
| Stroomverbruik (typisch) | 13,7 W |
| Vermogensverbruik (max) | 51 W |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | -50 - 55 øC |
| Temperatuur bij opslag | -40 - 65 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 100 procent |
| Luchtvochtigheid bij opslag | 5 - 95 procent |
| Gewicht en omvang | |
| Breedte | 239 mm |
| Diepte | 239 mm |
| Hoogte | 291 mm |
| Gewicht | 4,4 kg |
| Duurzaamheid | |
| Certificaten van naleving | REACH, RoHS |
| Inhoud van de verpakking | |
| Aantal cameras | 1 |
| Overige specificaties | |
| Bevat geen | CFR, PVC/BFR |
| Warranty | |
| Base Warranty | Non Non |
