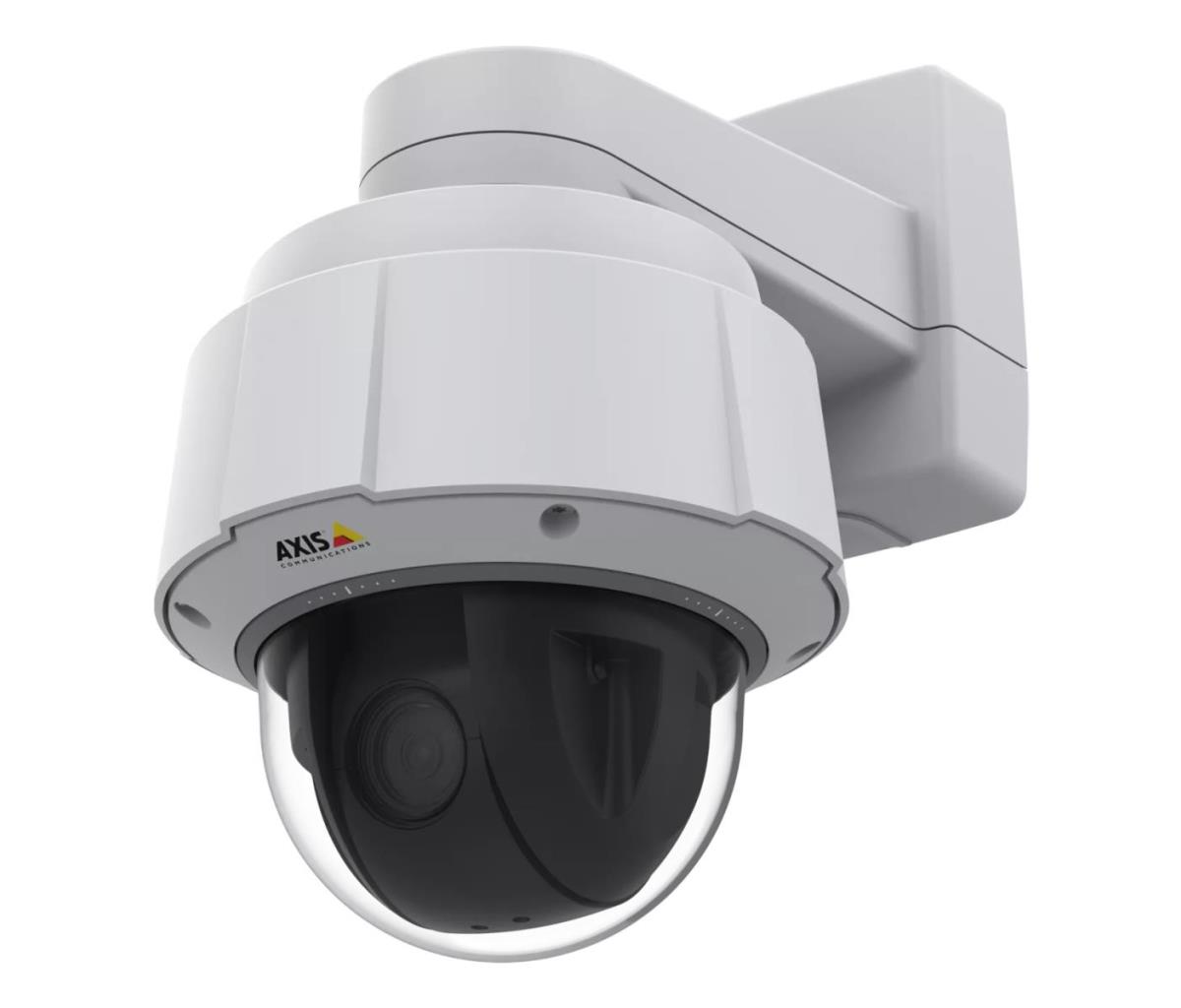

AXIS Q6074-E PTZ Network Camera
This robust, high-performance PTZ camera offers superior light-sensitivity for clear, sharp overviews and excellent details in demanding light conditions. It’s ideal for mission-critical surveillance in wide, outdoor areas such as cities, industrial and critical infrastructure applications. Featuring the new generation Axis chip, it includes enhanced security features such as signed firmware and secure boot.
Superior details in demanding light conditions
AXIS Q6074-E offers HDTV 720p resolution that delivers superior video quality and 30x optical zoom for excellent details. It features Axis Lightfinder 2.0 which captures low-light images with more saturated colors and sharper images of moving objects. And, Zipstream with support for H.264 and H.265 preserves all the important forensic detail you need, while significantly lowering bandwidth and storage requirements.
Whenever, wherever it’s needed
This high-performance outdoor PTZ camera with IP66/67, NEMA 4X, and IK10-ratings is protected from dust, rain, snow and impacts. Arctic temperature control ensures startup from a deeply frozen state and operation in temperatures ranging from -40 °C to 50 °C (-40 °F to 122 °F). Autotracking 2 with click and track functionality and an orientation aid allows for active object tracking and quick orientation. AXIS Q6075-E comes with AXIS Guard Suite analytics for detecting motion, intrusion and loitering. Furthermore, where privacy must be kept, privacy masking with mosaic lets you pixelate whole areas such as a neighboring property.
Keeping you secure
This high-performance camera is packed with advanced security functionality to prevent unauthorized access and safeguard your system. Signed firmware and secure boot guarantees that the firmware hasn’t been compromised and ensures only authorized firmware is installed. And if needed, secure boot guarantees the camera is completely free of malware after a factory default. For added peace of mind, it includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified. This module ensures secure storage of all cryptographic keys and certificates even in the event of a security breach.
| Prestatie | |
| Soort | IP-beveiligingscamera |
| Ondersteuning voor plaatsing | Binnen & buiten |
| Connectiviteitstechnologie | Bedraad |
| PTZ control | Ja |
| Auto-tracking | Ja |
| Tour opname | Ja |
| Vooraf ingestelde punten | Ja |
| Wide Dynamic Range (WDR) | Ja |
| Dag/nacht modus | Ja |
| Infrarood (IR)-afsluitingsfilter | Ja |
| Processormodel | ARTPEC-7 |
| Aantal talen | 11 |
| Ondersteunde talen | Vereenvoudigd Chinees, Traditioneel Chinees, Duits, Engels, Spaans, Frans, Italiaans, Japans, Koreaans, Portugees, Russisch |
| Design | |
| Vormfactor | Dome |
| Montagewijze | Muur |
| Kleur van het product | Zwart, Wit |
| Materiaal behuizing | Aluminium, Polycarbonaat (PC) |
| Internationale veiligheidscode (IP) | IP66, IP67 |
| IK code | IK10 |
| Mistbestendig | Ja |
| Camera | |
| Controle camerapanning | Ja |
| Kantelfunctie camera | Ja |
| Minimale belichting | 0,002 Lux |
| Kijkhoek lens, horizontaal | 63.8 - 2.6ø |
| Kijkhoek lens, verticaal | 38.0 - 1.47ø |
| Bereik kantelhoek | 0 - 220ø |
| Draai-snelheid | 450 ø/sec |
| Pan bereik | 0 - 360ø |
| Pan snelheid | 450 ø/sec |
| Camera sluitertijd | 1/11000 - 1/3 s |
| Beeldsensor | |
| Aantal sensoren | 1 |
| Omvang optische sensor | 25,4 / 2,8 mm (1 / 2.8") |
| Progressive scan | Ja |
| Type beeldsensor | CMOS |
| Lenssysteem | |
| Zoomcapaciteit | Ja |
| Optische zoom | 30x |
| Digitale zoom | 12x |
| Aantal lenzen | 1 |
| Brandpuntbereik | 4.25 - 127.5 mm |
| Automatisch scherpstellen | Ja |
| Maximum aperture number | 4,2 |
| Minimum aperture number | 1,6 |
| Nachtkijker | |
| Nachtvisie | Ja |
| Video | |
| Maximum resolutie | 1280 x 720 Pixels |
| Videocompressieformaten | AVC, H.264, H.265, HEVC, M-JPEG, MPEG4 |
| Ondersteunde grafische resoluties | 320 x 180, 1280 x 720 (HD 720) |
| Ondersteunde video-modi | 720p |
| Video recording | Ja |
| Maximaal 30 frames per seconde | 60 fps |
| Videostreaming | Ja |
| Aanpassing van de afbeeldingskwaliteit | Helderheid, Kleurdiepte, Scherpte |
| Priv‚zone maskeren | Ja |
| Tekstoverlay | Ja |
| Bitratecontrole | Variabele bitsnelheid (VBR) |
| Netwerk | |
| Ethernet LAN | Ja |
| Ethernet interface type | Fast Ethernet |
| Netwerkstandaard | IEEE 802.1x, IEEE 802.3at |
| Ondersteunde netwerkprotocollen | IPv4, IPv6 USGv6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, NTCIP, LLDP |
| Wifi | Nee |
| Bluetooth | Nee |
| Quality of Service (QoS) | Ja |
| Opslagmedia | |
| Ingebouwde HDD | Nee |
| Ge‹ntegreerde geheugenkaartlezer | Ja |
| Compatibele geheugenkaarten | SD, SDHC, SDXC |
| Flash memory | 512 MB |
| Intern geheugen | 1024 MB |
| Poorten & interfaces | |
| Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| Beveiliging | |
| Wachtwoordbeveiliging | Ja |
| Video bewegings-detectie | Ja |
| IP-adresfilter | Ja |
| HTTPS-encryptie | Ja |
| Type waarschuwingsnotificatie | |
| Energie | |
| Type stroombron | AC, Power over Ethernet (PoE) |
| AC-ingangsspanning | 100 - 240 V |
| Stroomverbruik (typisch) | 14 W |
| Vermogensverbruik (max) | 66,1 W |
| Stroomverbruik (voeding via Ethernet (PoE)) | 60 W |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | -20 - 50 øC |
| Temperatuur bij opslag | -40 - 65 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 100 procent |
| Luchtvochtigheid bij opslag | 5 - 95 procent |
| Gewicht en omvang | |
| Hoogte | 271 mm |
| Diameter | 23,2 cm |
| Gewicht | 3,75 kg |
| Inhoud van de verpakking | |
| Aantal cameras | 1 |
| Gebruikershandleiding | Ja |
| Overige specificaties | |
| Bevat geen | PVC |
| Garantieperiode | 5 jaar |
| Warranty | |
| Base Warranty | Non Non |
