Product Informatie

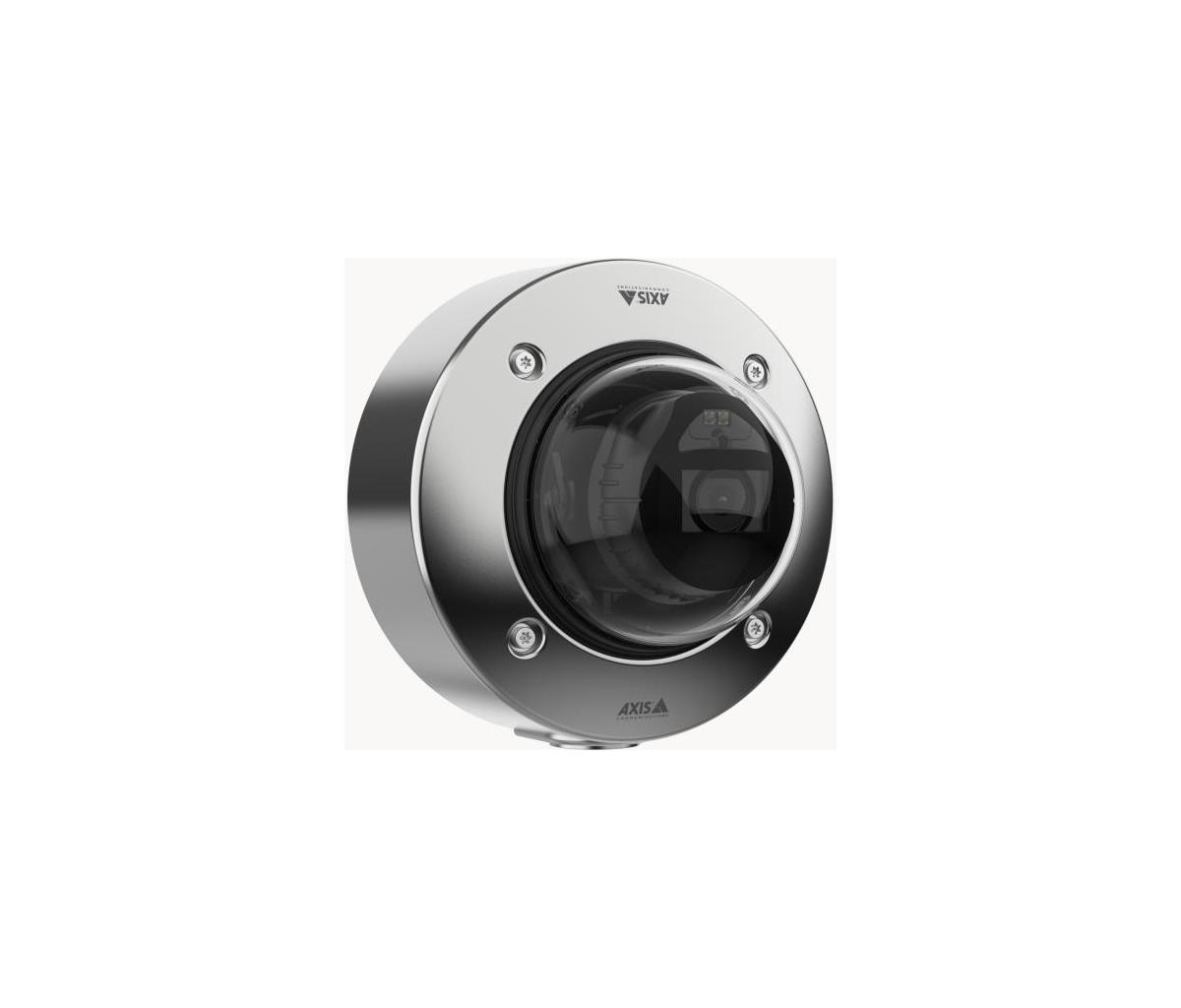

Certified for use in food processing facilities, this robust camera is enclosed in an marine-grade stainless steel (SS 316L) casing. It offers excellent image quality in 4K and supports advanced analytics based on deep learning on the edge.
Maintenance-friendly and robust
Enclosed in an electropolished, marine-grade stainless steel (SS 316L) casing, DNV-certified, this robust camera can withstand the corrosive effects of seawater as well as cleaning chemicals. Easy to clean and maintain, it’s certified by NSF/ANSI to Standard 169 (Special Purpose Food Equipment and Devices) for use in food processing facilities. Furthermore, this IK11-, NEMA 4X-, and IP66/67/68-rated camera is both weather-proof and impact-resistant. And it can withstand extreme temperatures between -40 °C to 50 °C (-40 °F to 122 °F).
Excellent image quality
AXIS P3268-SLVE delivers excellent image quality and forensic details in 8 MP at up to 30 fps. Plus, it offers a wide field of view of up to 100°. Thanks to Lightfinder 2.0 and Forensic WDR, you’ll enjoy true colors and great detail in challenging light or near darkness. And OptimizedIR ensures sharp, clear footage in complete darkness up to 40 m (130 ft) without the need for extra lighting.
Deep learning analytics on the edge
Built on ARTPEC-8, the latest Axis system-on-chip (SoC), this high-performance camera includes a deep learning processing unit (DLPU). This enables improved processing and storage capabilities allowing you to collect and analyze even more data than before—on the edge. Additionally, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge. Furthermore, it includes Axis Edge Vault, a hardware-based cybersecurity platform that guarantees the device’s integrity and protects it from unauthorized access.
| Prestatie | |
| Soort | IP-beveiligingscamera |
| Ondersteuning voor plaatsing | Binnen |
| Connectiviteitstechnologie | Bedraad |
| PTZ control | Ja |
| Vooraf ingestelde punten | Ja |
| Wide Dynamic Range (WDR) | Ja |
| Dag/nacht modus | Ja |
| Infrarood (IR)-afsluitingsfilter | Ja |
| Processormodel | ARTPEC-8 |
| Type processor | Ja |
| Design | |
| Vormfactor | Dome |
| Montagewijze | Plafond/muur |
| Kleur van het product | Zwart, Zilver |
| Materiaal behuizing | Polycarbonaat (PC), Roestvrijstaal |
| Internationale veiligheidscode (IP) | IP66, IP67, IP68 |
| Camera | |
| Controle camerapanning | Ja |
| Kantelfunctie camera | Ja |
| Minimale belichting | 0 Lux |
| Draaihoek | 380ø |
| Bereik kantelhoek | -10 - 80ø |
| Pan bereik | -190 - 190ø |
| Type camerasluiter | Elektronisch |
| Camera sluitertijd | 1/8500 s |
| Beeldsensor | |
| Aantal sensoren | 1 |
| Omvang optische sensor | 25,4 / 1,8 mm (1 / 1.8") |
| Progressive scan | Ja |
| Type beeldsensor | CMOS |
| Lenssysteem | |
| Zoomcapaciteit | Ja |
| Aantal lenzen | 1 |
| Brandpuntbereik | 4.3 - 8.6 mm |
| Dichtstbijzijnde focus afstand | 0,5 m |
| Nachtkijker | |
| Nachtvisie | Ja |
| Nachtkijker afstand | 40 m |
| LED-type | IR |
| Infrarood wavelength | 850 nm |
| Video | |
| Maximum resolutie | 3840 x 2160 Pixels |
| Totaal aantal megapixels | 8 MP |
| Ondersteunde videoformaten | MPEG4 |
| Videocompressieformaten | H.264, H.265, M-JPEG |
| Maximaal 30 frames per seconde | 30 fps |
| Videostreaming | Ja |
| Type sterkteregeling | Auto |
| Aanpassing van de afbeeldingskwaliteit | Helderheid, Contrast, Spiegel, Verzadiging, Scherpte |
| Tekstoverlay | Ja |
| Audio | |
| Audiosysteem | 2-weg |
| Ondersteund audioformaat | AAC-LC, G.711, G.726, LPCM |
| Netwerk | |
| Ethernet LAN | Ja |
| Ethernet interface type | Fast Ethernet |
| Netwerkstandaard | IEEE 802.3af, IEEE 802.3at |
| Ondersteunde netwerkprotocollen | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP© , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH, SIP, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf) |
| Wifi | Nee |
| Bluetooth | Nee |
| Opslagmedia | |
| Ingebouwde HDD | Nee |
| Ge‹ntegreerde geheugenkaartlezer | Ja |
| Compatibele geheugenkaarten | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 8192 MB |
| RAM-capaciteit | 2048 MB |
| Poorten & interfaces | |
| Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| Microfoon, line-in ingang | Ja |
| Beveiliging | |
| IP-adresfilter | Ja |
| Ondersteunde beveiligingsalgoritmen | EAP-TLS, HTTPS |
| Beheerfuncties | |
| Web-gebaseerd management | Ja |
| Op afstand bedienbaar | Ja |
| Energie | |
| Type stroombron | Power over Ethernet (PoE) |
| Stroomverbruik (typisch) | 5,5 W |
| Vermogensverbruik (max) | 11,2 W |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | -40 - 50 øC |
| Temperatuur bij opslag | -40 - 65 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 100 procent |
| Luchtvochtigheid bij opslag | 5 - 95 procent |
| Gewicht en omvang | |
| Hoogte | 112 mm |
| Diameter | 16,6 cm |
| Gewicht | 1,76 kg |
| Duurzaamheid | |
| Certificaten van naleving | BIS, CE, KC, NSF, RCM, Amerikaanse Federale wet inzake handelsovereenkomsten (TAA), UKCA, UL, VCCI, WEEE, cUL |
| Inhoud van de verpakking | |
| Aantal cameras | 1 |
| Inclusief schroeven | Ja |
| Gebruikershandleiding | Ja |
| Warranty | |
| Base Warranty | Non Non |
