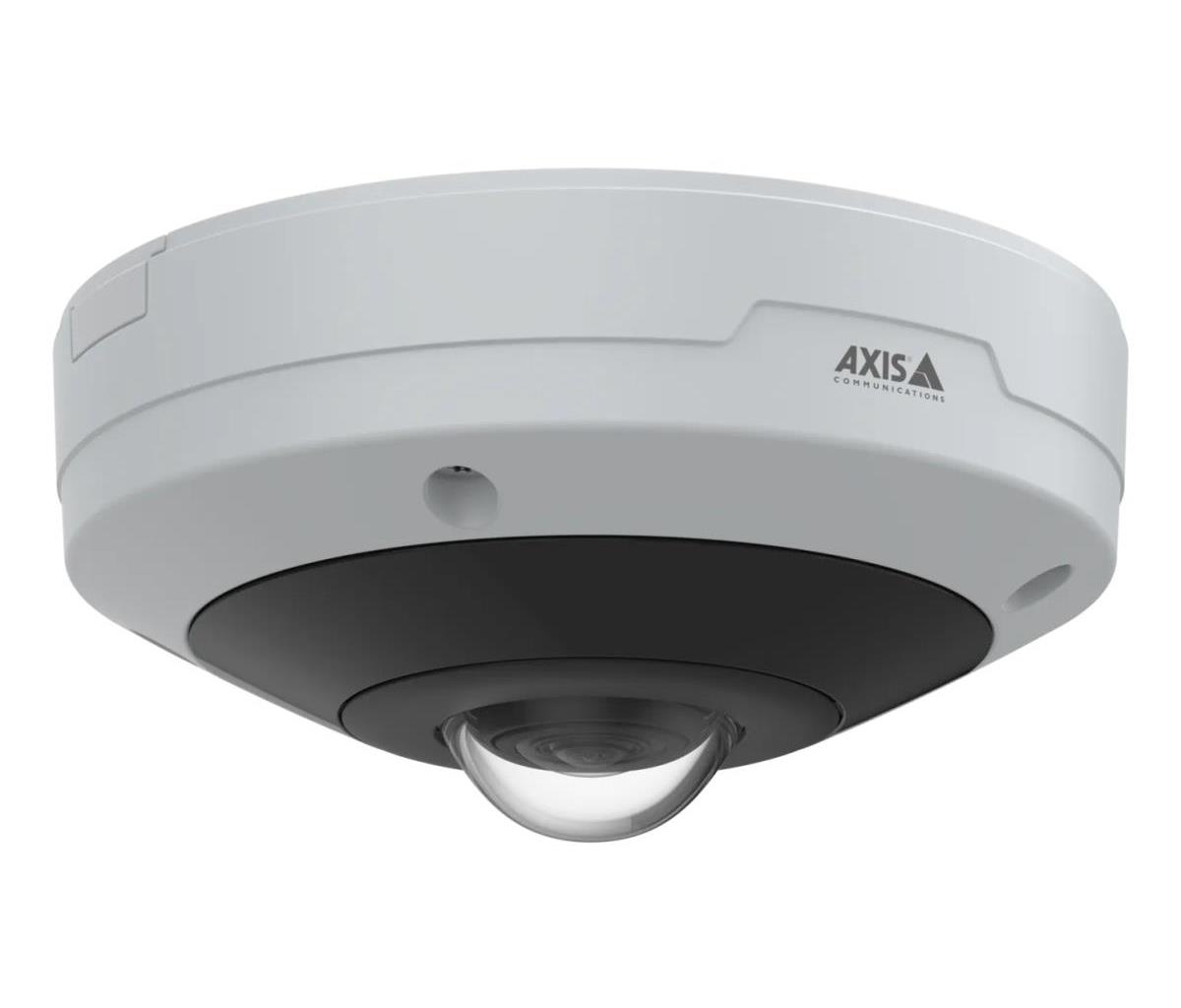

M4348-plve Panoramic Camera
ITCurry #: 13836984 | Article #: 03133-001-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
This AI-powered camera uses the latest sensor technology to provide high-quality image resolution 24/7. It includes camera-side dewarped views. And with AXIS Audio Analytics, you’ll know whenever something relevant happens, even when there's no visual indication.
Sharp images with great details
Using the latest sensor technology, AXIS M4348-PLVE offers 30% higher resolution than previous generations, reaching up to 3536x3536 pixels. Stereographic lens and Sharpdome 360 deliver outstanding image sharpness towards the edges and excellent corner image quality. It offers complete 180° or 360° coverage with no blind spots. Day/night functionality and built-in IR illumination ensure clear, reflection-free footage and excellent images even in low light or complete darkness. It supports up to four digital PTZ views, as well as panoramic, quad, corner, and corridor dewarped views. Furthermore, Axis Zipstream with AV1, H.264, and H.265 significantly reduces bandwidth and storage requirements.
Powerful video and audio analytics
This AI-based camera comes with AXIS Object Analytics preinstalled to detect, classify, track, and count objects. Now combined with ARTPEC-9, this application offers enhanced performance with greater accuracy. Plus, AI models are specifically trained for 360° fisheye views to ensure optimized performance. With built-in microphones and AXIS Audio Analytics preinstalled, it can detect critical sounds such as glass breaking, screams, and shouts, and measure noise pollution. Plus, directional audio detection provides the direction of the audio source and a visual overlay showing exactly where the sound is coming from.
Secure and easy- indoors and out
AXIS M4348-PLVE includes Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and offers FIPS 140-3 Level 3 certified secure key storage and operations. With digital roll functionality, you can remotely adjust the rotation of the camera overview– no need to do it manually on each camera. It’s also delivered factory-focused for ease of installation. And it’s discreet, compact, flat design blends seamlessly into any environment. What’s more, this robust, IK10-, IP66-, and NEMA 4X-rated outdoor-ready camera is both vandal- and impact-resistant and has an operating temperature range from -40°C to 50 °C (-40°F to 122°F).
| Prestatie | |
| Soort | IP-beveiligingscamera |
| Ondersteuning voor plaatsing | Binnen & buiten |
| Connectiviteitstechnologie | Bedraad |
| PTZ control | Ja |
| PTZ-modi | Vooraf ingesteld punt, Digitale PTZ |
| Vooraf ingestelde punten | Ja |
| Wide Dynamic Range (WDR) | Ja |
| Dag/nacht modus | Ja |
| Infrarood (IR)-afsluitingsfilter | Ja |
| Processormodel | ARTPEC-9 |
| Aantal talen | 19 |
| Ondersteunde talen | Engels, Duits, Frans, Spaans, Italiaans, Russisch, Vereenvoudigd Chinees, Japans, Koreaans, Portugees, Pools, Traditioneel Chinees, Nederlands, Tsjechisch, Zweeds, Fins, Turks, Thais, Vietnamees |
| Dynamisch bereik | 120 dB |
| Design | |
| Vormfactor | Dome |
| Montagewijze | Plafond/muur |
| Kleur van het product | Wit |
| Materiaal behuizing | Polycarbonaat (PC), Aluminium |
| Internationale veiligheidscode (IP) | IP66 |
| IK code | IK10 |
| Camera | |
| Minimale belichting | 0 Lux |
| Kijkhoek lens, horizontaal | 185ø |
| Kijkhoek lens, verticaal | 185ø |
| Pixelgrootte camera | 2 æm |
| Camera sluitertijd | 1/111000 - 2 s |
| Beeldsensor | |
| Aantal sensoren | 1 |
| Omvang optische sensor | 25,4 / 1,6 mm (1 / 1.6") |
| Progressive scan | Ja |
| Type beeldsensor | CMOS |
| Lenssysteem | |
| Aantal lenzen | 1 |
| Maximum aperture number | 2 |
| Vaste focale lengte | 1,7 mm |
| Dichtstbijzijnde focus afstand | 0,1 m |
| Nachtkijker | |
| Nachtvisie | Ja |
| Nachtkijker afstand | 20 m |
| LED-type | IR |
| Infrarood wavelength | 850 nm |
| Video | |
| Maximum resolutie | 3536 x 3536 Pixels |
| Totaal aantal megapixels | 12 MP |
| Videocompressieformaten | H.264, MPEG4, H.265, M-JPEG, AV1 |
| Maximaal 30 frames per seconde | 30 fps |
| Videostreaming | Ja |
| Type sterkteregeling | Auto |
| Aanpassing van de afbeeldingskwaliteit | Verzadiging, Contrast, Helderheid, White balance, Spiegel |
| Priv‚zone maskeren | Ja |
| Bitratecontrole | Variabele bitsnelheid (VBR) |
| Audio | |
| Ingebouwde luidsprekers | Ja |
| Ondersteund audioformaat | LPCM, AAC, AAC-LC, G.711, G.726, OPUS |
| Signaal/ruis-verhouding | 55 dB |
| Ingebouwde microfoon | Ja |
| Netwerk | |
| Ethernet LAN | Ja |
| Ethernet interface type | Gigabit Ethernet, Fast Ethernet |
| Netwerkstandaard | IEEE 802.1x, IEEE 802.1AE, IEEE 802.3at |
| Ondersteunde netwerkprotocollen | Pv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, PTP, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| Wifi | Nee |
| Bluetooth | Nee |
| Opslagmedia | |
| Ingebouwde HDD | Nee |
| Ge‹ntegreerde geheugenkaartlezer | Ja |
| Compatibele geheugenkaarten | MicroSD (TransFlash), MicroSDXC, MicroSDHC |
| Flash memory | 8000 MB |
| Intern geheugen | 4000 MB |
| Poorten & interfaces | |
| Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| Klemmenblokpoort | Ja |
| Beveiliging | |
| Ondersteunde beveiligingsalgoritmen | FIPS 140-2, FIPS 140-3, AES, 802.1x RADIUS, EAP-TLS, PEAP, MSCHAPv2, HTTPS, TLS |
| Privacybescherming | Ja |
| Beheerfuncties | |
| Web-gebaseerd management | Ja |
| Cloud-beheerd | Ja |
| Energie | |
| Type stroombron | Power over Ethernet (PoE), DC |
| Stroomverbruik (typisch) | 7,1 W |
| Vermogensverbruik (max) | 16,7 W |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | -40 - 50 øC |
| Temperatuur bij opslag | -40 - 65 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 100 procent |
| Luchtvochtigheid bij opslag | 5 - 95 procent |
| Gewicht en omvang | |
| Hoogte | 70 mm |
| Diameter | 14,9 cm |
| Gewicht | 880 g |
| Duurzaamheid | |
| Certificaten van naleving | Federal Communications Commission (FCC), cUL, UL, CE, KC, RCM, VCCI, Elektromagnetische compatibiliteit (EMC), ICES, RoHS, REACH |
| Inhoud van de verpakking | |
| Aantal cameras | 1 |
| Overige specificaties | |
| Bevat geen | PVC, Brominated Flame Retardant (BFR), CFR |
| Technische details | |
| Iris | Ja |
| Warranty | |
| Base Warranty | Non Non |
