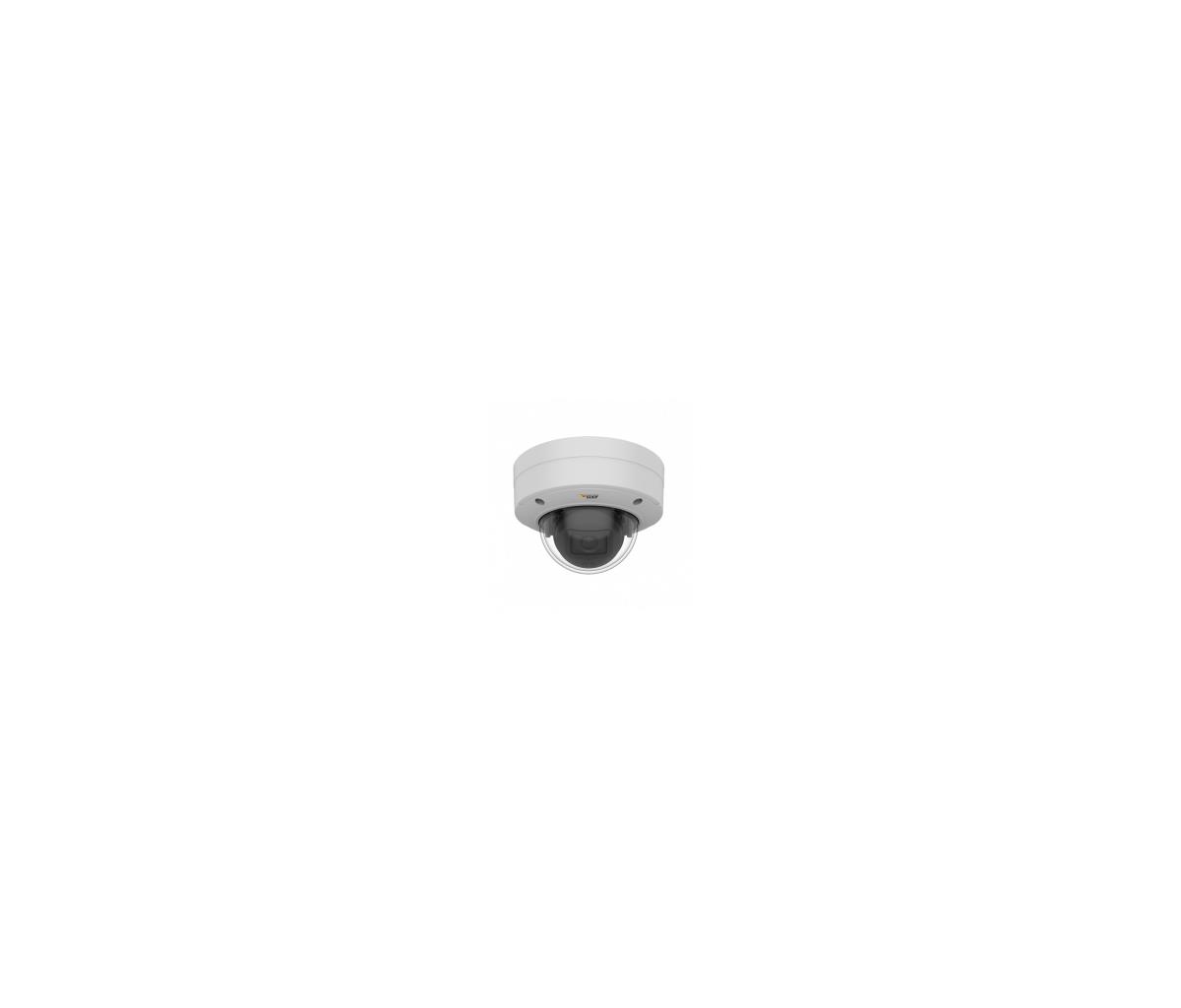

M3206-lve Network Camera
ITCurry #: 13835585 | Article #: 01518-001-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
AXIS M3206-LVE delivers an excellent wide-angle view in 4 MP resolution for both indoor and outdoor surveillance. This robust, cost-efficient fixed dome offers best-in-class video quality and built-in IR illumination for clarity even in complete darkness.
Uncover the darkness
AXIS M3206-LVE Network Camera offers 4 MP and a wide-angle view of 105°. It features WDR to give you clarity when there’s both dark and light areas in the scene. Plus, with built-in IR illumination, you’ll enjoy clear, reflection-free footage in complete darkness so there’s no need to spend money lighting your premises at night.
Ready to connect
AXIS M3206-LVE features edge storage so you can record directly to the camera, providing redundancy in case the network connection is lost. Plus, Zipstream enhanced with H.264 or H.265 significantly lowers bandwidth and storage requirements. It’s also possible to connect devices to the I/O ports to trigger alarms or actions, and the connection to the input can be supervised so it sends an alarm if the connection is cut. Furthermore, the HDMI port can be connected to a monitor for public viewing or used as a virtual window for the backdoor or entrance.
Best-in-class quality
This cost-efficient camera delivers best-in-class video quality and enhanced surveillance capabilities with support for analytics such as AXIS Guard Suite. Additionally, you can add support for audio using AXIS T61 Audio and I/O Interface enabling you to listen in to transactions or incidents, or even communicate warnings to intruders. Vandal-resistant and outdoor ready, the camera comes with a weathershield, and can be mounted on walls, ceilings and junction boxes using the included mounting bracket.
| Prestatie | |
| Soort | IP-beveiligingscamera |
| Ondersteuning voor plaatsing | Buiten |
| Connectiviteitstechnologie | Bedraad |
| PTZ control | Ja |
| Wide Dynamic Range (WDR) | Ja |
| Dag/nacht modus | Ja |
| Infrarood (IR)-afsluitingsfilter | Ja |
| Certificering | EN 55032 A, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC 15 B A, ICES-3(A)/NMB-3(A), VCCI A, RCM AS/NZS CISPR 32 A, KC KN32 A, KC KN35 IEC/EN/UL 62368-1, IEC/EN/UL 60950-22, IEC/EN 62471 IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 62262 IK10, IEC/EN 60529 IP66, NEMA 250 4X NIST SP500-267 |
| Design | |
| Vormfactor | Dome |
| Montagewijze | Plafond/muur |
| Kleur van het product | Wit |
| Internationale veiligheidscode (IP) | IP66 |
| IK code | IK10 |
| Camera | |
| Controle camerapanning | Ja |
| Kantelfunctie camera | Ja |
| Draaihoek | 360ø |
| Kijkhoek lens, horizontaal | 100ø |
| Kijkhoek lens, verticaal | 54ø |
| Bereik kantelhoek | 0 - 70ø |
| Pan bereik | -175 - 175ø |
| Camera sluitertijd | 1/32500 - 1/5 s |
| Beeldsensor | |
| Aantal sensoren | 1 |
| Omvang optische sensor | 25,4 / 2,5 mm (1 / 2.5") |
| Progressive scan | Ja |
| Type beeldsensor | CMOS |
| Lenssysteem | |
| Aantal lenzen | 1 |
| Maximum aperture number | 2 |
| Vaste focale lengte | 3,1 mm |
| Nachtkijker | |
| Nachtvisie | Ja |
| Nachtkijker afstand | 20 m |
| LED-type | IR |
| Infrarood wavelength | 850 nm |
| Video | |
| Maximum resolutie | 2304 x 1728 Pixels |
| Totaal aantal megapixels | 4 MP |
| Videocompressieformaten | AVC, H.264, H.265, HEVC, M-JPEG, MPEG4 |
| Ondersteunde grafische resoluties | 320 x 240 |
| Ondersteunde video-modi | 720p, 1080p |
| Maximaal 30 frames per seconde | 30 fps |
| Videostreaming | Ja |
| Aanpassing van de afbeeldingskwaliteit | Helderheid, Contrast, Verzadiging, Scherpte |
| Priv‚zone maskeren | Ja |
| Bitratecontrole | Variabele bitsnelheid (VBR) |
| Netwerk | |
| Ethernet LAN | Ja |
| Netwerkstandaard | IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Ondersteunde netwerkprotocollen | IPv4, IPv6 USGv6, HTTP, HTTPS, SSL/TLS, QoS L3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP |
| Wifi | Nee |
| Bluetooth | Nee |
| Quality of Service (QoS) | Ja |
| Opslagmedia | |
| Ingebouwde HDD | Nee |
| Ge‹ntegreerde geheugenkaartlezer | Ja |
| Compatibele geheugenkaarten | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 128 MB |
| Intern geheugen | 512 MB |
| Poorten & interfaces | |
| Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| Aantal HDMI-poorten | 1 |
| Beveiliging | |
| Wachtwoordbeveiliging | Ja |
| IP-adresfilter | Ja |
| Ondersteunde beveiligingsalgoritmen | EAP-TLS |
| HTTPS-encryptie | Nee |
| Spiegel | Ja |
| Energie | |
| Type stroombron | Power over Ethernet (PoE) |
| Stroomverbruik (typisch) | 4,2 W |
| Stroomverbruik (voeding via Ethernet (PoE)) | 12,5 W |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | -40 - 50 øC |
| Temperatuur bij opslag | -40 - 65 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 100 procent |
| Luchtvochtigheid bij opslag | 5 - 95 procent |
| Gewicht en omvang | |
| Hoogte | 104 mm |
| Diameter | 14,9 cm |
| Gewicht | 720 g |
| Inhoud van de verpakking | |
| Aantal cameras | 1 |
| Montage gereedschap | Ja |
| Gebruikershandleiding | Ja |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 85258900 |
| Warranty | |
| Base Warranty | Non Non |
