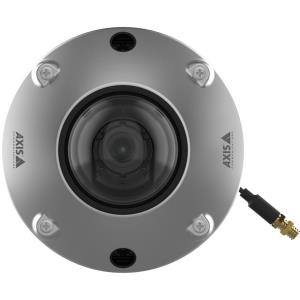

F4105-slre Dome Sensor 8p
ITCurry #: 13836490 | Article #: 02927-021-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
NSF/ANSI Standard 169 certified for use in food processing facilities, this ruggedized dome sensor is enclosed in a stainless steel casing. Plus, IR illumination allows for surveillance in complete darkness up to 10 m (33 ft.).
Discreet and rugged
Enclosed in a stainless steel (SS 316L) casing, this robust sensor unit is resistant to hot pressure water and harsh detergents. Easy to clean and maintain, it’s certified by NSF/ANSI to Standard 169 (Special Purpose Food Equipment and Devices) for use in food processing facilities. With IK10- and IP66/67/69-ratings, this dome sensor is weather-proof, heat-proof, and impact-resistant. It can handle temperatures from -30°C to 45°C (-30°F to 113°F). Plus, it’s NEMA TS2 rated so it can be used in temperatures up to 74°C for 15 hours. Furthermore, with SMA-FAKRA connectors, it’s ideal for high-vibration environments and can be installed inside machinery.
Great image quality
AXIS F4105-SLRE delivers great image usability under any light conditions. It supports up to four HDTV 1080p video streams at 30 fps or 720p video streams at up to 60 fps. When used with AXIS F9111, it delivers HDTV 1080p video streams at 60 fps or 720p video streams at up to 180 fps. Forensic WDR provides clarity when there’s both dark and light areas in the scene. This dome sensor offers an excellent 111º field of view for wide area coverage. Thanks to IR illumination, it allows for surveillance in complete darkness up to 10 m (33 ft.). Furthermore, with an exchangeable lens, you can quickly and easily change the lens
Flexible and cost-effective
Based on a divided camera concept, AXIS F4105-SLRE is designed for use with AXIS F91 main units and connects to the main unit using cables up to 30 m (98 ft). The sensor unit can be combined with all sensor units within the AXIS F Series, and it´s possible to combine up to four sensor units with one main unit for great flexibility. Thanks to the cable options, you can spread out the sensors from the main unit for large area coverage. AXIS F4105-SLRE also supports a wide range of exchangeable M12 lens options to enable customized surveillance. This enables both overview of larger areas like production lines or catering facilities and zoomed-in details on objects of interest.
| Kenmerken | |
| Soort | Sensorunit |
| Ondersteuning voor plaatsing | Universeel |
| Merkcompatibiliteit | Axis |
| Compatibiliteit | F4105-SLRE |
| Kleur van het product | Zilver |
| Materiaal behuizing | Roestvrijstaal |
| Internationale veiligheidscode (IP) | IP66, IP67, IP6K9K |
| IK code | IK10 |
| Gemakkelijk te installeren | Ja |
| Wide Dynamic Range (WDR) | Ja |
| Beeldsensor | |
| Lens mount interface | M12 |
| Beeldsensorformaat | 1/2.8" |
| Type beeldsensor | CMOS |
| Brandpuntbereik | 2.8 mm |
| F-nummer (relatieve aperture) | 2 |
| Resolutie | 1920 x 1080 Pixels |
| Kijkhoek, horizontaal | 110ø |
| Kijkhoek, verticaal | 61ø |
| Ergonomie | |
| Aantal connectors | 1 |
| Poorten & interfaces | |
| Connectiviteitstechnologie | Bedraad |
| Energie | |
| Nominaal vermogen | 1,9 W |
| Stroomverbruik (typisch) | 1,9 W |
| Vermogensverbruik (max) | 4,16 W |
| Gewicht en omvang | |
| Snoerlengte | 1 m |
| Breedte | 114 mm |
| Diepte | 57,8 mm |
| Hoogte | 114 mm |
| Gewicht | 452 g |
| Verpakking | |
| Aantal per verpakking | 8 stuk(s) |
| Inhoud van de verpakking | |
| Snelle installatiehandleiding | Ja |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | -30 - 55 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 100 procent |
| Temperatuur bij opslag | -40 - 65 øC |
| Luchtvochtigheid bij opslag | 5 - 95 procent |
| Technische details | |
| Bevat geen | PVC/BFR |
| Garantieperiode | 5 jaar |
| Certificaten van naleving | CE, KC, RCM, Amerikaanse Federale wet inzake handelsovereenkomsten (TAA), UL, VCCI, WEEE |
| Warranty | |
| Base Warranty | Non Non |
