Ex Connection Rail 4-port Poe++
ITCurry #: 13836348 | Article #: 02746-001-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Industrial PoE++ switch for hazardous areas

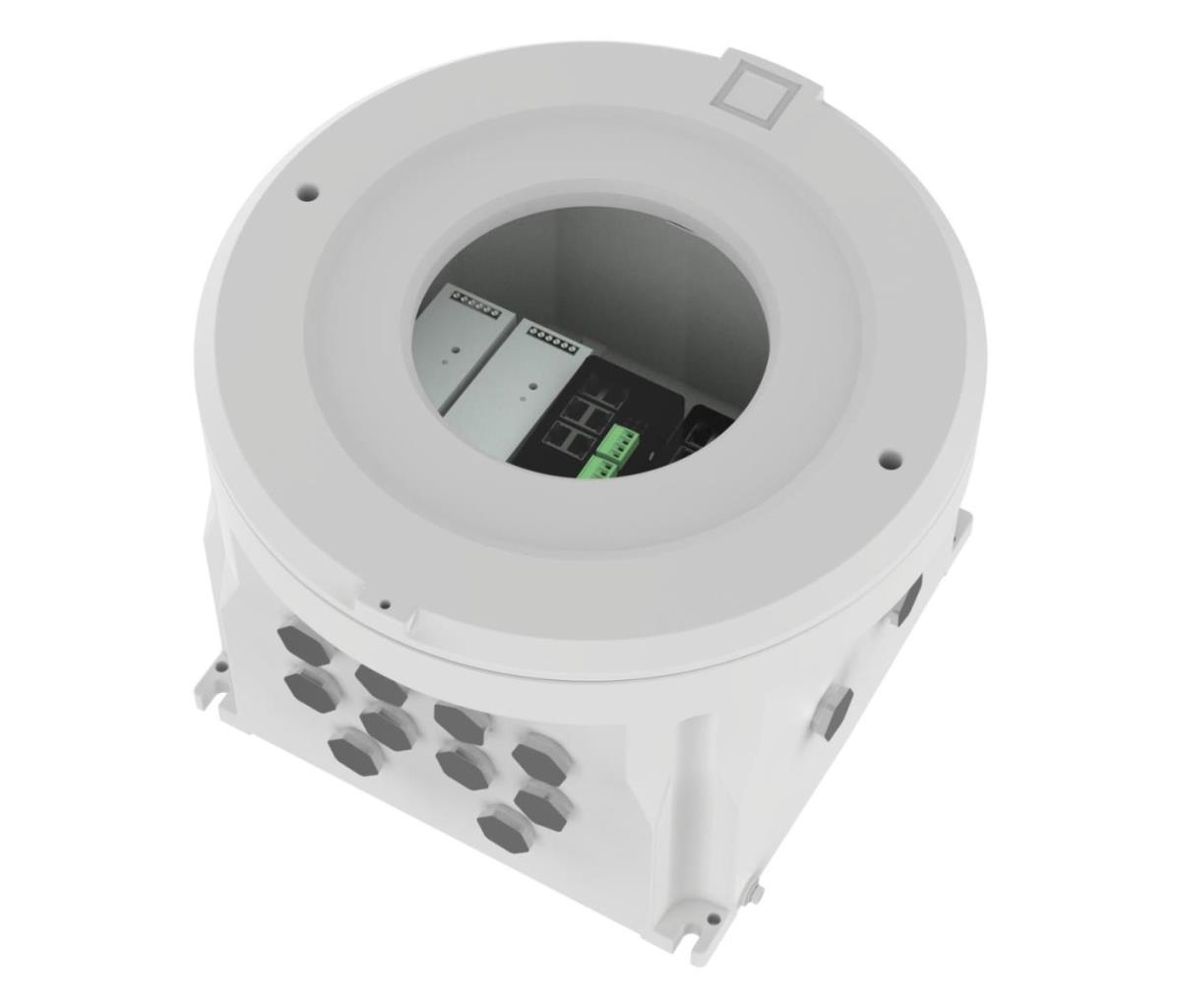

Ex Connection Rail 4-Port PoE++ is a high performance industrial PoE++ switch for hazardous areas. It is designed to provide power and network connectivity for up to four explosion-protected PoE cameras. Furthermore, this managed switch is equipped with two additional RJ45 and two SFP data ports that allows for fiber connectivity over long distance installations. The enclosure is equipped with a glass front for easy status verification without opening in a potentially combustible atmosphere. The Ex d-rated enclosure is made from seawater-resistant copper-free aluminum and is ready for wall mounting.
Total overview with unique user interface
Ex Connection Rail 4-Port PoE++ uses a unique web graphic user interface offers a graphic topology for easy overview of all devices in the system. The graphic user interface provides information, status and notifications about connected devices. It allows for management of all connected devices, reboot of cameras in the system, monitoring of network traffic, cable diagnostics and much more.
| Warranty | |
| Base Warranty | Non Non |
| Poorten & interfaces | |
| Aantal basis-switching RJ-45 Ethernet-poorten | 6 |
| Type basis-switching RJ-45 Ethernet-poorten | Gigabit Ethernet (10/100/1000) |
| Fibre channel-poorten | 2 |
| Vezel-optische connector | SFP |
| Netwerk | |
| Netwerkstandaard | IEEE 802.3at, IEEE 802.3bt |
| Koperen ethernetbekabelingstechnologie | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Design | |
| Kleur van het product | Wit |
| Materiaal behuizing | Aluminium |
| Internationale veiligheidscode (IP) | IP66 |
| Certificering | 55035, EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4 Australia/New Zealand: RCM AS/NZS CISPR 32 Class A, IEC/EN 60529 IP66, IEC/EN 60079-0, IEC/EN 60079-1, IEC/EN 60079-31, ATEX, IECEx, EAC Ex |
| Technische details | |
| Certificaten van naleving | REACH, RoHS |
| Energie | |
| Stroombron | AC |
| AC-ingangsspanning | 100 - 240 V |
| AC-ingangsfrequentie | 50/60 Hz |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Ja |
| Aantal Power over Ethernet 4PPoE (PoE++)-poorten | 4 |
| Vermogen per poort Power over Ethernet (PoE) | 60 W |
| Totaal Power over Ethernet (PoE)-budget | 240 W |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | -40 - 50 øC |
| Temperatuur bij opslag | -40 - 85 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 100 procent |
| Gewicht en omvang | |
| Breedte | 348 mm |
| Diepte | 348 mm |
| Hoogte | 230 mm |
| Gewicht | 21 kg |
| Duurzaamheid | |
| Bevat geen | PVC |
