Product Informatie

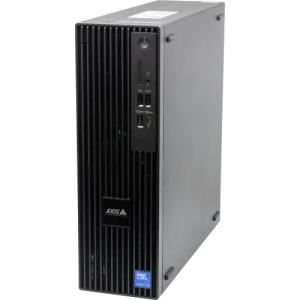

This 8-channel standalone appliance includes everything you need to run your complete surveillance system such as AXIS Camera Station Pro licenses, an 8-port PoE switch, and 4 TB of storage. It comes with pre-loaded software and tools to minimize installation time.
Powerful and versatile
This standalone appliance is compact and silent and won’t disturb local operations, ideal for example, in coffee shops, retail stores, and offices. With eight channels and AXIS Camera Station Pro licenses included, it gives you complete control, and you can run your entire solution on-premises. It comes with one empty bay for easy storage expansion, and support for AXIS Camera Station Cloud Storage if recording in the cloud is preferred. Built using powerful components, it supports AI applications such as Smart search 2. Furthermore, the built-in switch features an additional uplink port for easy and cost-efficient system expansion using AXIS S30 Recorder Series.
Easy to install and maintain
It comes preloaded with software and tools to help you set up and maintain your system. For instance, AXIS Recorder Toolbox includes an intuitive wizard to set up hostname, network settings, and date and time settings. It also includes a dashboard providing information on the built-in switch including uptime, current configuration, and basic settings. This all-in-one device provides everything you need to support your operations and update and maintain your system — all from one supplier. What’s more, advanced replacement service (RMA) and a 5-year hardware warranty ensure trouble-free ownership and better control over total costs.
Created with cybersecurity in mind
This reliable recording solution offers high-security features and standards. It includes an encrypted operating system and recordings with a FIPS 140-2 Level 2 certified TPM. Produced in a TAA-designated country, this appliance complies with NDAA FY19 and FY2023 and comes with a Software Bill of Materials (SBOM), ensuring compliance with strict regulations. Secure boot protects the system and ensures the recorder only runs a trusted operating system. Furthermore, the connected devices are physically isolated from the external network, reducing the risk of cyberattacks from the corporate network or the internet.
Prestatie | |
Videoingangkanalen | 8 kanalen |
Maximum resolutie | 7680 x 4320 Pixels |
Intern geheugen | 16 MB |
Intern geheugentype | DDR5 |
Harde schijf | |
Het aantal ge‹nstalleerde HDD's | 1 |
HDD capaciteit | 4 GB |
Maximum aantal HDD's per behuizing | 2 |
Totale ge‹nstalleerde opslagcapaciteit | 4 GB |
Maximale opslagcapaciteit | 8 TB |
HDD interface | SATA |
HDD omvang | 3.5" |
Poorten & interfaces | |
Aantal Ethernet LAN (RJ-45)-poorten | 2 |
Power over Ethernet (PoE) | Ja |
Hoeveelheid Power over Ethernet (PoE) ports | 8 |
HDMI-uitgang | Ja |
Aantal HDMI-poorten | 2 |
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 2 |
Aansluiting voor netstroomadapter | Ja |
Netwerkstandaard | IEEE 802.3at |
Kenmerken | |
Merkcompatibiliteit | Ajax |
Reset button | Ja |
Kleur van het product | Zwart |
Certificering | UL/cUL, BIS, CE, KC, VCCI, RCM, BSMI, FCC, NOM |
Processor | |
Type processor | Ja |
Energie | |
Vermogensverbruik (max) | 270 W |
Stroomverbruik (typisch) | 75 W |
AC-ingangsspanning | 100 - 240 V |
AC-ingangsfrequentie | 50/60 Hz |
Output current | 3,5 A |
Totaal Power over Ethernet (PoE)-budget | 135 W |
Minimale systeemeisen | |
Ondersteunt Windows | Ja |
Eisen aan de omgeving | |
Bedrijfstemperatuur (T-T) | 0 - 40 øC |
Relatieve vochtigheid in bedrijf (V-V) | 10 - 90 procent |
Temperatuur bij opslag | -40 - 65 øC |
Luchtvochtigheid bij opslag | 10 - 90 procent |
Technische details | |
Certificaten van naleving | Amerikaanse Federale wet inzake handelsovereenkomsten (TAA) |
Veiligheidswaarschuwing | CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3, RCM AS/NZS 62368. 1:2018, IS 13252 |
Gewicht en omvang | |
Breedte | 330 mm |
Diepte | 230 mm |
Hoogte | 78 mm |
Gewicht | 5,8 kg |
Inhoud van de verpakking | |
Inclusief AC-adapter | Ja |
Snelle installatiehandleiding | Ja |
Warranty | |
Base Warranty | Non Non |
