Product Informatie

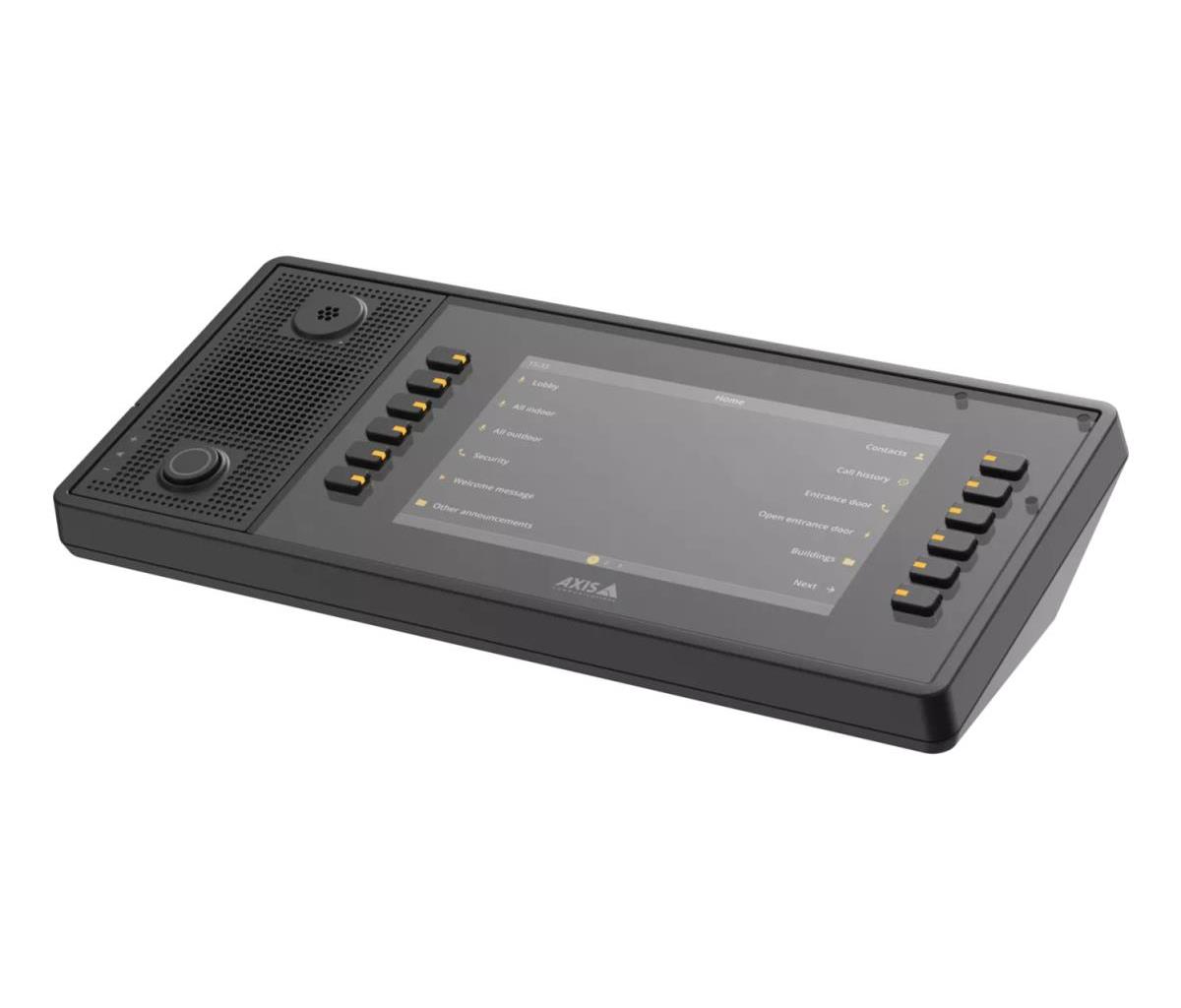

Together with network speakers, AXIS C6110 Network Paging Console enables a complete public address system. Simple to install, use, and customize, the console supports paging as well as two-way audio and daily operations.
Paging and more – the way you want
When you add AXIS C6110 Network Paging Console to your network speakers, you gain a complete public address system with all the benefits of an IP-based solution. The paging console enables both callouts and two-way audio. Meanwhile, straightforward integration with other systems means you can even configure buttons on the console to trigger other IoT devices for smooth daily operations. PoE makes installation easy, and the console supports both desktop and wall placement. Plus, you’re free to use your console how you choose – as-is, with a headset, or with the optional gooseneck microphone accessory (soon to be launched).
Messages where and when you need them
Complement your network speakers with our network paging console to meet all your paging and public address needs. Live callouts to speakers, intercoms, or SIP devices make it easy for you to reach the right places and people. Additionally, on-board memory enables you to send prerecorded callouts for specific kinds of events – for example, fire drills, calling additional cashiers to the register, early closings, lockdowns, and more. The console provides convenient access to as many audio zones and individual contacts as you choose, with an expandable tree structure you access using the intuitive visual display and twelve physical buttons.
Easy and flexible
This paging console, winner of the Red Dot Design Award for its visual design, includes an web-configurable LCD screen and a status LED that indicates when the microphone is on. The console’s large display and twelve physical buttons enable intuitive navigation to all your audio zones. Place the console on a desk or mount it on a wall – the built-in beam-forming mic picks up speech clearly in both positions. For desk placements, you can choose to add an external headset or AXIS TC6901 Gooseneck Microphone. Finally, it’s powered by PoE, so one cable provides both power and connectivity.
More than paging
Easy and dependable paging helps keep your day-to-day running smoothly, but our network paging console lets you do more than simple callouts. A built-in speaker enables two-way audio with intercoms and speakers across your site for more efficient communication. And because the console is built on the Axis open platform, you can also configure the buttons to trigger actions on other IoT devices. That means you can design your solution to make it easier to open the main door for a visitor, turn off lights, or take care of other tasks – no need to log into or navigate management software each time.
| Technische details | |
| Connectiviteitstechnologie | Bedraad |
| Kleur | Ja |
| Luidspreker | Ja |
| Aantal displays ondersteund | 1 |
| Maximum aantal cameras ondersteund | 1 |
| VoIP protocollen | IPv6, SRTP, SIPS, SIP TLS, DTMF (RFC2976 and RFC2833), NAT (ICE, STUN, TURN) |
| Streaming mogelijkheid | Ja |
| Echo annulatie | Ja |
| Ophangsysteem voor aan de muur | Ja |
| Ingebouwde microfoon | Ja |
| Backlight toetsen | Ja |
| Geluidsniveau | 80 dB |
| Bevat geen | PVC |
| Garantieperiode | 5 jaar |
| Certificaten van naleving | Elektromagnetische compatibiliteit (EMC), Federal Communications Commission (FCC), ICES, KC, REACH, RoHS, VCCI |
| Beeldscherm | |
| Beeldschermdiagonaal | 17,8 cm (7") |
| Resolutie | 1024 x 600 Pixels |
| Nachtkijker | |
| Aantal verlichtingen LEDS | 1 |
| Audio | |
| Ingebouwde luidsprekers | Ja |
| Aantal luidsprekers | 2 |
| Ruisonderdrukkingseffect | Ja |
| Stemcodecs | AAC, G.722, G.726-32, MP3, OPUS, PCM, PCMA |
| Design | |
| Kleur van het product | Zwart |
| On Screen Display (OSD)-talen | Vereenvoudigd Chinees, Traditioneel Chinees, Duits, Engels, Spaans, Frans, Italiaans, Japans, Koreaans, Thais, Vietnamees |
| Aantal On Screen Display-talen | 11 |
| Materiaal behuizing | Aluminium, Kunststof |
| LED-indicatoren | Notificatie |
| Opslagmedia | |
| Geheugenkaartslot | Ja |
| Compatibele geheugenkaarten | MicroSD (TransFlash) |
| Maximale capaciteit van de geheugenkaart | 1 TB |
| ROM-capaciteit | 1024 MB |
| Binnenunit | |
| Stroomverbruik (ontvanger) (max) | 12,95 W |
| Netwerk | |
| Ethernet interface type | 10 Gigabit Ethernet, 100 Gigabit Ethernet, Gigabit Ethernet |
| Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| Power over Ethernet (PoE) | Ja |
| Ondersteunde netwerkprotocollen | IPv4/v61 , HTTP, HTTPS2 , SSL/TLS2 , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/ v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, NTCIP, SIP (Cisco, Avaya, Asterisk) |
| Netwerkstandaard | IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Energie | |
| USB-connectortype | USB Type-A |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 50 øC |
| Temperatuur bij opslag | -30 - 65 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 85 procent |
| Gewicht en omvang | |
| Breedte | 295 mm |
| Diepte | 132 mm |
| Hoogte | 67 mm |
| Gewicht | 910 g |
| Verpakking | |
| Binnenunit inbegrepen | Ja |
| Buitenunit inbegrepen | Nee |
| Warranty | |
| Base Warranty | Non Non |
