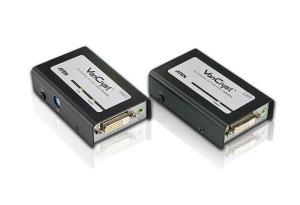

Ve601t DVI Hdbaset-lite Extender Transmitter
ITCurry #: 90314167 | Article #: VE601T-AT-G-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
The VE601T DVI HDBaseT-Lite Extender is able to extend a DVI 1080p display up to 70 m using an Ethernet cable. This combination of ATEN and HDBaseT technology even supports sharing 1920 x 1200 media up to 40 m away, offering a simple, adaptable, and cost-effective solution for any professional A/V installation.
The VE601 DVI HDBaseT-Lite Extender is the perfect solution for professional A/V installations that require video signal interference protection, such as in medical and military installations. With its lightweight and easy-to-mount design, not to mention slip-resistant DC Jack lock mechanism, the VE601 can be installed nearly anywhere while ensuring peace of mind with its unerring reliability.
* Compatible HDBaseT Receiver Units: VE601R, VE801R
| Kenmerken | |
| Soort | AV-zender |
| Maximum resolutie | 1920 x 1200 Pixels |
| Ondersteundende kabel types | Cat5e, Cat6, Cat6a |
| Maximaal bereik | 70 m |
| Ondersteunde video-modi | 1080p |
| Ondersteunde grafische resoluties | 1920 x 1200 (WUXGA) |
| Bandbreedte | 10,2 Gbit/s |
| Bandbreedte | 340 MHz |
| Snoerlengte | 1,8 m |
| Resolutie | 1920 x 1200 Pixels |
| Vermogen | 1,85 W |
| HDCP | Ja |
| Materiaal | Metaal |
| 3D | Ja |
| Rack-montage | Ja |
| Impedantie | 100 Ohm |
| Kleur van het product | Zwart |
| Compatibele producten | VE601R, VE801R |
| Poorten & interfaces | |
| Ethernet LAN | Ja |
| DVI input ports | 1 |
| Video-ingang | DVI-D Female |
| Aansluiting voor netstroomadapter | Ja |
| Energie | |
| Operating voltage | 5 V |
| Stroomverbruik (typisch) | 1,85 W |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 50 øC |
| Temperatuur bij opslag | -20 - 60 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 0 - 80 procent |
| Gewicht en omvang | |
| Transmitter afmetingen (WxDxH) | 87 x 103 x 30 mm |
| Transmitter gewicht | 250 g |
| Technische details | |
| Aansluiting type | DC Jack with locking |
| Aantal connectors | 1 |
| Aantal | 1 |
| Frequentie | 340 MHz |
| Warranty | |
| Base Warranty | Non Non |
