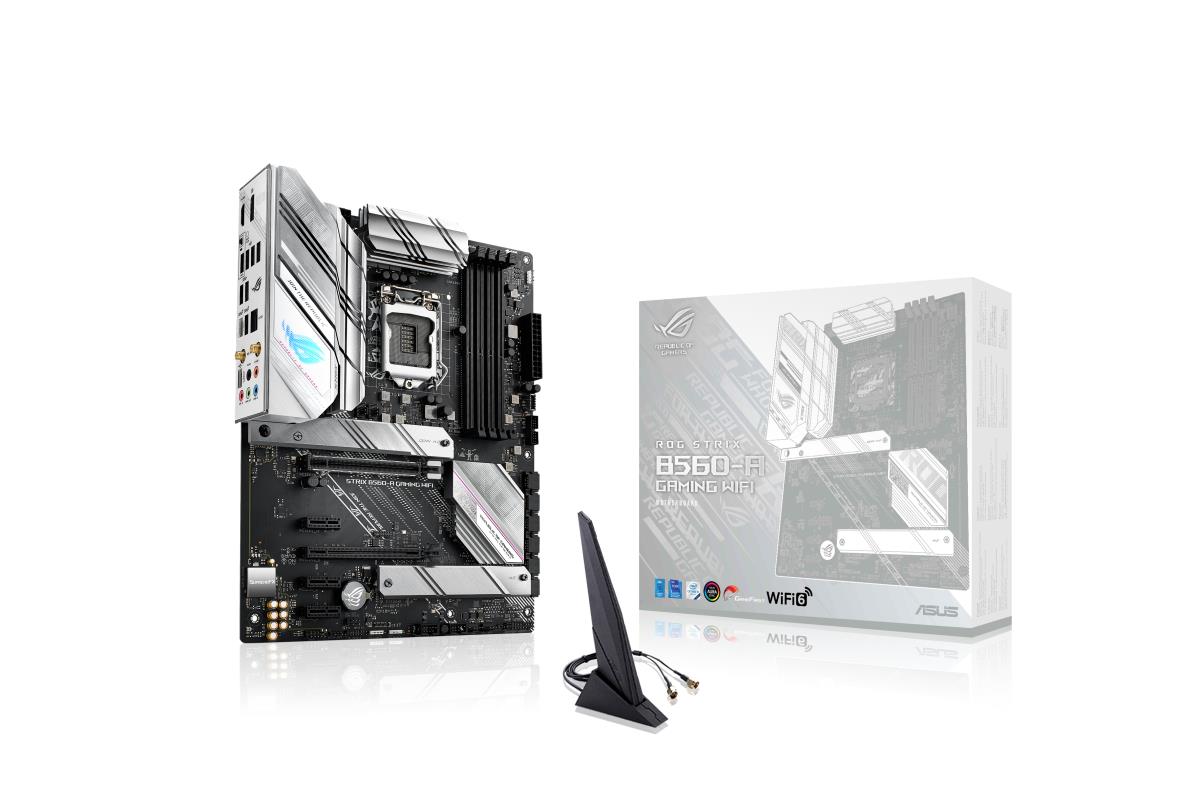

Motherboard ROG STRIX B560-A GAMING Wi-Fi / LGA1200 B560 DDR4 128GB ATX
ITCurry #: 8881U522 | Article #: 90MB16V0-M0EAY0-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie

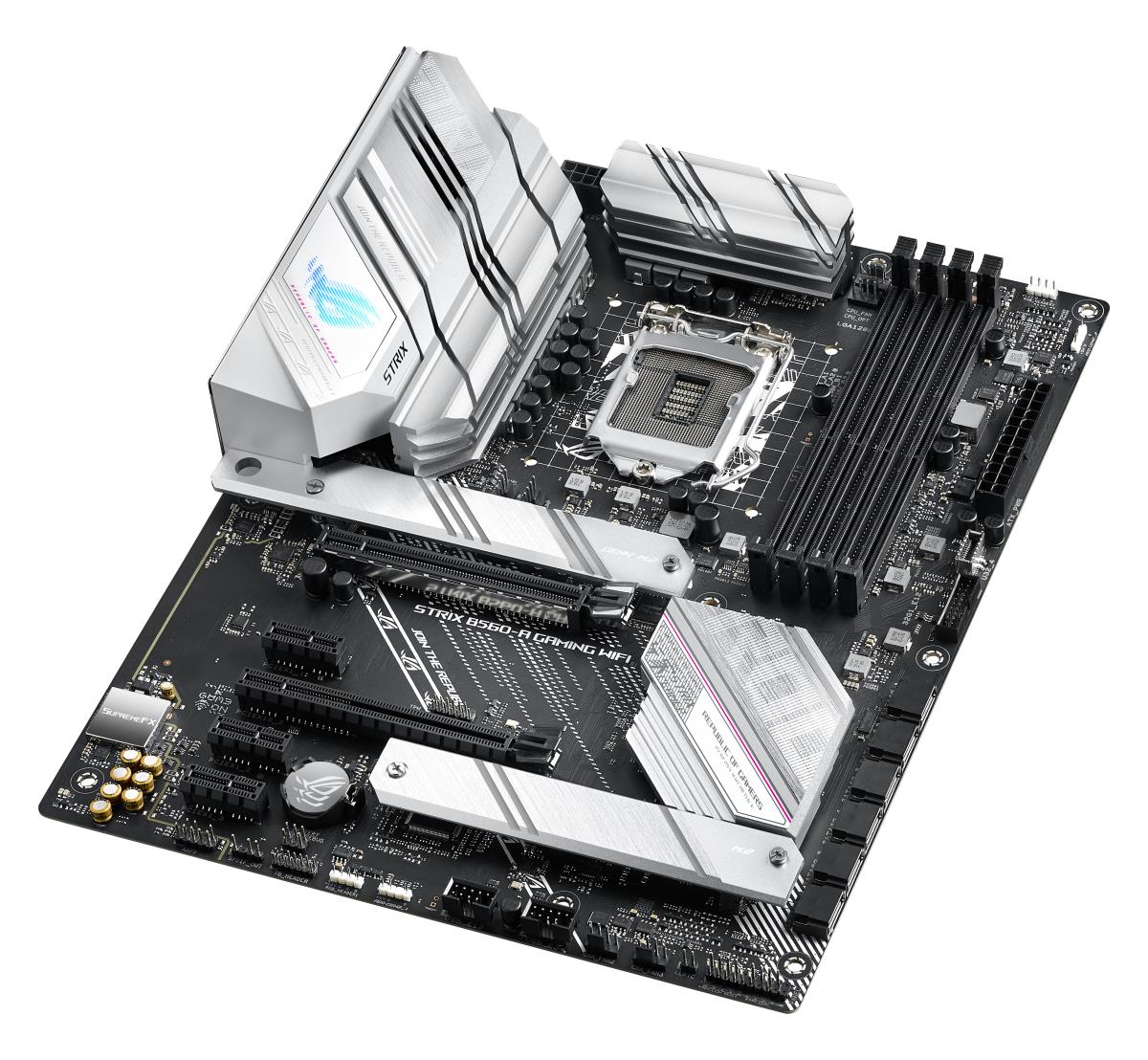

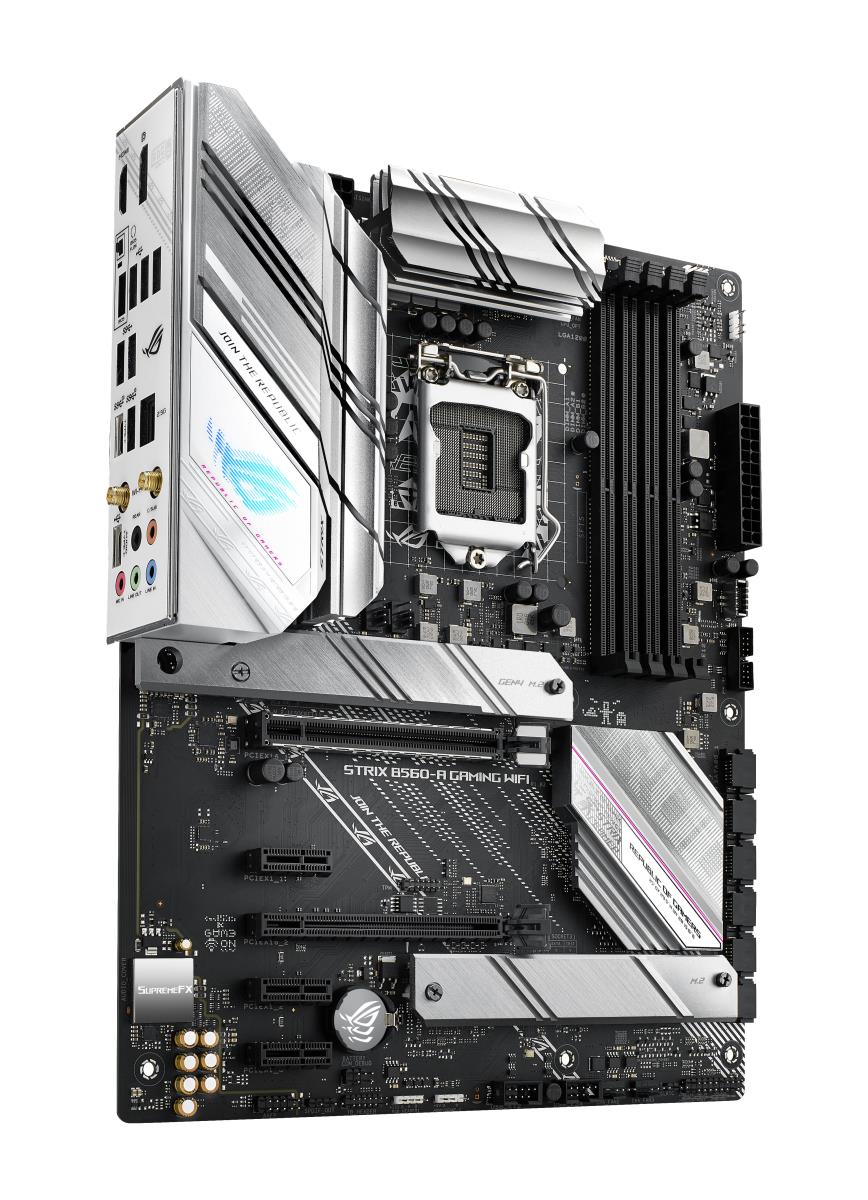

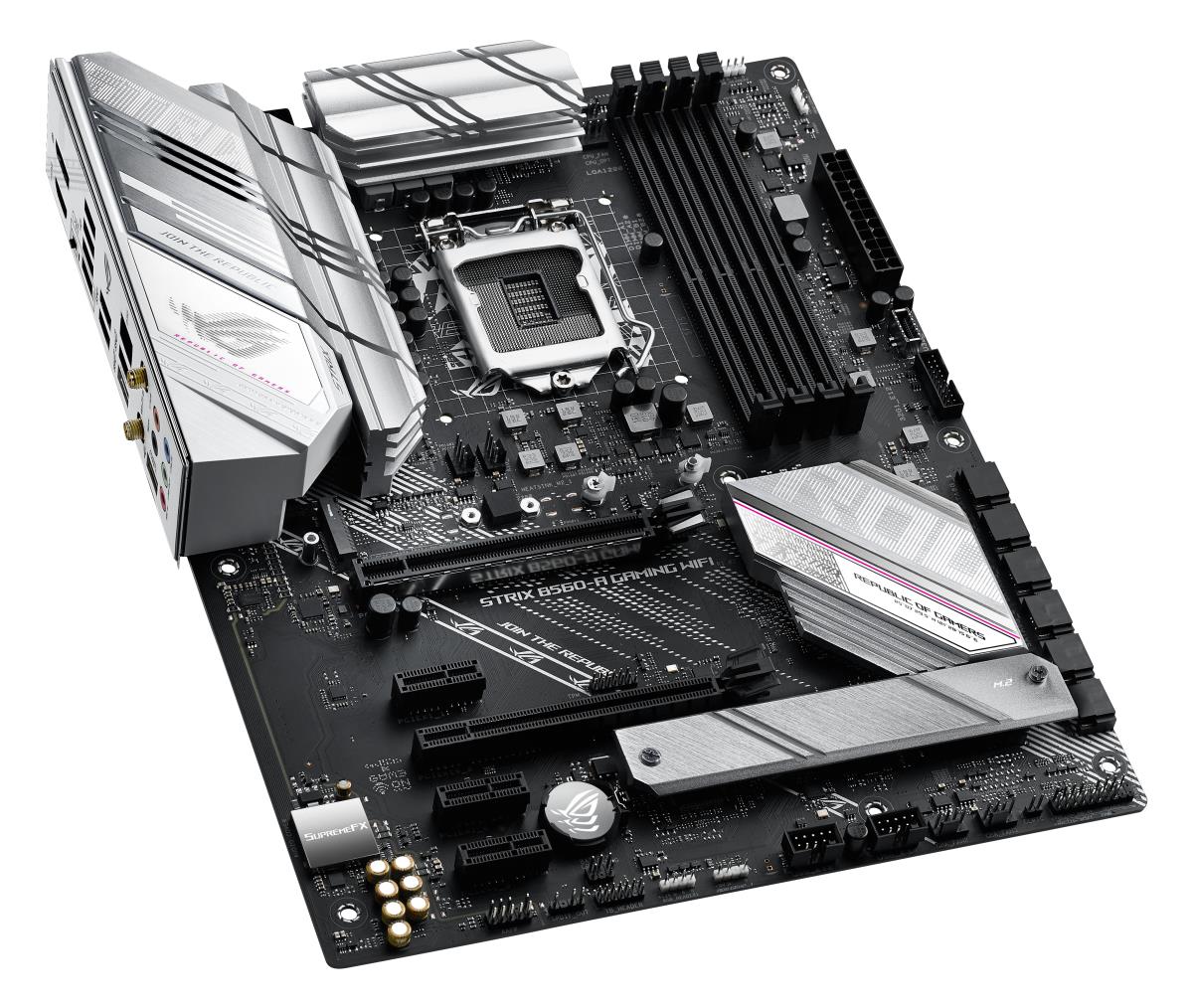

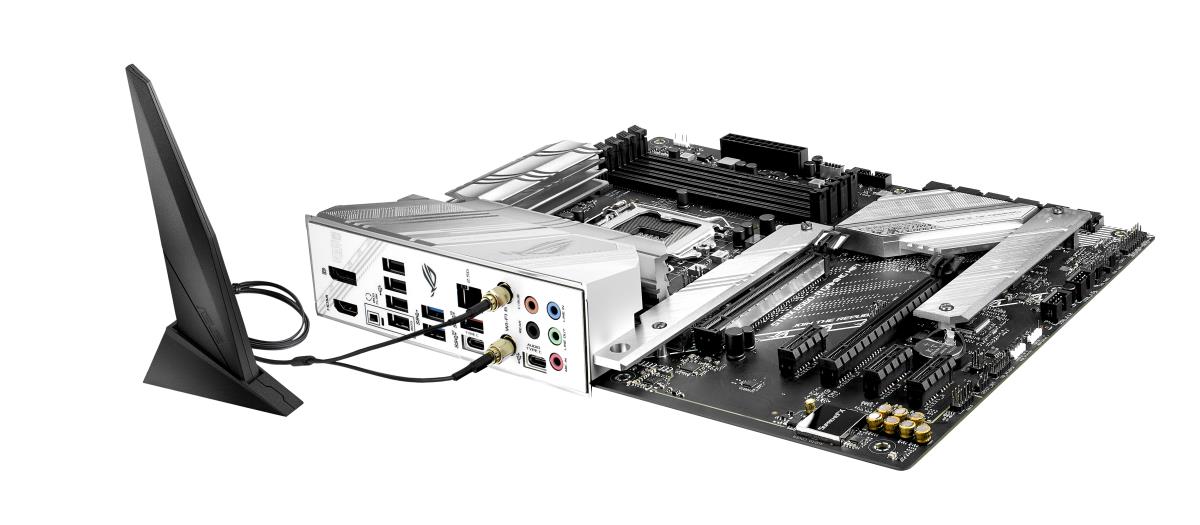

Intel® B560 LGA 1200 ATX motherboard with PCIe 4.0, 8+2 teamed power stages, Two-Way AI Noise Cancelation, WiFi 6 (802.11ax), Realtek 2.5 Gb Ethernet, two M.2 slots with heatsinks, USB 3.2 Gen 2x2 USB Type-C®, SATA and Aura Sync RGB lighting
ROG Strix B560-A Gaming WiFi delivers everything you need to create a well balanced gaming PC utilizing 11th Generation Intel® Core™ processors. It’s ready for the latest graphics cards, storage, and networking standards, and further boosted by AI enhancements more commonly found on higher end counterparts. That performance is matched by a striking silver-white aesthetic with complementary RGB lighting to give you a build that stands out in every way.
POTENTIAL, REALIZED
Robust power delivery and comprehensive cooling features ensure exceptional performance, while AI-powered enhancements optimize network settings and improve in-game communication — all to help you maximize the full potential of your rig.
COOLER BY DESIGN
ROG Strix B560 motherboards feature comprehensive cooling options that are configurable via Fan Xpert 4 or the UEFI BIOS.
TWO-WAY AI NOISE CANCELATION
This utility leverages a massive deep-learning database to reduce background noise from the microphone* and incoming audio, while preserving vocals at the same time. Distracting keyboard clatter, mouse clicks and other ambient noises are intelligently neutralized so you can hear and be heard with crystal clarity while gaming or in calls.
ADVANCED GAMING IMMERSION
The latest connectivity features and audio enhancements propel ROG Strix B560-A gaming performance to the next level.
SUPREMEFX
Leveraging premium components together with advanced circuit layout optimizations and shielding techniques, ROG SupremeFX technology ensures pristine audio for all inputs and outputs. Front panel audio output quality is further preserved by a Savitech amplifier that's capable of driving a diverse range of gaming headsets and high-fidelity headphones.
AUDIO USB TYPE-C®
Dedicated onboard hardware and power filtering allow the Audio Type-C® port to pipe crystal clear sonics to 3.5mm analogue headphones or the ROG Delta headset.
PLAY YOUR OWN STYLE
Pair ROG Strix B560-A Gaming WiFi with other products from the diverse ROG ecosystem to create a fully customized gaming setup that reflects your personal style.
UNDENIABLY ROG STRIX
A striking silver white finish and contrasting Aura-RGB-illuminated glitch-effect logo give ROG Strix B560-A Gaming WiFi a bold aesthetic that immediately catches the eye. Parallel strakes and dotted text on the aluminum I/O shroud, M.2 and PCH heatsinks echo the ROG Strix fundamentals of speed, diversity and attitude to tie the whole theme together.
M.2 Q-LATCH
The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the drive and neatly eliminate traditional screws.
M.2 Q-LATCH
BIOS FLASHBACK™
BIOS FlashBack™ is the simplest and safest way to update BIOS. Simply drop the (UEFI) BIOS file onto a FAT32 formatted USB stick, and plug it into the USB BIOS FlashBack port and press the button. Updates can even be performed without having memory or a CPU installed.
Q-LEDS
Four onboard LEDs indicate power status, and any problem with the CPU, memory, graphics card or boot device for quick diagnosis.
PRE-MOUNTED I/O SHIELD
ROG's patented I/O shield is finished in sleek matte black and comes pre-mounted to make it easy to install the motherboard.
ROG GIVES YOU MORE
ROG-exclusive firmware and software utilities deliver intuitive tuning options that help get the most from your gaming build. To further aid system setup and performance tuning, the highly acclaimed AIDA64 utility has also been added to the mix.
UEFI BIOS
The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as comprehensive features for seasoned veterans.
SONIC STUDIO III
ROG Sonic Studio supports HRTF-based (head-related transfer function*) virtual surround for VR headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.
AIDA64
ROG Strix B560 motherboards include a 60-day AIDA64 Extreme subscription. This industry-leading system information tool provides detailed information about installed hardware and software, and it also provides benchmarks for measuring performance of the entire system or individual components. AIDA64 Extreme includes a monitoring and diagnostics feature to detect and prevent hardware issues. All vital system sensors can be tracked in real time, allowing voltage readings, fan speeds, and temperature information to be displayed on the desktop or sent to dedicated displays or to the LCD panels of ROG AIO liquid coolers.
ARMOURY CRATE
Armoury Crate is a software utility designed to give you centralized control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate lets you easily customize RGB lighting and effects for compatible devices and synchronize them with Aura Sync to create a unified lighting scheme across your system. You can also use Armoury Crate to download drivers, software and the user manual. In addition, Armoury Crate features a dedicated product registration page as well as a news feed to help you stay in touch with the gaming community.
RAMCACHE III
RAMCache III software turns milliseconds into microseconds to boost game-load times. Fully compatible with the latest NVM Express® storage options, its uniquely intelligent technology effectively caches an entire storage device so that favorite games and apps launch at breakneck speeds.
| Processor | |
| Processorfabrikant | Intel |
| Processor socket | LGA 1200 (Socket H5) |
| Compatibele processors | Intel© Celeron©, Intel© CoreT i5, Intel© CoreT i7, Intel© CoreT i9, Intel© Pentium© |
| Max. aantal SMP-processoren | 1 |
| Geheugen | |
| Ondersteunde geheugen types | DDR4-SDRAM |
| Aantal geheugenslots | 4 |
| Geheugen slots type | DIMM |
| Maximum intern geheugen | 128 GB |
| Opslag-controllers | |
| Ondersteunde opslagstationinterfaces | M.2, SATA |
| Aantal storage drives ondersteund | 8 |
| Interne aansluitingen | |
| Aantal SATA-aansluitingen | 6 |
| Aansluitingen achterzijde | |
| Aantal USB 2.0-poorten | 4 |
| Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 2 |
| Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A | 1 |
| Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C | 1 |
| Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| Aantal HDMI-poorten | 1 |
| HDMI versie | 2.0 |
| Aantal DisplayPorts | 1 |
| DisplayPort versie | 1.4 |
| Microfoon, line-in ingang | Ja |
| WiFi-AP antenna jack | 2 |
| USB-connectortype | USB Type-A, USB Type-C |
| Netwerk | |
| Ethernet LAN | Ja |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wifi | Ja |
| Wifi-standaard | Wi-Fi 6 (802.11ax) |
| Wi-Fi-standaarden | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Bluetooth | Ja |
| Bluetooth-versie | 5.0 |
| Kenmerken | |
| Chipset moederbord | Intel B560 |
| Audiochip | SupremeFX S1220A |
| Audio-uitgangskanalen | 7.1 kanalen |
| Component voor | PC |
| Moederbord form factor | ATX |
| Moederbord chipset familie | Intel |
| Type stroombron | ATX |
| Aantal montagegaten | 8 |
| Ondersteunt Windows | Windows 10 x64 |
| Uitbreidingsmodules | |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) sleuven | 1 |
| Aantal M.2 (M) slots | 2 |
| BIOS | |
| BIOS type | UEFI AMI |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 84733020 |
| Gewicht en omvang | |
| Breedte | 305 mm |
| Diepte | 244 mm |
| Hoogte | 68 mm |
| Inhoud van de verpakking | |
| Meegeleverde kabels | SATA |
| Meegeleverde drivers | Ja |
| Overige specificaties | |
| Gewicht | 1,42 kg |
| Warranty | |
| Base Warranty | Non Non |
