Symmetra Px 32kw Scalable To 96kw 400v With Modular Power Distribution
ITCurry #: 02808800 | Article #: SY32K96H-PD-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie

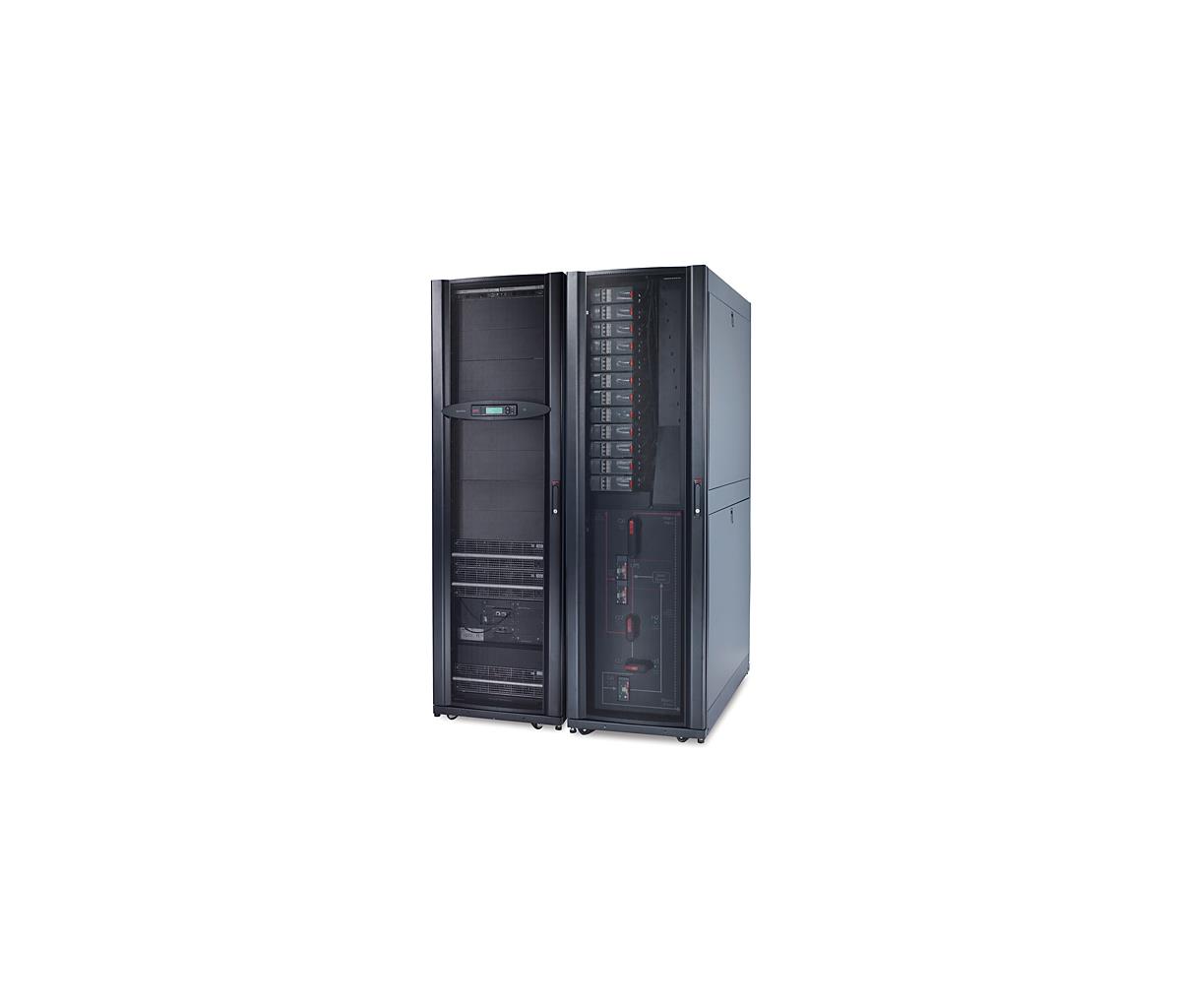

APC Symmetra PX 32kW Scalable to 96kW 400V with Modular Power Distribution
A high-efficiency 3-phase UPS with integrated modular distribution that can be right-sized to your Data Center power requirements. With hot-scalable power, distribution and run-time, this UPS scales with your Data Center up to 96kW/96kVA. Suitable for small to medium Data Centers or individual zones of large Data Centers.
StruxureWare Central compatible
Enables centralized management via StruxureWare Central.
Modular design
Increases adaptability with an open architecture configurable to any IT environment.
Modular design
Modular construction - can be deployed as a non-standby and migrate to a standby (UPS) system.
LCD display
Alpha-Numeric Display which displays system parameters and alarms.
SmartSlot
Customize UPS capabilities with management cards.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Generator compatible
Ensures clean, uninterrupted power to protected equipment when generator power is used.
Configurable for N+1 internal redundancy
Provides high availabilty through redundancy by allowing configuration with one more Power Module than is necessary to support the connected load.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Battery modules connected in parallel
Delivers higher availability through redundant batteries.
Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS overload condition or fault.
Audible alarms
Provides notification of changing utility power and UPS conditions
User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Scalable runtime
Allows additional run time to be quickly added as needed.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Scalable power capacity
Reduces UPS over-sizing costs today by allowing quick upgrades later.
Programmable frequency
Ensures compatibility with different input frequencies.
Redundant Intelligence Modules
Provides higher availability to the UPS connected loads by giving redundant communication paths to critical UPS functions.
Power Modules connected in parallel
Enhances availability by allowing immediate, seamless recovery from isolated module failures.
Modular design
Provides fast serviceability and reduced maintenance requirements via self-diagnosing, field-replaceable modules.
Manageable external batteries
Reduces preventative maintenance service needs by monitoring the health and status of the external batteries and their expected runtime.
Network manageable
Provides remote management of the UPS over the network.
Input power factor correction
Minimizes installation costs by enabling the use of smaller generators and cabling.
Modular design
Modular design provides scalable solutions to add cooling as demand increases.
Battery replacement without tools
Allows quick, easy battery replacement.
Front-access servicing
Simplifies installation and maintenance while minimizing space requirements.
LED status indicators
Quickly understand unit and power status with visual indicators.
| Kenmerken | |
| Output power capacity | 96 kVA |
| Uitgangsvermogen | 96000 W |
| Ingang operation voltage (min) | 340 V |
| Ingang operation voltage (max) | 477 V |
| Frequentie | 50/60 Hz |
| Uitgang operation voltage (min) | 380 V |
| Uitgang operation voltage (max) | 415 V |
| Stroom (max.) | 59 A |
| Efficientie | 95 procent |
| Emergency Power Off (EPO) | Ja |
| Output voltage THD | 2 procent |
| EMI/RFI geluidsfiltering | Ja |
| Geluidsniveau | 61 dB |
| Stroomspanning bescherming | Overstroom, Overbelasting |
| Geluidsalarm(en) | Ja |
| Accu/Batterij | |
| Accu/Batterij oplaadtijd | 3,50 uur |
| Hot-swap batterij | Ja |
| Design | |
| Kleur van het product | Zwart |
| Type beeldscherm | LCD |
| Certificering | EN 50091-1,EN/IEC 62040-3,EN/IEC 62040-1-1,FCC Part 15 Class A,VFI-SS-111 |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Temperatuur bij opslag | -15 - 40 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 0 - 95 procent |
| Luchtvochtigheid bij opslag | 0 - 95 procent |
| Hoogte, in bedrijf | 0 - 999,9 m |
| Hoogte bij opslag | 0 - 15000 m |
| Gewicht en omvang | |
| Breedte | 1200 mm |
| Diepte | 1070 mm |
| Hoogte | 1991 mm |
| Gewicht | 1814 kg |
| Gewicht verpakking | 1963 kg |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 85078000 |
| Overige specificaties | |
| Aantal fases | 3 |
| Type batterij | VRLA |
| Interface | 2 x SmartSlot |
| Netspanning, in bedrijf | 400 V |
| Output Voltage voetnoot | 380: 400 / 415 V 3 Ph |
| Nominale input voltage | 400 V |
| Overbelastingsprotectie | Ja |
| Afmetingen verpakking (BxDxH) | 1696 x 1210 x 2140 mm |
| Warranty | |
| Base Warranty | Non Non |
