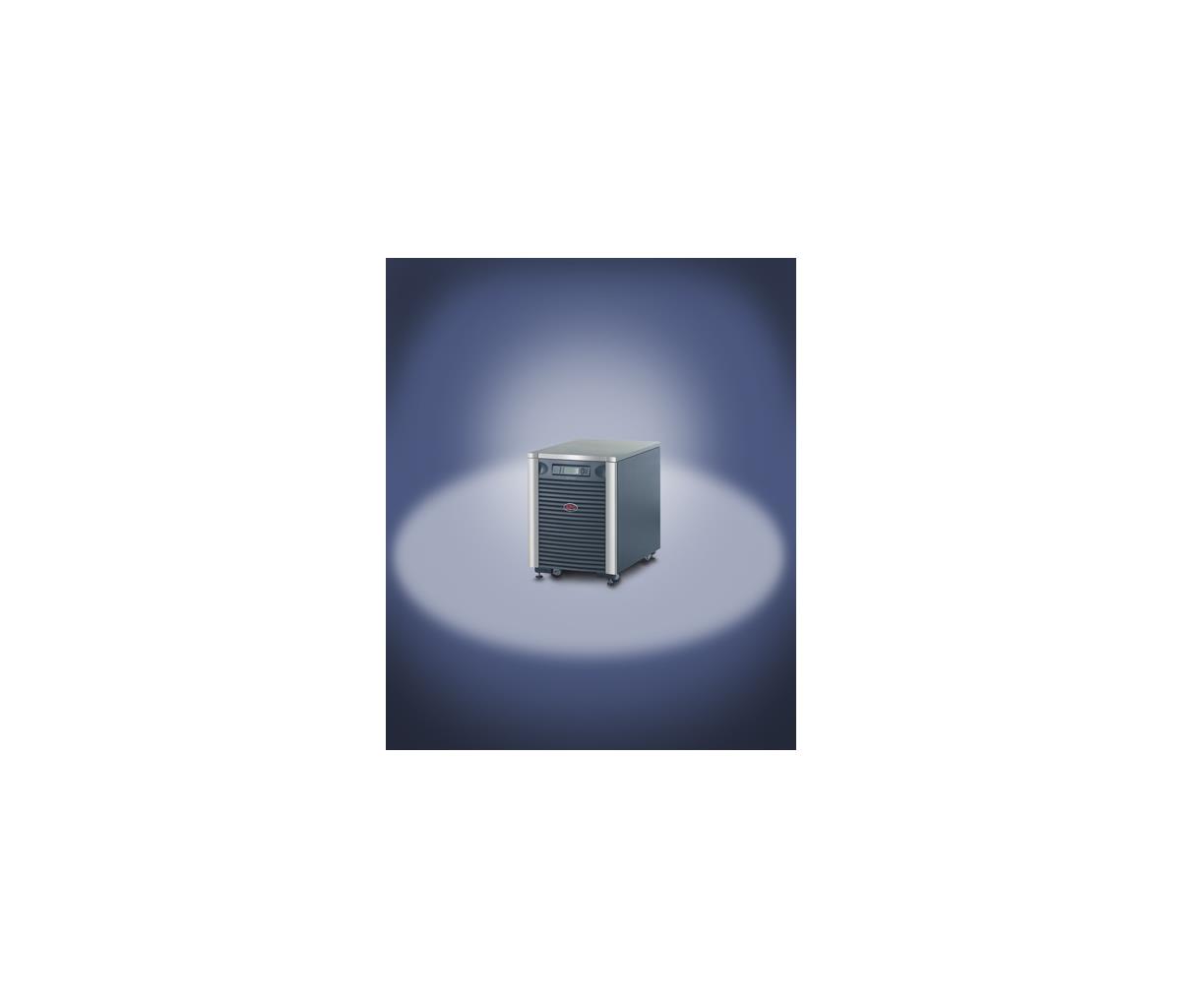

Symmetra LX 8kVA N+1 Frame 220/230/240V or 380/400/415V

ITCurry #: 0280L813 | Article #: SYAF8KI
Prijs:
5042,11 Excl. btw
Levering in Benelux:
GRATIS Levering.
Nu niet op voorraad. Bel ons!

Verwante producten

slide 7 to 11 of 14

Product Informatie

APC Symmetra, 5600 Watts / 8000 VA, Input 230V, 400V 3PH / Output 230V , Interface Port DB-9 RS-232, Smart-Slot , Extended runtime model

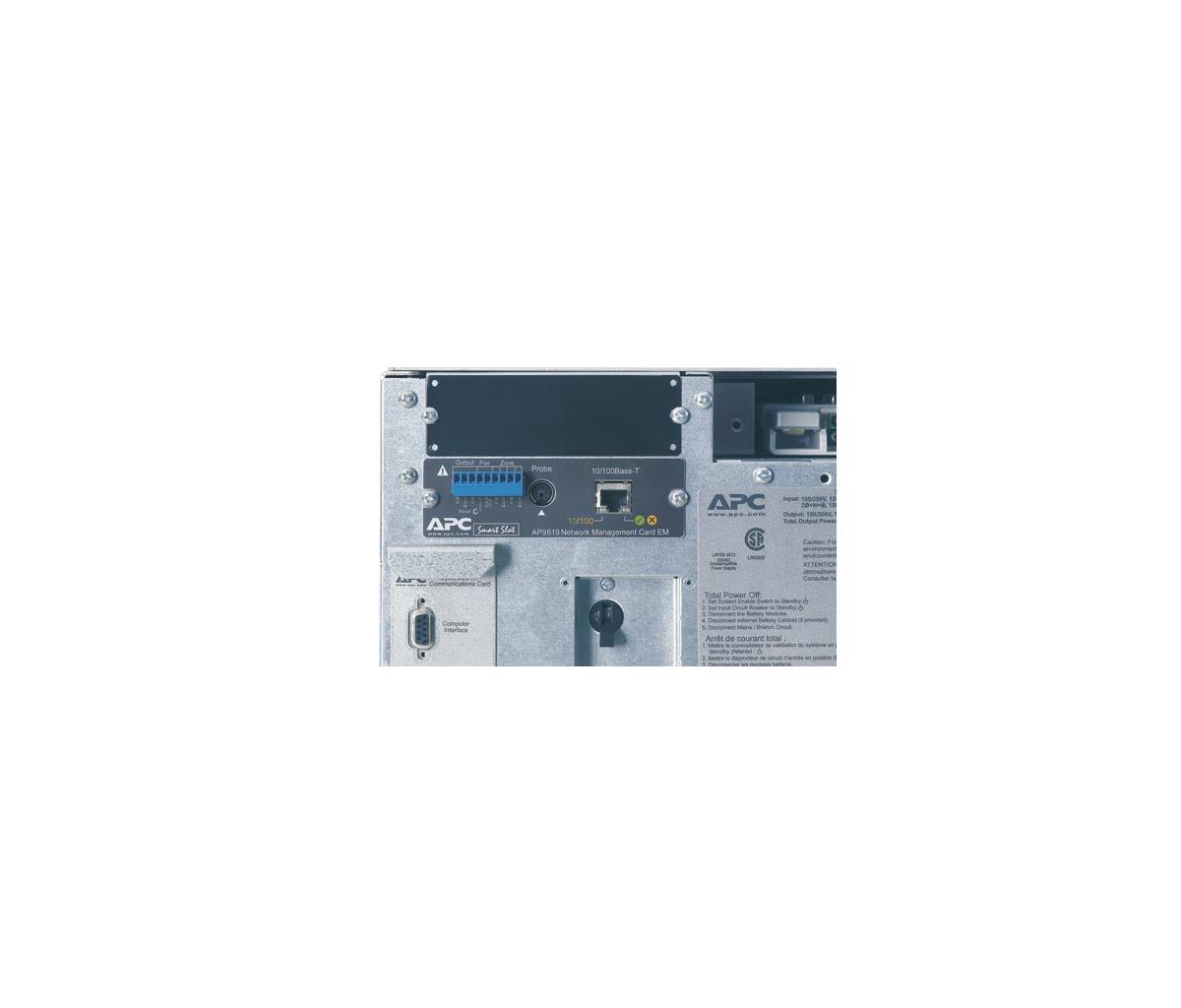

Includes: CD with software, Documentation CD, Installation guide, User Manual, Web/SNMP Management Card

Standard Lead Time: Usually in Stock

Kenmerken
Output power capacity 8 kVA
Uitgangsvermogen 5600 W
Ingang operation voltage (min) 155 V
Ingang operation voltage (max) 480 V
Frequentie 50/60 Hz
Uitgang operation voltage (min) 220 V
Uitgang operation voltage (max) 240 V
Efficientie 90 procent
Crest factor 5:1
Emergency Power Off (EPO) Ja
Output voltage THD 5 procent
Input stroom THD 7 procent
Geluidsniveau 62 dB
Poorten & interfaces
Aantal AC uitgangen 1 AC-uitgang(en)
RS-232 port 1
Accu/Batterij
Batterijtechnologie Sealed Lead Acid (VRLA)
Accu/Batterij oplaadtijd 3 uur
Design
Vormfactor Tower
Eisen aan de omgeving
Bedrijfstemperatuur (T-T) 0 - 40 øC
Temperatuur bij opslag -15 - 45 øC
Relatieve vochtigheid in bedrijf (V-V) 0 - 95 procent
Luchtvochtigheid bij opslag 0 - 95 procent
Hoogte, in bedrijf 0 - 3000 m
Hoogte bij opslag 0 - 4500 m
Safety regulation & standards
Veiligheid C-tick, CE, EN 50091-1, EN 50091-2, EN 55022 Class A, EN 55024, EN 60950, GOST, IEC 60950, VDE
Gewicht en omvang
Breedte 483 mm
Diepte 726 mm
Hoogte 671 mm
Gewicht 201,8 kg
Verpakking
Gewicht verpakking 229,6 kg
Overige specificaties
Type batterij SYBT5
Afmetingen (B x D x H) 483 x 726 x 671 mm
Netspanning, in bedrijf 230 V
Nominale input voltage 230-400 V
Afmetingen verpakking (BxDxH) 599 x 997 x 914 mm
Warranty
Base Warranty Non Non
