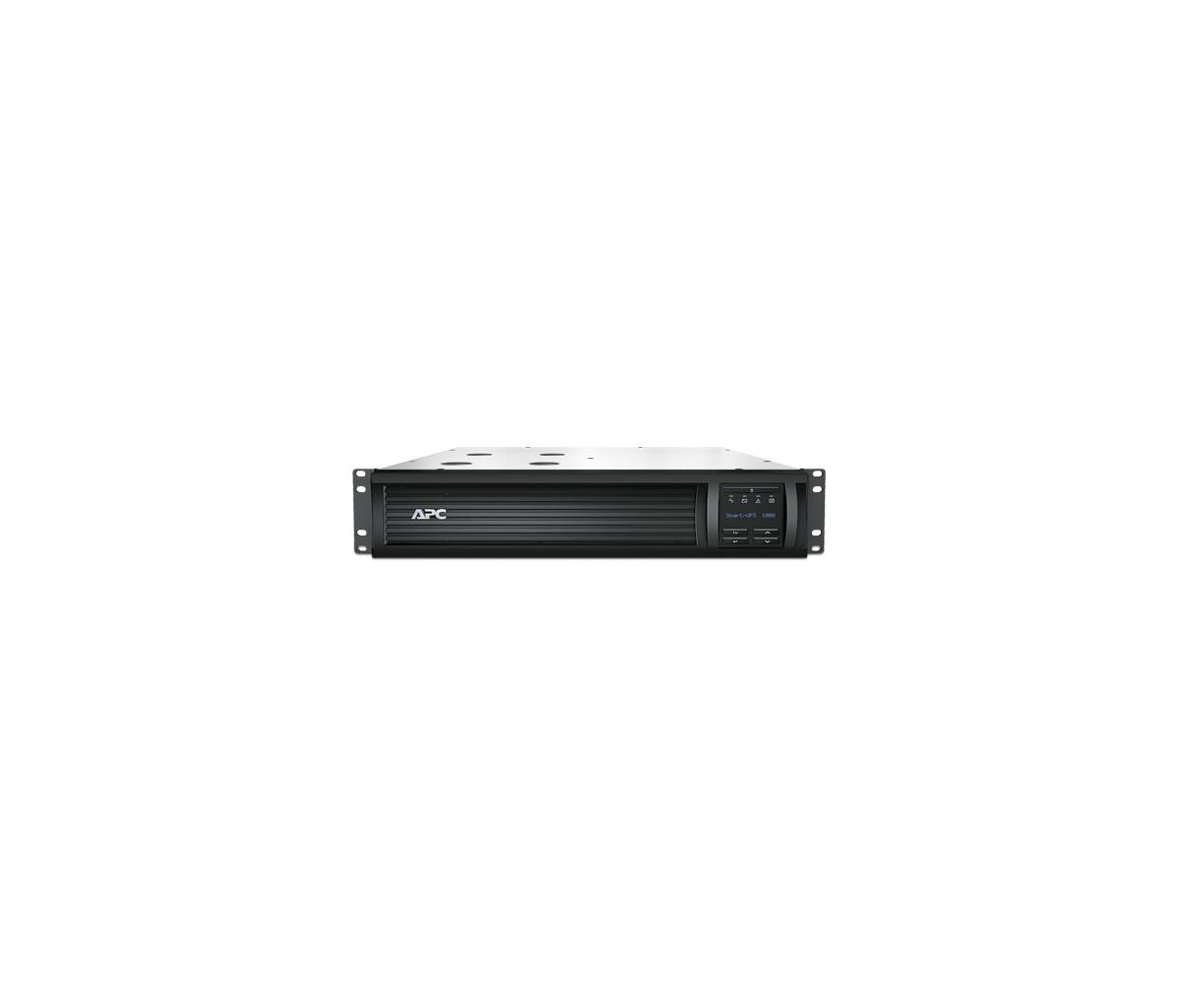

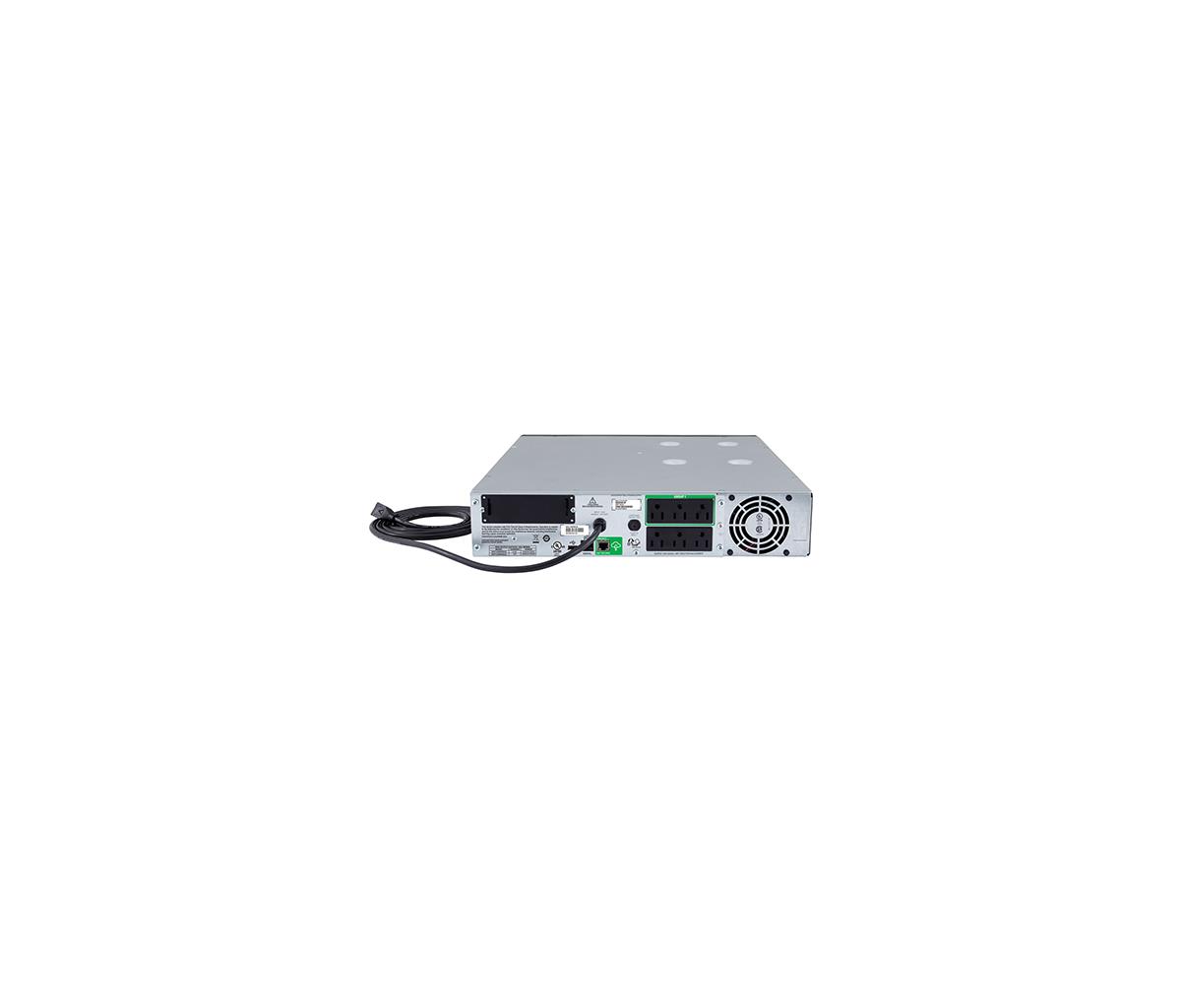

Smart-UPS 1000VA, Rack Mount, LCD 120V with SmartConnect Port
ITCurry #: 0280J530 | Article #: SMT1000RM2UC
Verwante producten
Product Informatie
Cold-start capable
Provides temporary battery power when the utility power is out.
Energy meter
Provides actual kilowatt hours of usage for energy conscious users.
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
High online efficiency
Reduces utlility costs, generates less heat.
Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Single switched outlet group
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
SmartSlot
Customize UPS capabilities with management cards.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
| Kenmerken | |
| UPS-topologie | Line-interactive |
| Output power capacity | 1 kVA |
| Uitgangsvermogen | 700 W |
| Golfvorm | Sinus |
| Ingang operation voltage (min) | 75 V |
| Ingang operation voltage (max) | 154 V |
| Frequentie | 50/60 Hz |
| Uitgang operation voltage (min) | 110 V |
| Uitgang operation voltage (max) | 127 V |
| Automatic Voltage Regulation (AVR) | Ja |
| Surge energy rating | 680 J |
| Responstijd | 10 ms |
| Crest factor | 3:1 |
| Geluidsniveau | 41 dB |
| Stroomspanning bescherming | Kortsluiting |
| Geluidsalarm(en) | Ja |
| Web-gebaseerd management | Ja |
| Hoorbare alarmstanden | Alarm bij werking op batterij, Alarm bij laag batterijniveau, Alarm bij overbelasting |
| Auto-herstart | Ja |
| Poorten & interfaces | |
| Stopcontacttypes | NEMA 5-15R |
| Stekker | NEMA 5-15P |
| Aantal AC uitgangen | 6 AC-uitgang(en) |
| USB-poort | Ja |
| Seri‰le interface | Ja |
| SmartSlot | Ja |
| Accu/Batterij | |
| Batterijtechnologie | Sealed Lead Acid (VRLA) |
| Ondersteund aantal accu's/batterijen | 1 |
| Acculevensduur (max) | 6 jaar |
| Accu/Batterij oplaadtijd | 3 uur |
| Hot-swap batterij | Ja |
| Automatische batterij test | Ja |
| Koude start | Ja |
| Design | |
| Vormfactor | Rackmontage |
| Rackcapaciteit | 2U |
| Snoerlengte | 2,44 m |
| Kleur van het product | Zwart |
| Type beeldscherm | LCD |
| LED-indicatoren | Status |
| Certificering | REACH |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Temperatuur bij opslag | -15 - 45 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 0 - 95 procent |
| Luchtvochtigheid bij opslag | 0 - 95 procent |
| Hoogte, in bedrijf | 0 - 3000 m |
| Hoogte bij opslag | 0 - 15000 m |
| Technische details | |
| Duurzaamheidscertificaten | ENERGY STAR |
| Compliance certificates | RoHS |
| Gewicht en omvang | |
| Breedte | 432 mm |
| Diepte | 477 mm |
| Hoogte | 86 mm |
| Gewicht | 25,3 kg |
| Breedte verpakking | 590 mm |
| Diepte verpakking | 610 mm |
| Hoogte verpakking | 235 mm |
| Gewicht verpakking | 30,9 kg |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 85078000 |
| Warranty | |
| Base Warranty | Non Non |
