Product Informatie

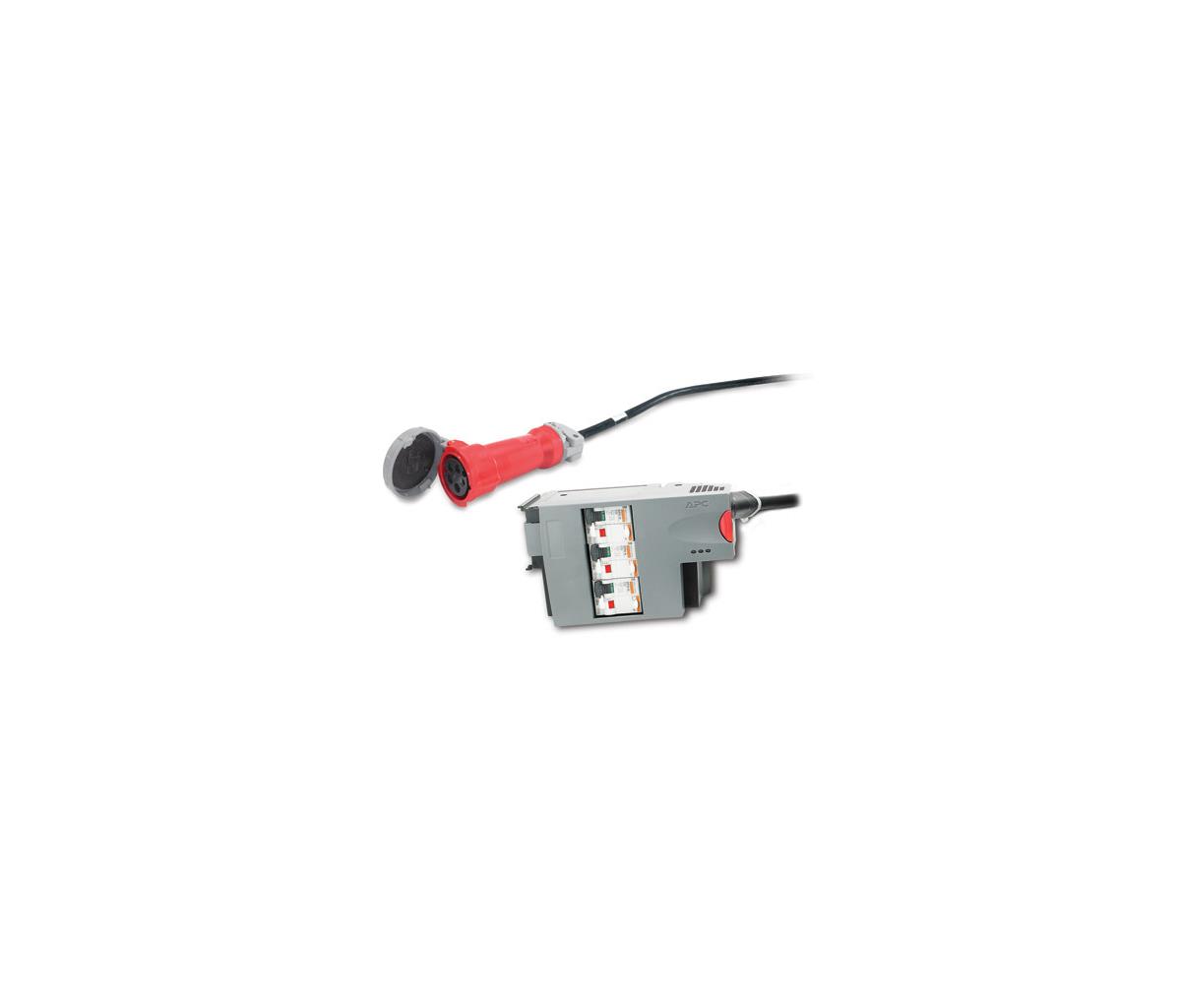

APC Modular Power Accessories , Input: 400V 3PH , Input Connections: IEC 309 16A 3P+N+PE , Output: 400V 3PH , Output Connections: IEC 309 16A.
Includes: Installation guide.
- Built-in Web/SNMP management
Full-featured management via a Web browser as well as comprehensive management from a Network Management System.
- Low Cost Power Distribution
Provides a number of outlets to bring power to rack equipment at an affordable price.
- Smallest footprint
Minimizes your real estate expenses
- System mobility
PDU equipment can easily be relocated to accommodate a changing data center environment.
- Current Monitoring
Monitors the aggregate current draw per power distribution unit.
- Local and web-based monitoring
Status available to customers both in the data center and remotely
- Multiple distribution options
Superior design flexibility enables a wide range of customer requirements to be addressed.
- Safety
Enhance user safety with isolation at all touch points and with positive locking mechanisms that reduce the risk of accidental disconnection
Manageability
- Power monitoring
Measure and monitor power consumption and usage with branch circuit monitoring and output metering, which are included at no extra cost
- Quick status information LEDs
Access status information about the performance of the Power Distribution Module
Convenience
- Toolless installation of breakers
Install factory-assembled Power Distribution Modules in under ten minutes - no tools are required
- Global product offering
Standardization of the power distribution system across all corporate locations is easy - a variety of 1-phase and 3-phase Power Distribution Modules address the unique power requirements of data centers around the world
| Poorten & interfaces | |
| Input-connectietype | IEC 309 16A 3P+N+PE |
| Output-aansluitingen | 1 x IEC 309 16A |
| Kenmerken | |
| Snoerlengte | 5 m |
| Energie | |
| Nominale input voltage | 400 V |
| Netspanning, in bedrijf | 400 V |
| Maximale ingang stroom per fase | 16 A |
| Maximum totaalstroomverbruik per fase | 16 A |
| Certificaten | |
| Certificering | CE,VDE |
| Gewicht en omvang | |
| Gewicht | 2,9 kg |
| Verpakking | |
| Afmetingen verpakking (BxDxH) | 432 x 406 x 254 mm |
| Gewicht verpakking | 3,8 kg |
| Breedte verpakking | 432 mm |
| Diepte verpakking | 406 mm |
| Hoogte verpakking | 254 mm |
| Warranty | |
| Base Warranty | Non Non |
