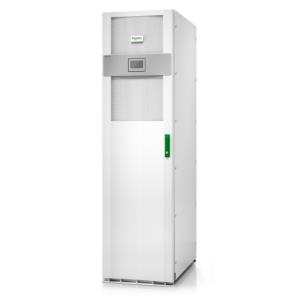

Galaxy VS UPS 20kW 400V with N+1 Power Module, For 5 Smart Modular 9Ah Battery Strings, Start-up 5x8
ITCurry #: 0280J592 | Article #: GVSUPS20KR0B5HS-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Highly efficient, easy-to-deploy 20kW, 400V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. This UPS is for up to 5 smart modular high capacity battery strings, but is supplied without batteries, so you can easily customize the battery runtime. Includes 5x8 start-up service and one additional power module for N+1 redundancy.
Compatible with Schneider Electric's lithium ion battery solution
Reduces system footprint and weight, cooling and maintenance requirements, and total cost of ownership; offers double the life of VRLA batteries; and improves backup storage predictability and manageability.
Parallel-redundant capable
Power the connected equipment with multiple uninterruptible power supplies to increase system redundancy
Built-in backfeed protection
Full built-in backfeed contactor ensures that no electricity is sent back to the grid.
Parallel-capacity capable
Increases total power capacity by using multiple uninterruptible power supplies simultaneously.
Embedded Network Management Card
Allows you to remotely manage alert thresholds and monitor your UPS over EcoStruxure IT, Web, SNMP, or Modbus TCP and Modbus RTU.
Flexible DC bus
Optimizes battery sizing and supports a wide range of energy storage technologies, including VRLA, Li-ion, and NiCd batteries.
EcoStruxure IT Expert
From your smartphone or computer, connect to our cloud-based, do-it-yourself monitoring system that collects, organizes, and distributes critical alerts and key information in real time, providing a unified view of even highly distributed physical infrastructure environments. Optimize your uptime and maintenance planning, and anticipate infrastructure issues before they occur with advanced analytics and performance benchmarking. Available in select countries.
Multiple levels of service offers
With the option of packages or individual service components, our services are structured to allow you to pick and choose what you would like Schneider Electric to do for you.
Modular UPS design
Provides design redundancy and fast serviceability with improved mean time to repair, via self-diagnosing, field-replaceable modules.
Front-access servicing
Simplifies installation and UPS maintenance while minimizing space requirements.
Input Power Factor Correction
Minimizes installation costs by enabling the use of smaller generators and cabling.
Compact UPS
High-density technology and full front access make this UPS a footprint saver well suited for confined spaces.
Wide input voltage range
Designed for harsh electrical environments to save battery life.
Robust operation
No power derating in kW up to 40 degrees C or 104 degrees F.
High efficiency in double conversion mode
Consistently high power quality at high efficiency, even at low load levels. Any disturbances on the distribution waveform are regenerated via the zero transfer time AC to DC then DC to AC conversion process. The battery is only used as a back-up source.
ECOnversion mode
Operating mode that ensures ultra high efficiency while charging the batteries, conditioning the load power factor and ensuring a Class 1 output voltage regulation.
| Kenmerken | |
| UPS-topologie | Dubbele conversie (online) |
| Output power capacity | 20 kVA |
| Uitgangsvermogen | 20000 W |
| Golfvorm | Sinus |
| Ingang operation voltage (min) | 340 V |
| Ingang operation voltage (max) | 460 V |
| Frequentie | 40/70 Hz |
| Uitgang operation voltage (min) | 340 V |
| Uitgang operation voltage (max) | 460 V |
| Output frequentie | 50/60 Hz |
| Uitgangsspanningsregeling | 3 procent |
| Stroom (max.) | 36 A |
| Input vermogensfactor | 0,99 |
| ECO mode | Ja |
| Output voltage THD | 5 procent |
| Input stroom THD | 6 procent |
| Geluidsniveau | 54 dB |
| Geluidsalarm(en) | Ja |
| Accu/Batterij | |
| Batterijtechnologie | Sealed Lead Acid (VRLA) |
| Accu/Batterij voltage | 480 V |
| Laadstroom | 54 A |
| Design | |
| Kleur van het product | Wit |
| Type beeldscherm | LCD |
| Internationale veiligheidscode (IP) | IP20 |
| Certificering | IEC 62040-1-1, IEC 62040-2, OSHPD |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Temperatuur bij opslag | -15 - 40 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 0 - 95 procent |
| Hoogte, in bedrijf | 0 - 1005,8 m |
| Hoogte bij opslag | 0 - 3048 m |
| Gewicht en omvang | |
| Breedte | 550 mm |
| Diepte | 847 mm |
| Hoogte | 197 mm |
| Gewicht | 250 kg |
| Breedte verpakking | 755 mm |
| Diepte verpakking | 1010 mm |
| Hoogte verpakking | 2082 mm |
| Gewicht verpakking | 250 kg |
| Warranty | |
| Base Warranty | Non Non |
| Verpakking | |
| Snelle installatiehandleiding | Ja |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 85078000 |
