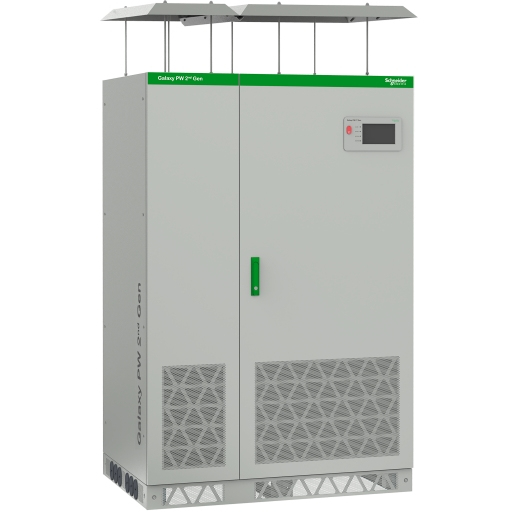

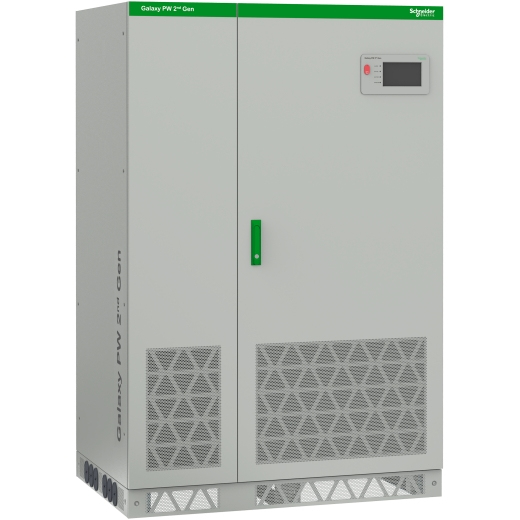

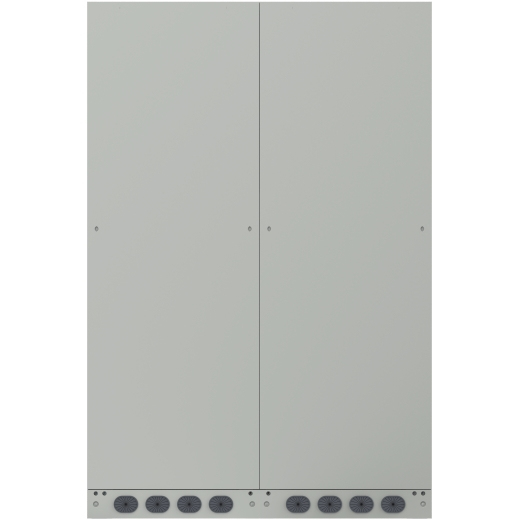

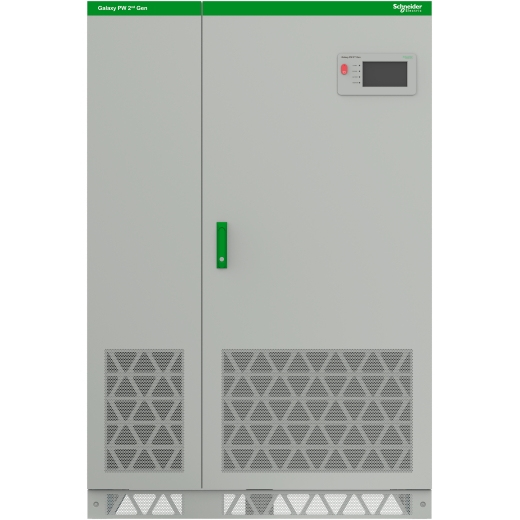

Galaxy PW 2nd Gen 50kVA 3:1 UPS 220VAC 12 Pulse 220VDC with Input Transformer Startup 5x8

ITCurry #: 0280K781 | Article #: EPWUPS50KU12PTS
Prijs:
16563,10 Excl. btw
Levering in Benelux:
GRATIS Levering.
Nu niet op voorraad. Bel ons!

Verwante producten

slide 7 to 11 of 14

Product Informatie

Network management capability
Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet.

Parallel-capacity capability
Increases total power capacity by using multiple uninterruptible power supplies simultaneously.
Generator compatible
Ensures clean, uninterrupted power to the loads in the event of an extended power outage
Dual mains input
Increases availability by allowing the UPS to be connected to two separate power sources.

Warranty
Base Warranty Non Non
Kenmerken
UPS-topologie Dubbele conversie (online)
Output power capacity 50 kVA
Uitgangsvermogen 40 W
Golfvorm Sinus
Ingang operation voltage (min) 380 V
Ingang operation voltage (max) 415 V
Frequentie 45/55 Hz
Uitgang operation voltage (min) 380 V
Uitgang operation voltage (max) 415 V
Output frequentie 50 Hz
Aantal input fases 3
Aantal output fases 3
Geluidsniveau 70 dB
Geluidsalarm(en) Ja
Design
Vormfactor Tower
Kleur van het product Grijs
Type beeldscherm LCD
Internationale veiligheidscode (IP) IP31
Eisen aan de omgeving
Bedrijfstemperatuur (T-T) 0 - 40 øC
Temperatuur bij opslag -25 - 55 øC
Relatieve vochtigheid in bedrijf (V-V) 0 - 95 procent
Luchtvochtigheid bij opslag 0 - 95 procent
Hoogte, in bedrijf 0 - 1000,05 m
Hoogte bij opslag 0 - 9999,9 m
Technische details
Naleving van duurzaamheid Ja
Certificaten van naleving CE, RoHS
Gewicht en omvang
Breedte 1200 mm
Diepte 800 mm
Hoogte 1800 mm
Gewicht 876 kg
