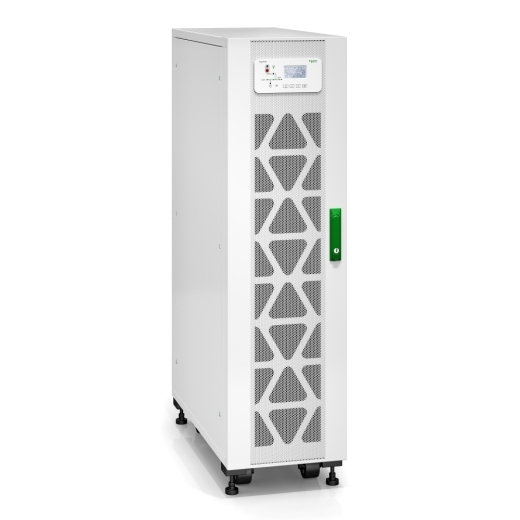

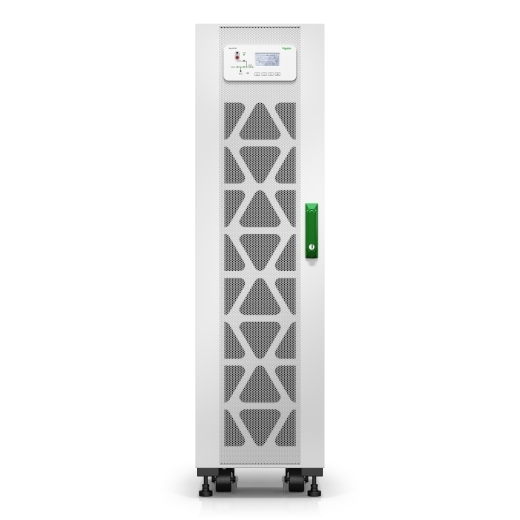

Easy UPS 3S 20 kVA 400 V 3:1 UPS with Internal Batteries - 15 Minutes Runtime

ITCurry #: 0280H732 | Article #: E3SUPS20K3IB1
Prijs:
7059,50 Excl. btw
Levering in Benelux:
GRATIS Levering.
Nu niet op voorraad. Bel ons!

Verwante producten

slide 7 to 11 of 14

Product Informatie

Easy UPS 3S 20 kVA 400 V (3:1)

Warranty
Base Warranty Non Non
Kenmerken
UPS-topologie Dubbele conversie (online)
Output power capacity 20 kVA
Uitgangsvermogen 20000 W
Ingang operation voltage (min) 304 V
Ingang operation voltage (max) 477 V
Frequentie 45/65 Hz
Uitgang operation voltage (min) 220 V
Uitgang operation voltage (max) 240 V
Stroom (max.) 37 A
Aantal input fases 3
Input vermogensfactor 0,99
Output vermogensfactor 1
Crest factor 3:1
ECO mode Ja
Emergency Power Off (EPO) Ja
Output voltage THD 3 procent
Input stroom THD 5 procent
Accu/Batterij
Batterijtechnologie Sealed Lead Acid (VRLA)
Accu/Batterij voltage 240 V
Ondersteund aantal accu's/batterijen 2
Typische backup tijd op volledige lading 15 min
Design
Vormfactor Tower
Kleur van het product Wit
Type beeldscherm LCD
LED-indicatoren Ja
Internationale veiligheidscode (IP) IP20
Certificering EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM
Eisen aan de omgeving
Bedrijfstemperatuur (T-T) 0 - 40 øC
Temperatuur bij opslag -15 - 40 øC
Relatieve vochtigheid in bedrijf (V-V) 0 - 95 procent
Luchtvochtigheid bij opslag 0 - 95 procent
Hoogte, in bedrijf 0 - 1000 m
Hoogte bij opslag 0 - 15240 m
Technische details
Naleving van duurzaamheid Ja
Certificaten van naleving CE, RoHS
Gewicht en omvang
Breedte 380 mm
Diepte 907 mm
Hoogte 1400 mm
Gewicht 177 kg
Breedte verpakking 563 mm
Diepte verpakking 1014 mm
Hoogte verpakking 1640 mm
Gewicht verpakking 186 kg
Logistieke gegevens
Code geharmoniseerd systeem (HS) 85078000
