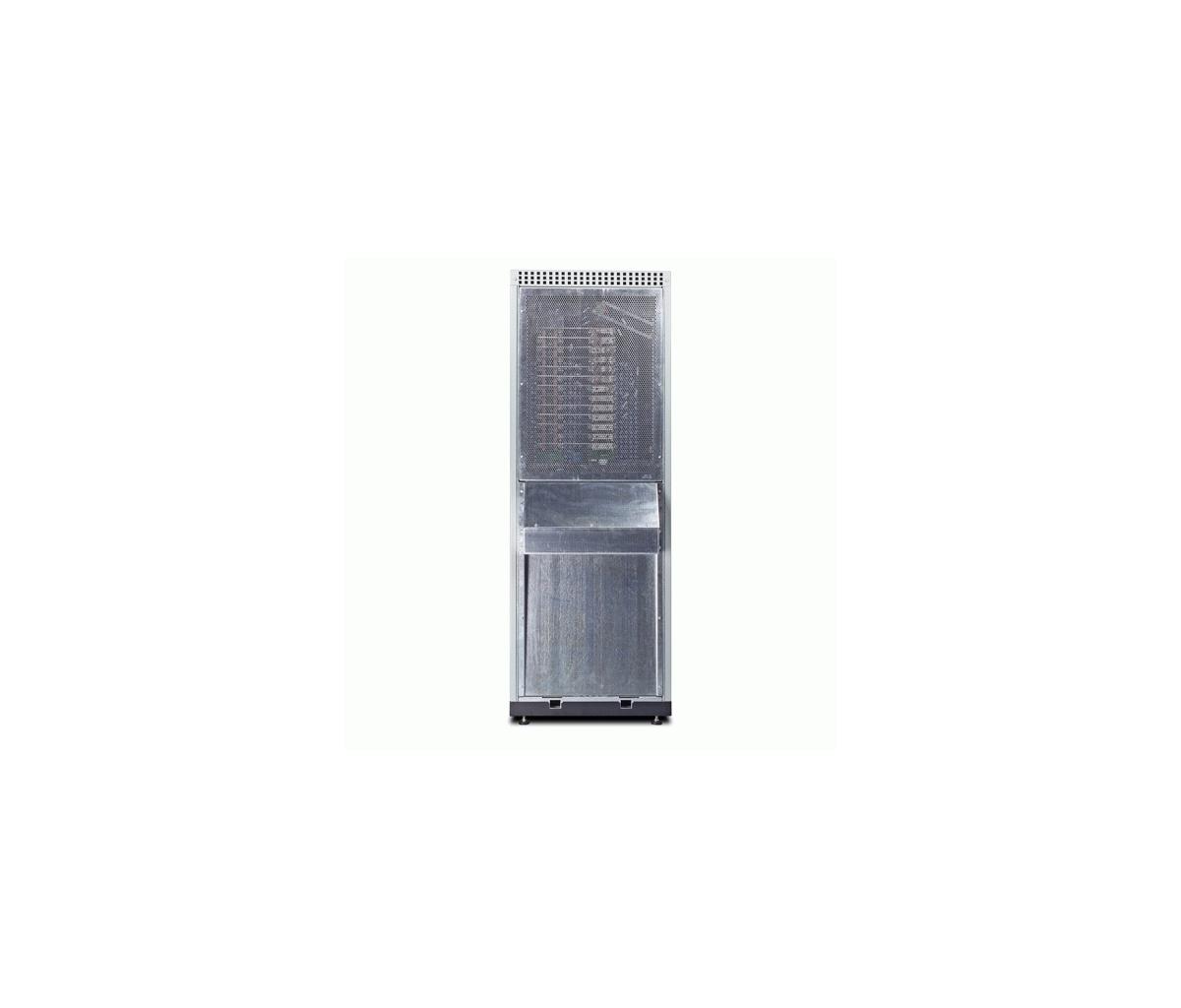

AIS 3100 40kVA 230V Output 3:1 w/4 Batt Modules, Start-Up 5X8, Internal Maintenance Bypass
ITCurry #: 0280L738 | Article #: ISVT40K3I4B4S-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Availability
Dual mains input
Increases availability by allowing the UPS to be connected to two separate power sources.
Battery modules connected in parallel
Delivers higher availability through redundant batteries.
Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS overload condition or fault.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Generator compatible
Ensures clean, uninterrupted power to protected equipment when generator power is used.
Serviceability
Manual maintenance bypass
Reduces installation costs by eliminating the need for an external mechanical bypass.
Front-access servicing
Simplifies installation and maintenance while minimizing space requirements.
Battery replacement without tools
Allows quick, easy battery replacement.
User-replaceable air filters
Enables quick and simple replacement of air filters.
| Kenmerken | |
| Output power capacity | 40 kVA |
| Uitgangsvermogen | 32000 W |
| Frequentie | 40/70 Hz |
| Emergency Power Off (EPO) | Ja |
| Geluidsalarm(en) | Ja |
| Accu/Batterij | |
| Accu/Batterij oplaadtijd | 5 uur |
| Design | |
| Kleur van het product | Grijs |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Temperatuur bij opslag | -50 - 40 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 0 - 95 procent |
| Luchtvochtigheid bij opslag | 0 - 95 procent |
| Hoogte, in bedrijf | 0 - 999,9 m |
| Hoogte bij opslag | 0 - 15000 m |
| Certificaten | |
| Certificering | CE,EN 50091-2,EN/IEC 62040-3,EN/IEC 62040-1-1,IEC 61000-3-2,IEC 61000-3-3,ISO 14001,ISO 9001,VFI-SS-111 |
| Gewicht en omvang | |
| Gewicht | 656 kg |
| Verpakking | |
| Gewicht verpakking | 686 kg |
| Overige specificaties | |
| Type batterij | VRLA |
| Output-aansluitingen | 1x Hard Wire 3-wire (H N + G) 1x Screw Terminals |
| Input-connectietype | Hard Wire 5-wire (3PH + N + G) |
| Afmetingen (B x D x H) | 523 x 854 x 1500 mm |
| Netspanning, in bedrijf | 230 V |
| Output Voltage voetnoot | Configurable for 220: 230 or 240 nominal output voltage |
| Nominale input voltage | 400 V |
| Afmetingen verpakking (BxDxH) | 650 x 1062 x 1643 mm |
| Warranty | |
| Base Warranty | Non Non |
