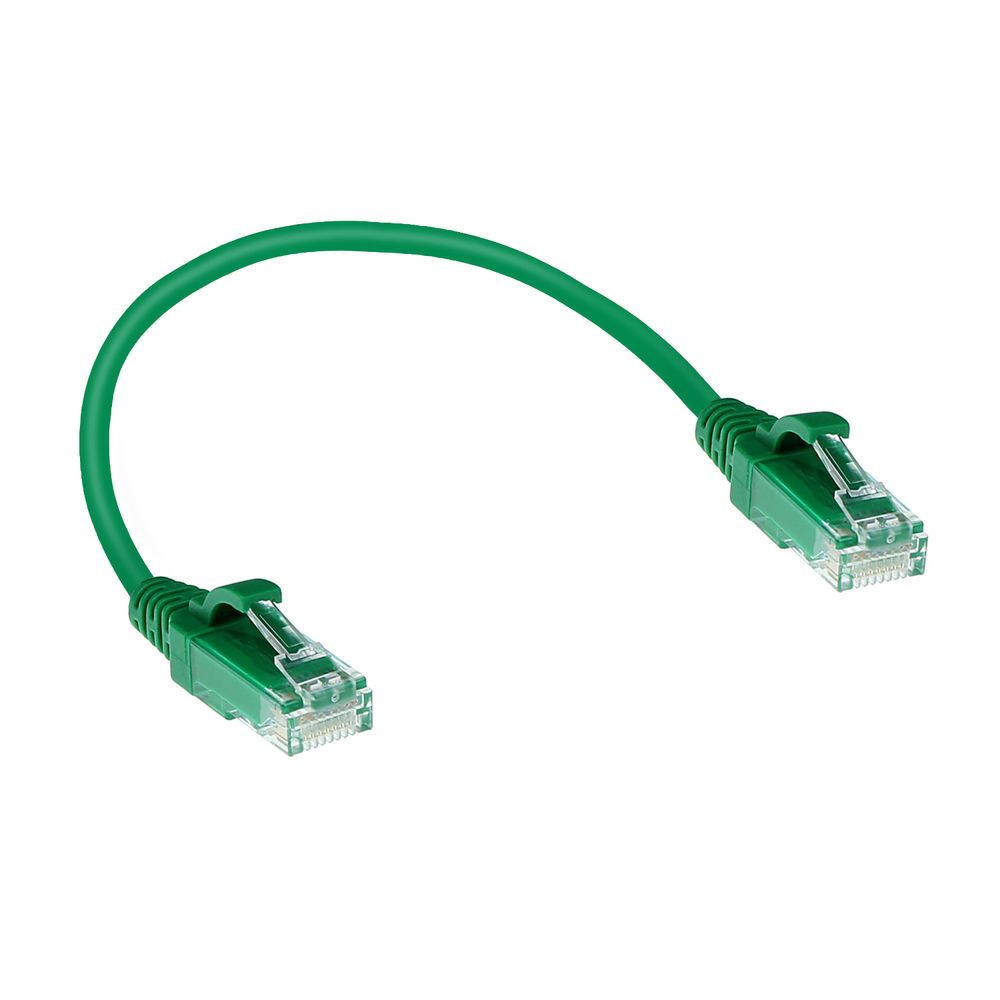

Slimline Patch Cable - CAT6 - U/UTP - 15cm - Green
ITCurry #: T4056745 | Article #: DC9730-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie

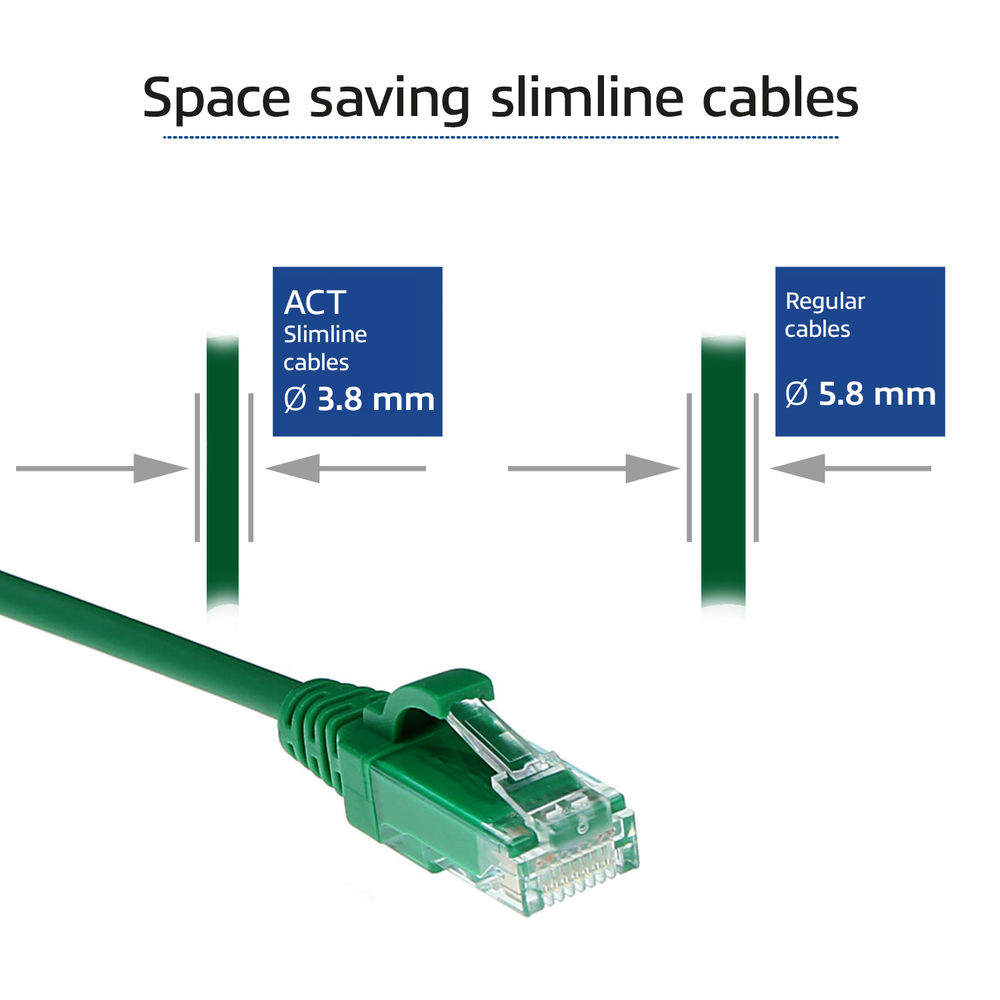

CAT6 U/UTP slimline datacenter ethernet cables are smaller in diameter (3.8mm vs 5.9mm) than regular CAT 6 patch cords. The bending radius is lower in comparison with regular patchcords. All this results in a better airflow in the server rack/network cabinet.
Although ISO/IEC and the TIA standards describe the use of patch cords between 22 and 26 AWG, it is possible to use 28 AWG patch cables. This results in a higher attenuation, particularly at higher frequencies.
ACT advises a maximum bundle size of 24 cables in PoE applications. In this case the temperature of the cables, that are delivering PoE deployments, will not increase. The standard, ANSI TSB-184-A, limits the maximum temperature increasement, to less than 15 degrees Celsius above the ambient temperature, for the center cable in a bundle.
| Kenmerken | |
| Kleur van het product | Groen |
| Snoerlengte | 0,15 m |
| Kabel standaard | Cat6 |
| Kabelafscherming | U/UTP (UTP) |
| Aansluiting 1 | RJ-45 |
| Aansluiting 2 | RJ-45 |
| Aansluiting 1 type | Mannelijk |
| Aansluiting 2 type | Mannelijk |
| Connector 1 vormfactor | Recht |
| Connector 2 vormfactor | Recht |
| Contact geleider materiaal | Goud |
| Materiaal buitenmantel | Halogeenvrij |
| Kabelvorm | Rond |
| Geleidermateriaal | Koper |
| AWG draad omvang | 28 |
| Frequentie | 250 MHz |
| Krommingsstraal (min) | 1,5 cm |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | -20 - 60 øC |
| Gewicht en omvang | |
| Outer diameter | 3,8 mm |
| Verpakking | |
| Aantal per verpakking | 1 stuk(s) |
| Technische details | |
| Naleving van duurzaamheid | Ja |
| Duurzaamheidscertificaten | CE, RoHS |
| Garantieperiode | 5 jaar |
| Certificaten van naleving | CE, RoHS |
| Warranty | |
| Base Warranty | Non Non |
