Patch Cable - CAT6A - LSZH U/FTP - 50cm - Purple
ITCurry #: T4056689 | Article #: DC7300-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie

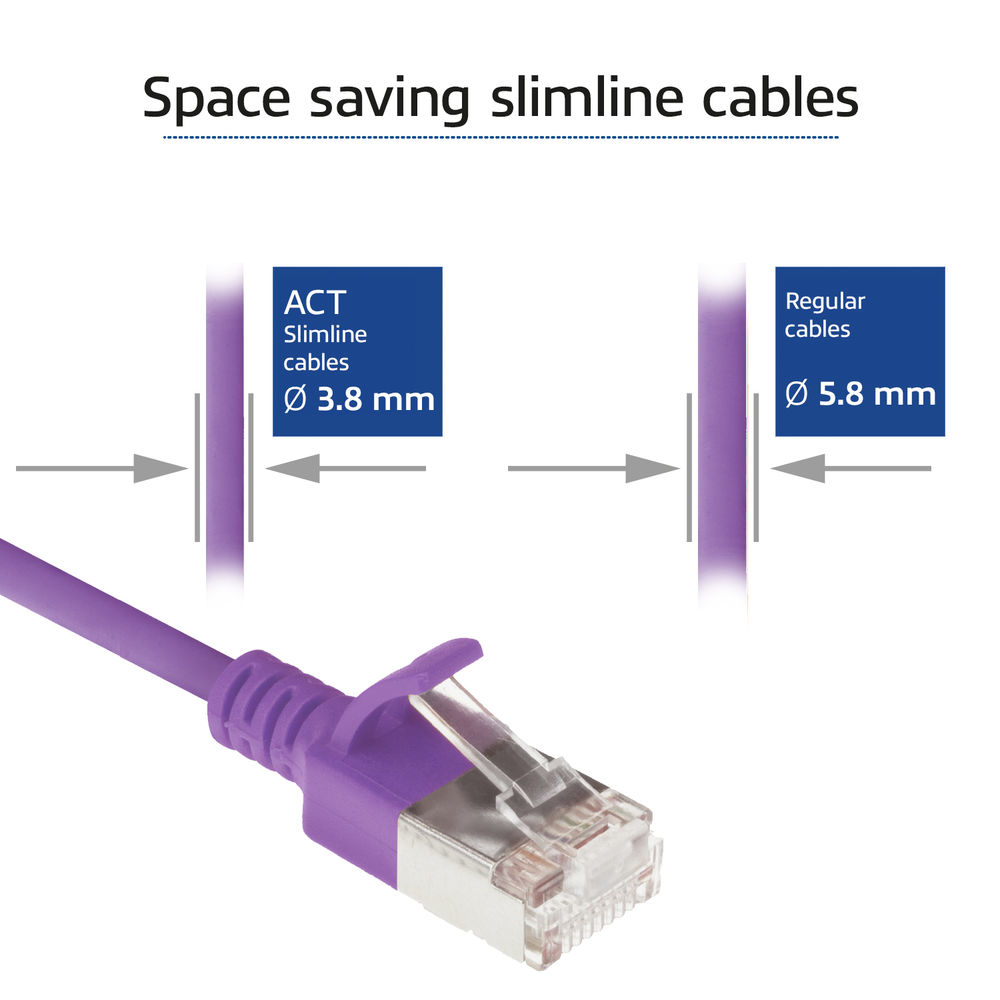

CAT6A U/FTP slimline datacenter ethernet cables are smaller in diameter (3.8mm vs 5.9mm) than regular CAT 6A patch cords. The bending radius is lower in comparison with regular patch cords. This results in a better airflow in the server rack/network cabinet.
Although, ISO/IEC and TIA standards describe the use of patch cords between 22 and 26 AWG, it is possible to use 32 AWG patch cables. This results in a higher attenuation, particularly at higher frequencies.
ACT advises a maximum bundle size of 24 cables in PoE applications. In this case the temperature of the cables, that are delivering PoE deployments, will not increase. The standard, ANSI TSB-184-A, limits the maximum temperature increasement, to less than 15 degrees Celsius above the ambient temperature, for the center cable in a bundle.
| Warranty | |
| Base Warranty | Non Non |
| Kenmerken | |
| Kleur van het product | Paars |
| Snoerlengte | 0,5 m |
| Kabel standaard | Cat6a |
| Kabelafscherming | U/FTP (STP) |
| Aansluiting 1 | RJ-45 |
| Aansluiting 2 | RJ-45 |
| Aansluiting 1 type | Mannelijk |
| Aansluiting 2 type | Mannelijk |
| Connector 1 vormfactor | Recht |
| Connector 2 vormfactor | Recht |
| Contact geleider materiaal | Goud |
| Materiaal buitenmantel | Halogeenvrij |
| Kabelvorm | Rond |
| Geleidermateriaal | Koper |
| AWG draad omvang | 32 |
| Frequentie | 500 MHz |
| Krommingsstraal (min) | 1,5 cm |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | -20 - 75 øC |
| Gewicht en omvang | |
| Outer diameter | 3,8 mm |
| Verpakking | |
| Aantal per verpakking | 1 stuk(s) |
| Technische details | |
| Naleving van duurzaamheid | Ja |
| Garantieperiode | 5 jaar |
| Certificaten van naleving | CE, RoHS |
