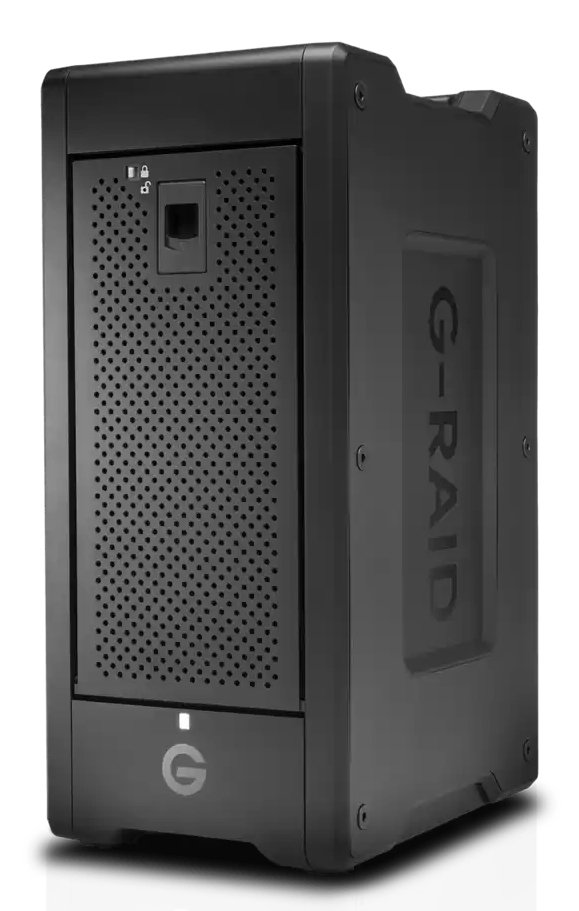

G-RAID Shuttle 8 - 8-bay hardware RAID solution - Thunderbolt 3 / USB-C - 208TB
ITCurry #: 60508236 | Article #: SDPH48H-208T-MBAAB-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Rely on a SanDisk G-RAID SHUTTLE 8 with Thunderbolt 3 from Location to Studio and Back
A transportable 8-bay hardware RAID solution with Thunderbolt™ 3 (40Gbps) and USB-C™ (10Gbps) compatibility offering content professionals up to 208TB1 of colossal capacity and high-powered performance for consolidated backup, super-fast access, and real-time video editing. Supports multi-stream 4K, 8K, and VR workflows, RAID 0, 1, 5, 6, 10, 50, and 60 configurations, and provides transfer rates up to 1700MB/s read and 1500MB/s write2 in default RAID 5 (208TB model only). Along with Ultrastar enterprise-class hard drives inside for enhanced reliability and a trusted 5-year limited warranty, the G-RAID SHUTTLE 8 is the ultimate storage solution for demanding video workflows on location and in the studio.
Colossal capacity in transportable design
With up to 208TB1 of high-powered RAID storage in an easy-to-transport design, content creators get a premium solution for their demanding workflows on location or in the studio with the G-RAID SHUTTLE 8.
High-speed data transfers
With up to 1700MB/s read and 1500MB/s write2 speeds in default RAID 5 (208TB model only), and support for multi-stream 4K, 8K and VR workflows, you can quickly move or copy all your media so you can spend less time waiting and more time creating with high-speed data transfers using the Thunderbolt™ 3 (40Gbps) port.
Built-in hardware RAID
For balanced performance, G-RAID SHUTTLE 8 comes ready to go in RAID 5. Or, select RAID 0, 1, 6, 10, 50, 60 or JBOD for ultimate flexibility.
Removable, Enterprise-class Ultrastar® hard drives
For all your demanding workloads and mission-critical footage, you can depend on the power and enhanced reliability of eight (8) removable Enterprise-class Ultrastar hard drives inside.
Daisy-chaining for up to 5 additional devices
With dual Thunderbolt 3 ports, you can conveniently daisy chain up to 5 additional devices, keeping you connected to multiple drives, 4K displays, and more, through a single connection to your computer.
5-Year limited warranty
Backed by a 5-year limited warranty, you can be confident in the reliable storage of the G-RAID SHUTTLE 8 for years to come.
| Storage | |
| Storage drives installed | Yes |
| Installed storage drive type | HDD |
| Total installed storage capacity | 208 TB |
| Supported storage drive types | HDD |
| Number of storage drives supported | 8 |
| RAID levels | 0, 1, 5, 6, 10, 50, 60 |
| Data transfer rate | 40 Gbit/s |
| Ports & interfaces | |
| USB connectivity | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Thunderbolt technology | Yes |
| Thunderbolt ports quantity | 1 |
| Thunderbolt version | 3 |
| Design | |
| Device class | Large Enterprise Business |
| Chassis type | Desktop |
| Internal | No |
| Product colour | Black |
| Cable lock slot | Yes |
| Cooling | Yes |
| Number of fans | 2 fan(s) |
| Certification | FCC-ICES, CE, RCM, BIS, VCCI, KC, EAC, SABER, LoA, BSMI, UAE, UKCA |
| System requirements | |
| Mac compatibility | Yes |
| Mac operating systems supported | Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma |
| Windows operating systems supported | Windows 10, Windows 11 |
| Weight & dimensions | |
| Width | 175 mm |
| Depth | 245.1 mm |
| Height | 385.1 mm |
| Weight | 12.3 kg |
| Packaging content | |
| Cables included | AC, Thunderbolt |
| Power cables quantity | 1 |
| Other features | |
| Warranty period | 5 year(s) |
| Warranty | |
| Base Warranty | Non Non |
