G-RAID Shuttle 4 - 4-bay hardware RAID solution - Thunderbolt 3 / USB-C - 104TB
ITCurry #: 60508235 | Article #: SDPH34H-104T-MBAAB-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

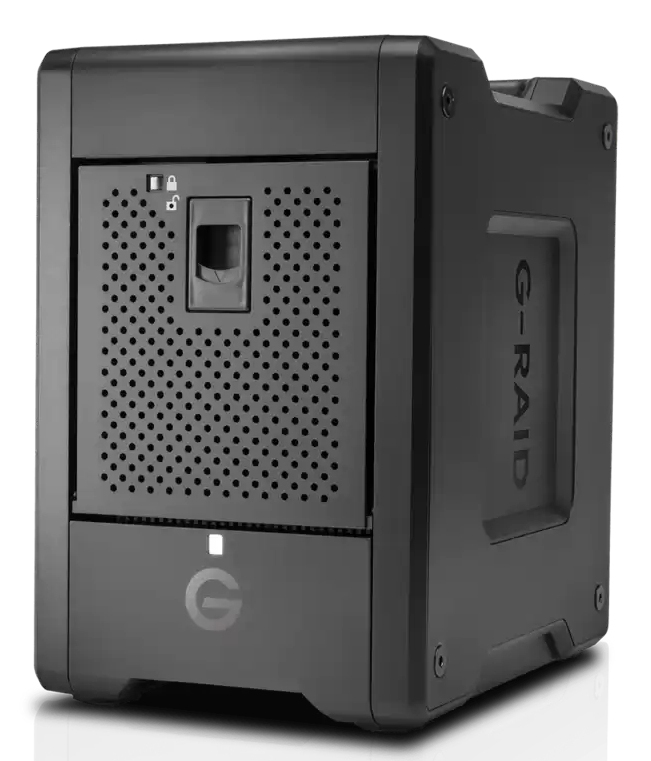

G-RAID SHUTTLE 4. Transportable, Hardware RAID Powerhouse
A transportable 4-bay hardware RAID solution with Thunderbolt™ 3 (40Gbps) and USB-C™ (10Gbps) interfaces offering content professionals up to 104TB1 of massive capacity and high-powered performance for consolidated backup, super-fast access, and real-time video editing. Supports multi-stream 4K, 8K, and VR workflows, RAID 0, 1, 5, and 10 configurations, and provides transfer rates up to 700MB/s read and 850MB/s write2 in default RAID 5 (96TB model only). Along with Ultrastar enterprise-class hard drives inside for enhanced reliability and a trusted 5-year limited warranty, the G-RAID SHUTTLE 4 is the ultimate storage solution for demanding video workflows on location and in the studio.
Ideal Capacities for Demanding Production Workflows
Available in capacities up to 104TB1, the G-RAID SHUTTLE 4 device delivers high performance storage to save all your favorite 4K or 8K high dynamic range (HDR) and high frame rate (HFR) footage in a single location.
Removable, Ultrastar Enterprise-class 7200RPM Hard Drives
For all your demanding workloads and mission-critical footage, you can depend on the power and enhanced reliability of four (4) removable Ultrastar enterprise-class 7200RPM hard drives inside.
Up To 700MB/s sustained read speeds in RAID 5
With speeds up to 700MB/s read and 850MB/s write2 in default RAID 5 (96TB model only), the G-RAID SHUTTLE 4 device delivers the performance you need to quickly ingest content and natively edit footage to make changes in real-time.
Transportable Design
Built for easy travel between your on-site production location and to the studio for post-production, the G-RAID SHUTTLE 4 device delivers powerful, transportable storage to help improve your workflow efficiency, wherever you are.
Optimized Support For Multi-Stream Workflows
Built for multi-stream 4K and 8K production workflows, the G-RAID SHUTTLE 4 device offers the bandwidth to support multi camera editing in real time, render footage with multi-layer effects, and quickly export in an efficient workflow.
Built-in Hardware RAID
For maximum performance, the SanDisk G-RAID SHUTTLE 4 comes in RAID 5 out of the box and supports RAID 0, 1, and 10 to provide a versatile and flexible storage solution.
Daisy-chaining for up to 5 Additional Devices
With dual Thunderbolt 3 ports, you can conveniently daisy chain up to 5 additional devices, keeping you connected to multiple drives, 4K displays and more, through a single connection to your computer.
5-Year Limited Warranty
Backed by a 5-year limited warranty, you can be confident in the reliable storage of the G-RAID SHUTTLE 4 for years to come.
| Storage | |
| Storage drives installed | Yes |
| Installed storage drive type | HDD |
| Total installed storage capacity | 104 TB |
| Supported storage drive types | HDD |
| Number of storage drives supported | 4 |
| RAID levels | 0, 1, 5, 10, JBOD |
| Data transfer rate | 40 Gbit/s |
| HDD speed | 7200 RPM |
| Ports & interfaces | |
| USB connectivity | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Thunderbolt technology | Yes |
| Thunderbolt ports quantity | 1 |
| Thunderbolt version | 3 |
| Design | |
| Device class | Large Enterprise Business |
| Chassis type | Desktop |
| Internal | No |
| Product colour | Black |
| Cable lock slot | Yes |
| Cooling | Yes |
| Number of fans | 1 fan(s) |
| Certification | FCC-ICES, CE, RCM, BIS, VCCI, KC, EAC, SABER, LoA, BSMI, UAE, UKCA |
| System requirements | |
| Mac compatibility | Yes |
| Mac operating systems supported | Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma |
| Windows operating systems supported | Windows 10, Windows 11 |
| Weight & dimensions | |
| Width | 174 mm |
| Depth | 247.7 mm |
| Height | 266.7 mm |
| Weight | 7.76 kg |
| Packaging content | |
| Cables included | AC, Thunderbolt |
| Power cables quantity | 1 |
| Other features | |
| Warranty period | 5 year(s) |
| Warranty | |
| Base Warranty | Non Non |
