PowerGO Rack PDU Basic 1U16A220V SCHUKO 3MSCHUKO 8 Black
ITCurry #: N6415801 | Article #: EP0G81A1-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

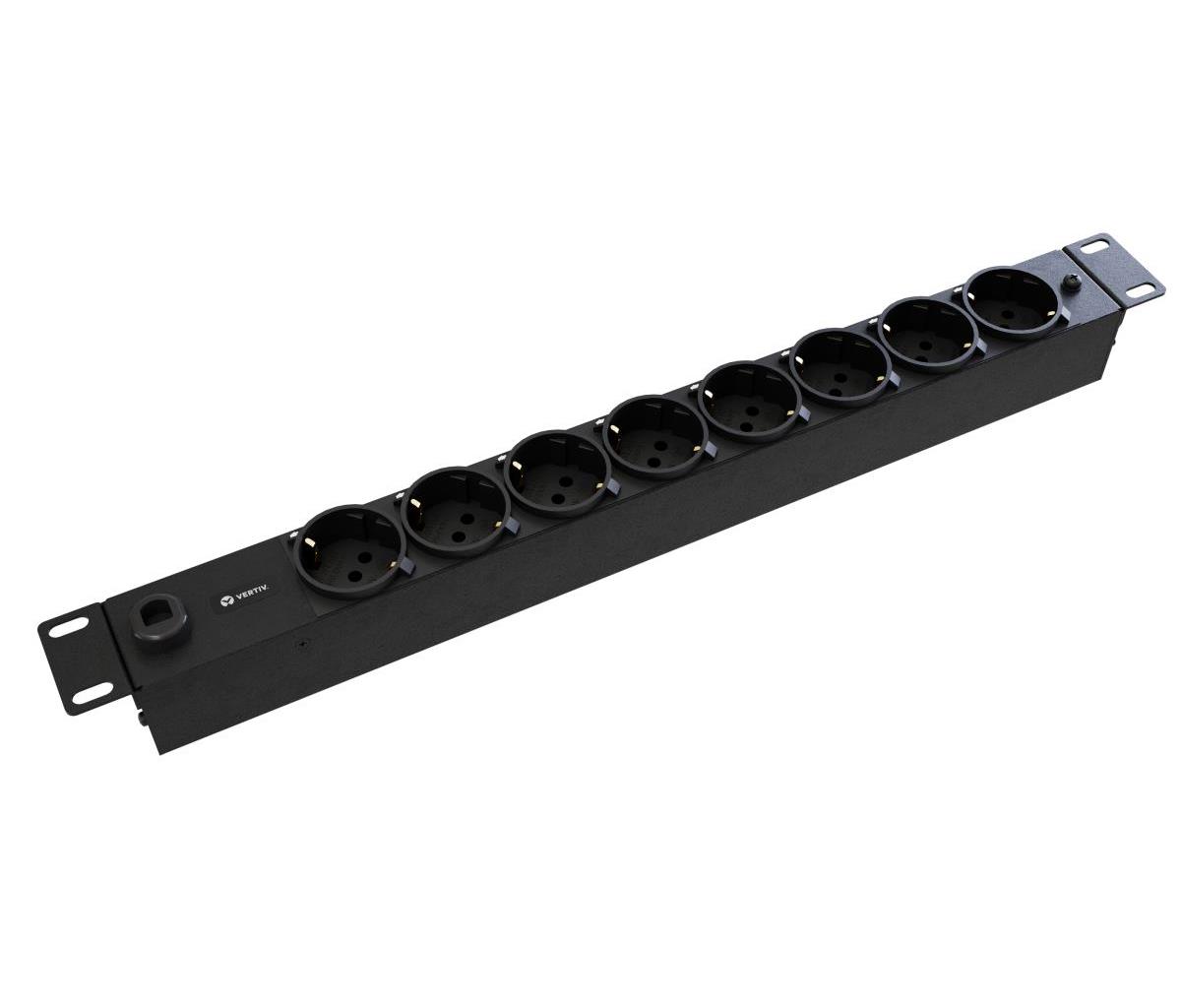

The Vertiv PowerGo EP0G81A1 is a basic, standard, rack power distribution unit (rPDU) that delivers reliable power to critical IT equipment within a rack or cabinet. This single-phase unit has a 230V input voltage and 16A current capacity that supports up to 3.6kVA of load capacity with German Schuko input. It also features 8 German Schuko receptacles, with a maximum output of 16A, making it versatile for diverse device connections. It has a 1U, horizontal rackmount configuration, and compact design, allowing seamless integration into standard racks. It’s equipped with a 3-meter power cable and supports a maximum operating temperature of 45°C, ensuring adaptability to demanding environments. The unit is CE-Marked, FCC-Marked, complies with IEC 62368-1, and is RoHS compliant. Every unit is 100% tested for reliability and functionality and has a 1-year warranty, offering both efficiency and peace of mind for your power distribution needs.
| Design | |
| PDU types | Basic |
| Type | Single-phase |
| Rack capacity | 1U |
| Mounting | Horizontal |
| Product colour | Black |
| Ports & interfaces | |
| AC outlets quantity | 8 AC outlet(s) |
| Power plug | Type F |
| AC outlet types | Type F |
| Features | |
| Cable length | 3 m |
| Power | |
| Nominal input voltage | 230 V |
| AC input frequency | 50/60 Hz |
| Maximum current | 16 A |
| Maximum power | 3600 W |
| Certificates | |
| Certification | CE Marked, FCC Marked, Complies with IEC 62368-1, Complies with EN 55032 and EN 55038, ROHS (EMC only),S-Mark |
| Weight & dimensions | |
| Width | 44 mm |
| Depth | 435 mm |
| Height | 44.4 mm |
| Weight | 1.55 kg |
| Logistics data | |
| Country of origin | China |
| Warranty | |
| Base Warranty | Non Non |
