Geist Rack PDU Monitored 0U input IEC60309 230/400V 3x16A outputs (36)C13 (6)C19
ITCurry #: N6415096 | Article #: VP8881-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

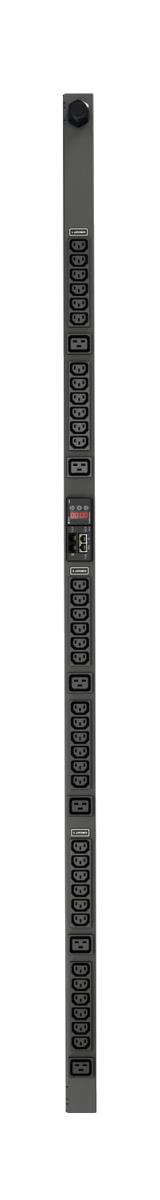

The Vertiv Geist Monitored Rack PDU VP8881 is a 16A, 230V, 0U vertical rack power distribution unit (PDU) with input power monitoring. The VP8881 has (36) IEC C13 and (6) IEC C19 outlets, and a 3P+N+E (IP44) plug providing 11.0kW in power capacity. This Monitored Data Center rPDU provides you quick access to critical power usage information so you can evaluate energy usage trends and maximize uptime. The hot-swappable Interchangeable Monitoring Device displays current on the local LED display. Visible Light Communication technology allows you to view complete power usage data locally from a mobile device with the Vertiv rPDU Scanner app. Each rack mount PDU undergoes individual testing for functionality to ensure your network is powered by a reliable smart power strip. The unit comes with a three-year warranty that can be extended to five-years if registered within 120 days of purchase.
| Design | |
| PDU types | Monitored |
| Type | Three-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| Ports & interfaces | |
| AC outlets quantity | 42 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | C13 coupler, C19 coupler |
| Output connections | 36 x C13 & 6 x C19 |
| Features | |
| LED indicators | No |
| Cable length | 3 m |
| Certification | CE, RoHS, CB certificate |
| Management features | |
| Monitoring | Current, Power, Voltage |
| Management platform | Web UI, HTTP, HTTPS (TLS 1.2), SMTP, SMTPS (TLS 1.2), ICMP, DHCP, IPv4, IPv6, Syslog, SNMP v1/v2c/v3, JSON, JSON, API, RSTP |
| Power | |
| Nominal input voltage | 230/400 V |
| AC input frequency | 50 Hz |
| Maximum current | 16 A |
| Load capacity | 11000 VA |
| Weight & dimensions | |
| Width | 1683 mm |
| Depth | 51 mm |
| Dimensions (WxDxH) | 1683 x 51 x 51 mm |
| Height | 51 mm |
| Weight | 7.26 kg |
| Packaging data | |
| Package width | 1829 mm |
| Package depth | 223 mm |
| Package height | 159 mm |
| Warranty | |
| Base Warranty | Non Non |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 øC |
| Technical details | |
| Compliance certificates | RoHS |
