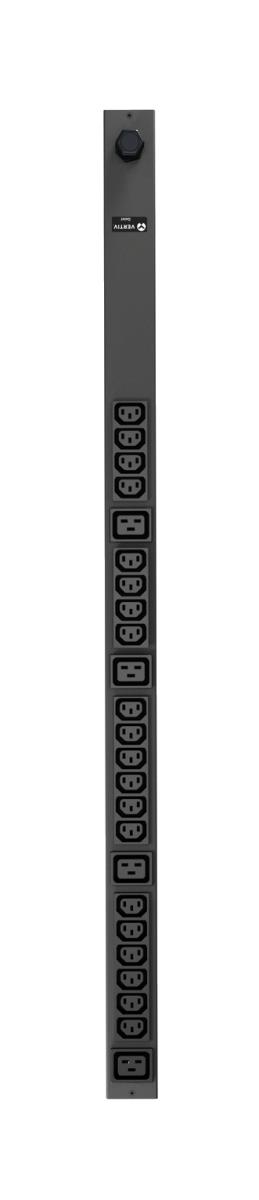

Geist Rack PDU Basic 0U input IEC60309 230V 16A outputs (20)C13 (4)C19
ITCurry #: N6415098 | Article #: VP7551
slide 3 of 2
Price:
377.38
Ex VAT
Shipping:
FREE Shipping.
Delivery in 3 days
Quantity:
Related products
slide 7 to 11 of 14
Product Information
Vertiv Geist Basic rPDU delivers reliable power distribution at a competitive price point. The Basic PDU is the entry-level solution in the Vertiv Geist Rack PDU family, providing basic, reliable power distribution in all IT environments. Cables with locking mechanisms can be connected to the outputs.
| Design | |
| PDU types | Basic |
| Type | Single-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| Ports & interfaces | |
| AC outlets quantity | 24 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | C13 coupler, C19 coupler |
| Output connections | 20 x C13 & 4 x C19 |
| Features | |
| LED indicators | No |
| Cable length | 3 m |
| Power | |
| Nominal input voltage | 230 V |
| AC input frequency | 50 Hz |
| Maximum current | 16 A |
| Load capacity | 3600 VA |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, RoHS, CB |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 øC |
| Weight & dimensions | |
| Width | 978 mm |
| Depth | 51 mm |
| Dimensions (WxDxH) | 978 x 51 x 51 mm |
| Height | 51 mm |
| Weight | 3.5 kg |
| Packaging data | |
| Package dimensions (WxDxH) | 1270 x 127 x 77 mm |
| Package width | 1270 mm |
| Package depth | 127 mm |
| Package height | 77 mm |
| Warranty | |
| Base Warranty | Non Non |
