Bypass Switch Ac 230v
ITCurry #: N6412044 | Article #: MP2-210K
slide 2 of 5
Price:
290.83
Ex VAT
Shipping:
FREE Shipping.
Out of Stock. Contact Us!
Related products
slide 7 to 11 of 14
Product Information

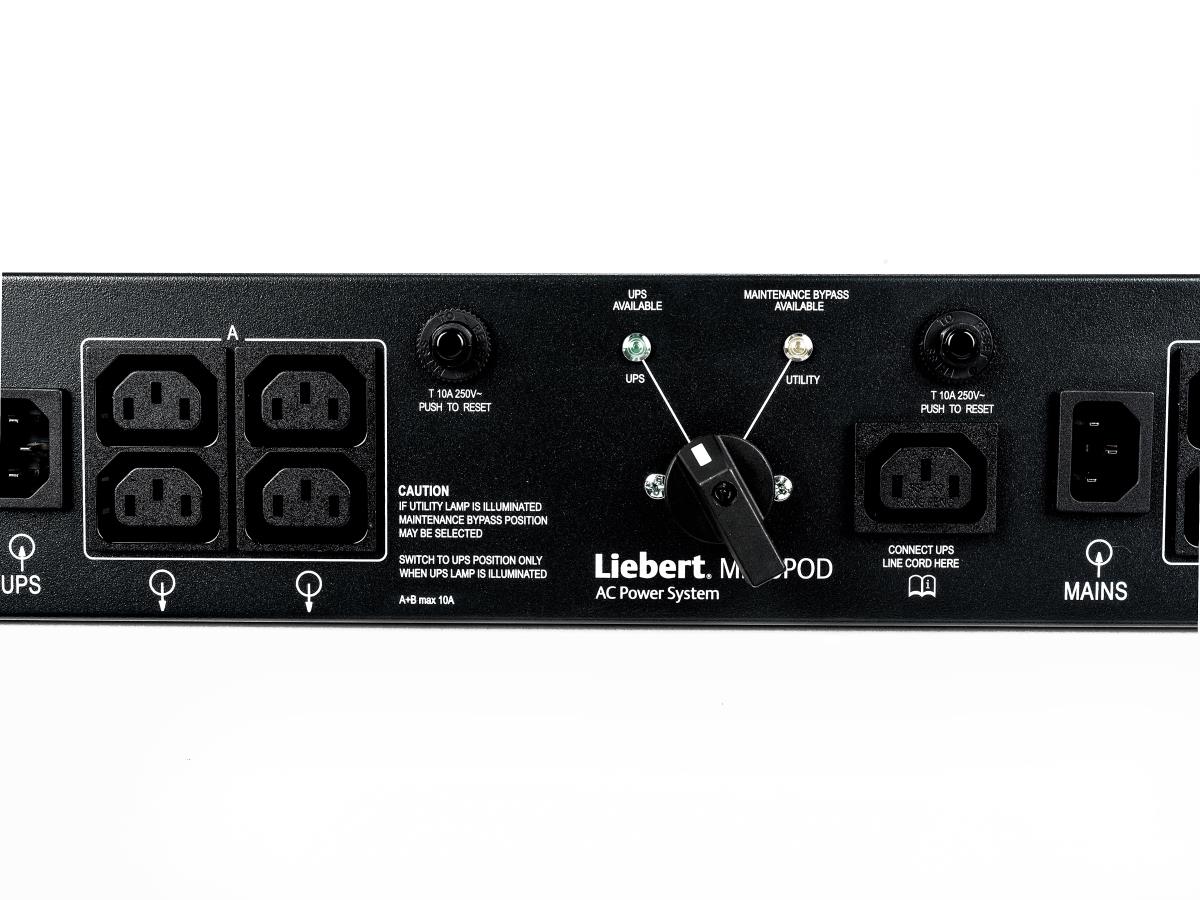

The Liebert MicroPOD maintenance bypass and power output distribution switch allows you to manually transfer the connected equipment to utility power via a maintenance bypass switch,
permitting scheduled maintenance or UPS replacement without discontinuing power to the critical load. Transferring back to UPS power is just as easy — simply turn the switch to the indicated
position and the load is protected by the UPS. Available in plug-andplay or hardwired options at 120V or 208V rating, units include brackets for rack mounting in any direction.
| Design | |
| PDU types | Switched |
| Rack capacity | 2U |
| Mounting | Horizontal |
| Product colour | Black |
| Ports & interfaces | |
| AC outlets quantity | 4 AC outlet(s) |
| Power plug | C13 coupler |
| AC outlet types | C14 coupler |
| Power | |
| Nominal input voltage | 230 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 10 A |
| Nominal output voltage | 230 V |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -20 - 60 øC |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Packaging data | |
| Package dimensions (WxDxH) | 432 x 89 x 89 mm |
| Package width | 432 mm |
| Package depth | 89 mm |
| Package height | 89 mm |
