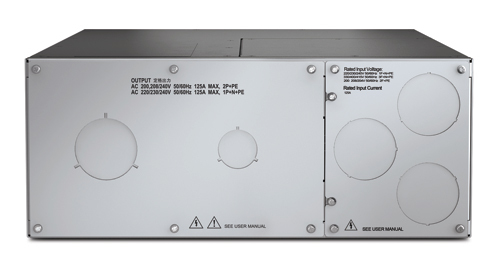

Service Bypass Panel 200/208/230/240v 125a Hw Input/ Output
ITCurry #: 0280A748 | Article #: SBP20KP
slide 3 of 2
Price:
1688.92
Ex VAT
Shipping:
FREE Shipping.
Out of Stock. Contact Us!

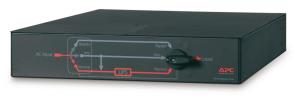

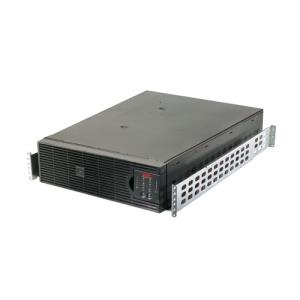

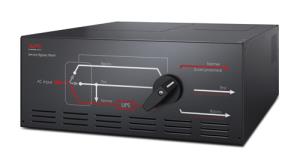

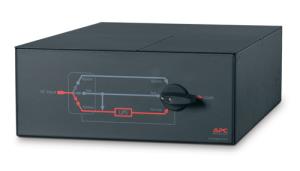

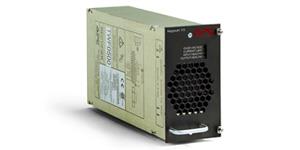

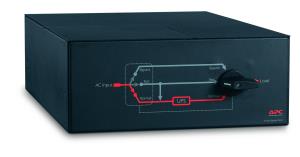

Related products
slide 7 to 11 of 14
Product Information
Wrap Around System Bypass
(3) Breaker maintenance bypass panel to isolate the UPS from the critical loa.
- APC Smart-UPS Accessories , Input: 200V, 208V, 220V, 230V, 240V, 380V 3PH, 400V 3PH
- Input Connections: Hard Wire 3-wire (2PH + G), Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G)
- Output: 200V, 208V, 220V, 230V, 240V
- Output Connections: Hard Wire 3-wire (2PH + G), Hard Wire 3-wire (H N + G)
| Features | |
| Output power capacity | 20 kVA |
| Input operation voltage (min) | 200 V |
| Input operation voltage (max) | 240 V |
| Input frequency | 50/60 Hz |
| Maximum current | 125 A |
| Ports & interfaces | |
| AC outlet types | Hard Wire 5-wire (3P + N + E) |
| Design | |
| Form factor | Tower |
| Product colour | Black |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 50 øC |
| Storage temperature (T-T) | -40 - 65 øC |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 4500 m |
| Non-operating altitude | 0 - 15000 m |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CSA, EN 60950, GOST, IEC 60950, IEC 60950, UL 1778 |
| Weight & dimensions | |
| Width | 432 mm |
| Depth | 554 mm |
| Height | 178 mm |
| Weight | 19.3 kg |
| Packaging data | |
| Package weight | 31.4 kg |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Other features | |
| Operating temperature (T-T) | -4 - 122 øF |
| Overload protection | Yes |
| Package dimensions (WxDxH) | 610 x 845 x 305 mm |
| Warranty | |
| Base Warranty | Non Non |
