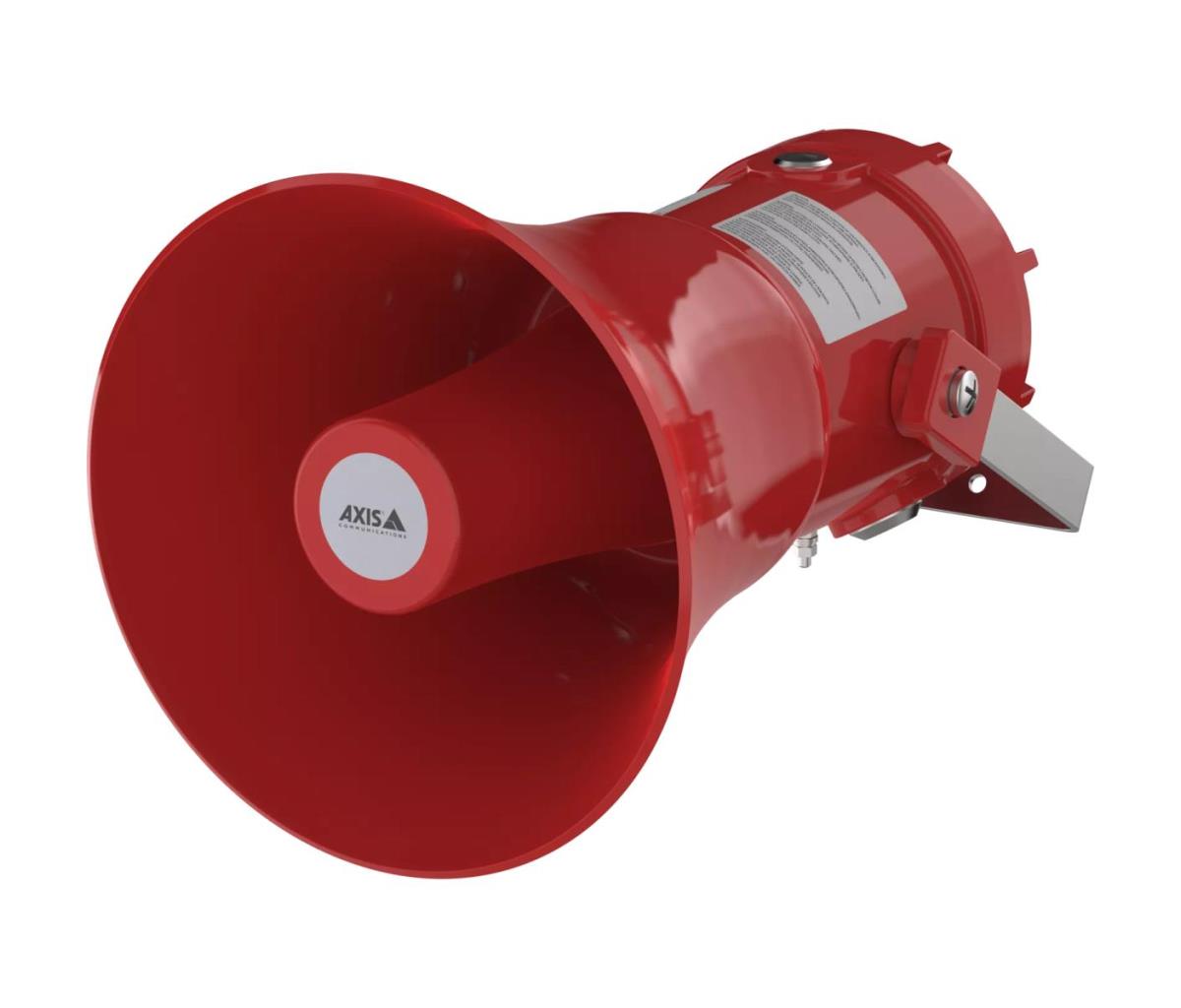

Xc1311 Explosion-protected Network Horn Speaker
ITCurry #: 13836492 | Article #: 02962-001-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Certified for Zone 1/Division 1 hazardous areas, this all-in-one network speaker system enables clear, understandable voice messages to personnel. Easy to integrate, it offers a flexible, scalable, and cost-effective solution.
Clear audio to reach your personnel – everywhere
AXIS XC1311 makes it easy for you to get scheduled, event-triggered, and live voice messages to personnel in hazardous areas, improving their situational awareness when it counts. For example, whenever a camera with analytics detects smoke or missing personal protective equipment, this smart device can be automatically or manually triggered to play a prerecorded message. Or, in response to a system alert, a remote operator can issue live instructions directly to the scene. Messages come through loud and clear – even over long distances and in noisy industrial environments – thanks to the horn and built-in digital signal processing.
A smart solution
This all-in-one network audio device plugs into standard IP networks, enabling a flexible, scalable, and cost-effective approach to system design. It’s a stand-alone unit, so you don’t need any additional hardware or software. It integrates seamlessly with the rest of the Axis portfolio and – thanks to the Axis open platform – other systems, solutions, and platforms. Plus, you can monitor and manage it from anywhere. Built-in remote health testing means you won’t need to go on-site to know it’s working, and AXIS Audio Manager Edge comes preinstalled so you can remotely set and prioritize content, configure zones, and revise user permissions.
Easy to install and configure in hazardous areas
AXIS XC1311 is certified worldwide for use in hazardous areas (Class I Div 1, Zone 1 IIC), so it can be installed in potentially combustible environments* and withstand temperatures between -40 °C to 60 °C (-40 °F to 140 °F). This smart network horn speaker is easy to install. Because it uses Power over Ethernet (PoE), it connects to the closest network switch with a single cable for both power and connectivity – no additional cabling or hardware required. Additionally, the included bracket supports both wall and ceiling mounting. It’s also a snap to set up, thanks to the preinstalled audio management software and preconfigured sound quality.
* Certified for gas environments Class I Div 1 (Group ABCD), Class I Zone 1 IIC, Zone 1 IIC, and dust environments Zone 21 IIIC (worldwide)
| Loudspeakers | |
| Speaker type | 1-way |
| Speaker placement | Ceiling-mountable, Wall-mountable |
| Audio | |
| Frequency range | 400 - 5500 Hz |
| Sound pressure level (max) | 110 dB |
| Audio formats supported | AAC-LC, ADPCM, G.711, G.711 æ-law, G.726, MP3, PCM, WAV |
| Performance | |
| Number of speakers | 1 |
| Product colour | Red |
| Housing material | Aluminium |
| LED indicators | Yes |
| International Protection (IP) code | IP66, IP67 |
| Suitable for outdoor use | Yes |
| Amplifier | |
| Amplifier | Built-in |
| Amplifier class | D |
| Amplifier output power | 7 W |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Bluetooth | No |
| Power | |
| Power source type | PoE |
| Power consumption (typical) | 7 W |
| Weight & dimensions | |
| Width | 220 mm |
| Depth | 335 mm |
| Height | 255 mm |
| Weight | 4.22 kg |
| Packaging data | |
| Manual languages | Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Quick start guide | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 60 øC |
| Storage temperature (T-T) | -40 - 65 øC |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Sustainability | |
| Doesn't contain | PVC |
| Technical details | |
| Warranty period | 5 year(s) |
| Compliance certificates | ATEX, Electromagnetic Compatibility (EMC), Federal Communications Commission (FCC), IECEx, REACH, RoHS, Trade Agreements Act (TAA), cULus |
| Other features | |
| Ethernet LAN (RJ-45) ports | 1 |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Protection features | Impact resistant |
| Power consumption | 12.95 W |
| Warranty | |
| Base Warranty | Non Non |
