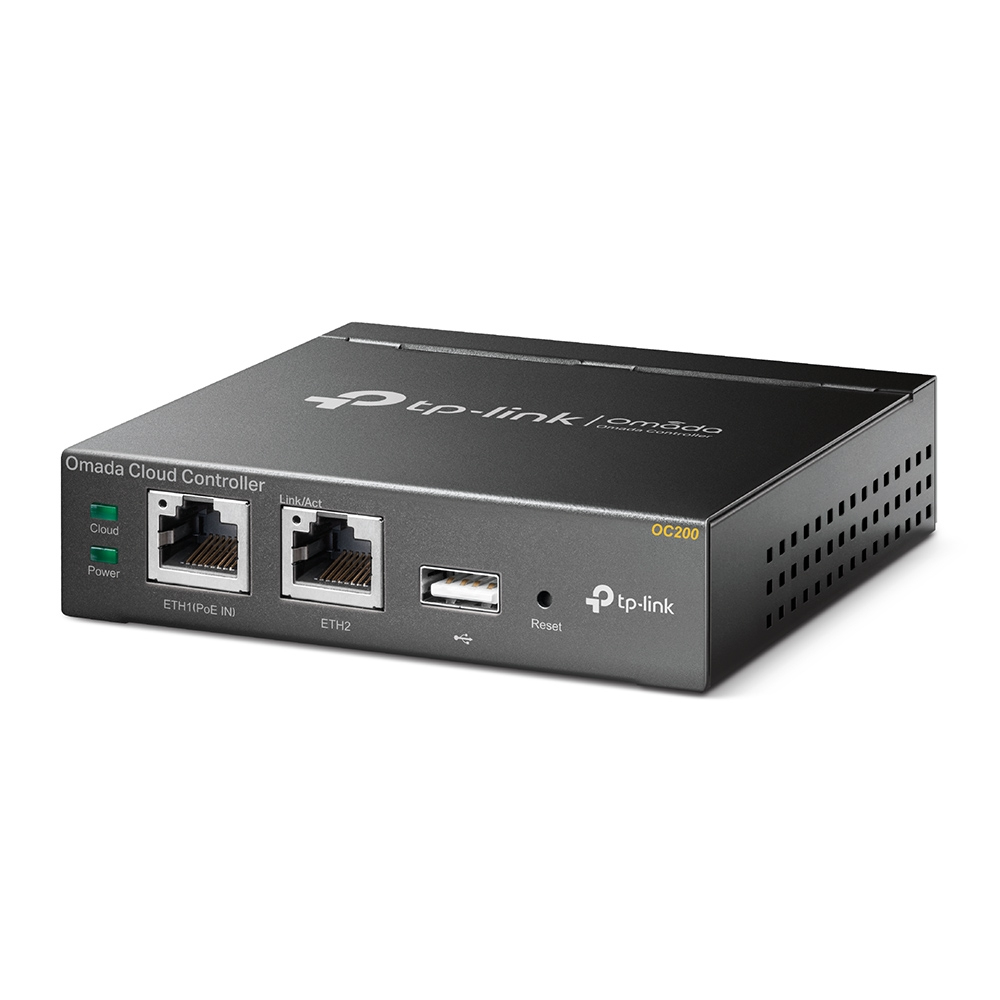

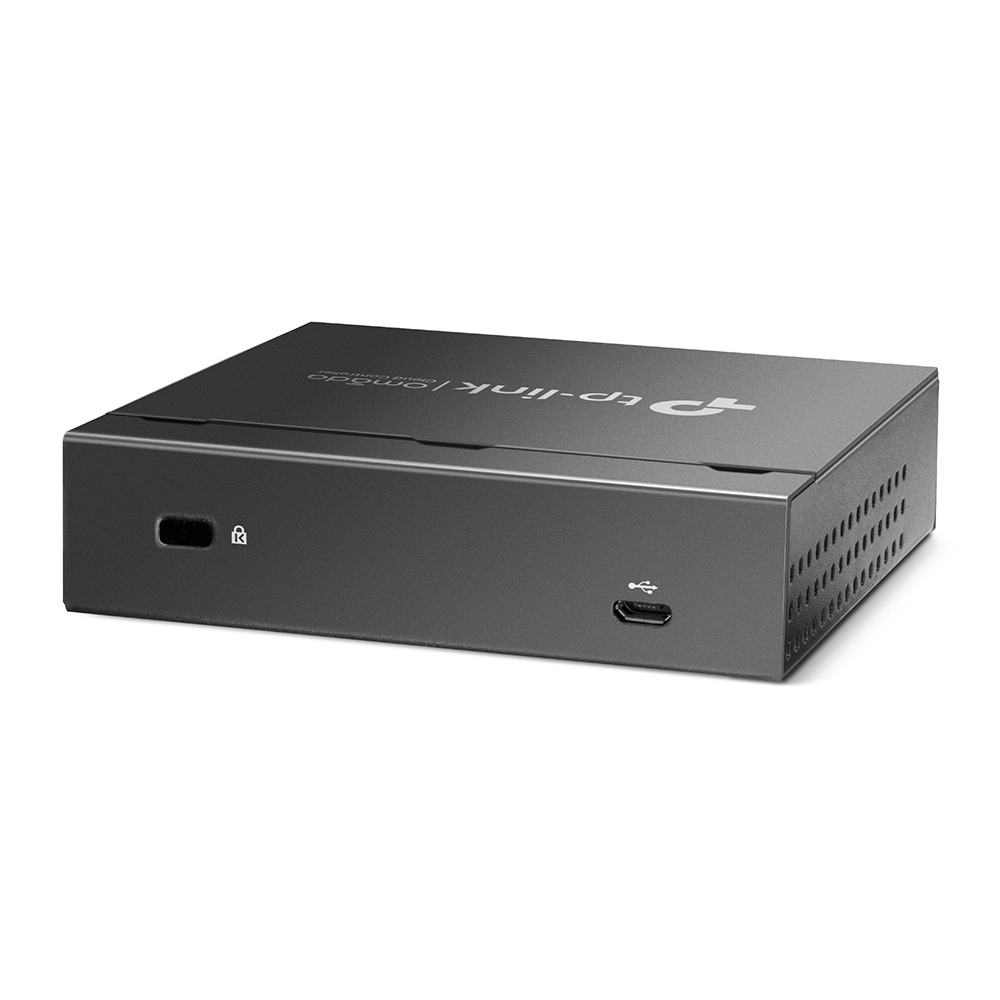

Wireless Omada Oc200 Cloud Controller Black
ITCurry #: P6042930 | Article #: OC200
Related products
Product Information
Dedicated In Network Centralized Management
The OC200 Omada Cloud Controller delicate to provide centralized management for the whole Omada network. Monitor statistics in real-time, view a graphical analysis of network traffic, create a captive portal, upgrade and reboot your system, and easily scale your network to boost your business.
Free Cloud Management – Anywhere, Anytime
Omada offers free cloud access to its centralized management platform. Take your network with you, wherever you go.
Industry Leading Hardware Design
Equipped with an advanced hardware design and the latest chipset, OC200 has the impressive processing power to support the massive management of your business network.
Guest Network with Facebook Wi-Fi and SMS Login
Visitors have access to secure Wi-Fi with captive portal and wireless isolation technology. Newly added SMS authentication simplifies the connection process, while Facebook authentication raises the social media profile of your business.
Even More Convenient with Omada App
Remotely access and configure the OC200 from the convenience of your smartphone, wherever you are in the world.
| Design | |
| Product colour | Black |
| LED indicators | Yes |
| Certification | CE, FCC, RoHS |
| Performance | |
| Control display unit | No |
| Built-in processor | Yes |
| Processor frequency | 1000 MHz |
| Number of processors installed | 1 |
| Internal memory | 1024 MB |
| Internal memory type | DDR3 |
| Flash memory | 4000 MB |
| Network | |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Security | |
| MAC address filtering | Yes |
| Security algorithms | SSID, WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| VLAN support | Yes |
| Ports & interfaces | |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Management features | |
| Management platform | L3 |
| Web-based management | Yes |
| Reset button | Yes |
| Syslog | Yes |
| Power | |
| Power consumption (typical) | 5 W |
| Input voltage | 5 V |
| Input current | 1 A |
| Power over Ethernet (PoE) | Yes |
| DC input voltage | 5 V |
| Software | |
| Compatible operating systems | Windows10, 8, 7,Vista, XP; MAC OS; NetWare, UNIX; Linux |
| Weight & dimensions | |
| Width | 99.8 mm |
| Depth | 98 mm |
| Height | 25 mm |
| Packaging data | |
| Package width | 135 mm |
| Package depth | 128 mm |
| Package height | 70 mm |
| Packaging content | |
| Cables included | LAN (RJ-45) |
| Quick installation guide | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -40 - 70 øC |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Warranty | |
| Base Warranty | Non Non |
