Access Point Omada Eap650 Ax3000 Wi-Fi6 Dual Band Ceiling Mount
ITCurry #: P6043347 | Article #: EAP650
Related products
Product Information
The New Slimline Business WiFi 6
AX3000 Ceiling Mount WiFi 6 Access Point
AX3000 WiFi 6 Speed
2402 Mbps on 5 GHz +
574 Mbps on 2.4 GHz†
High-Efficiency WiFi 6
More connected devices can enjoy faster speeds
Centralized Cloud Management
Manage the whole network locally or from the cloud
160 MHz Channel
Double the data at peak transmission times on a single stream with HE160‡
Auto Channel Selection and Power Adjustment*
Optimize overall performance by reducing WiFi interference
Omada Mesh Technology
More flexible and convenient wireless deployment
Seamless Roaming
Uninterrupted streaming when moving between APs

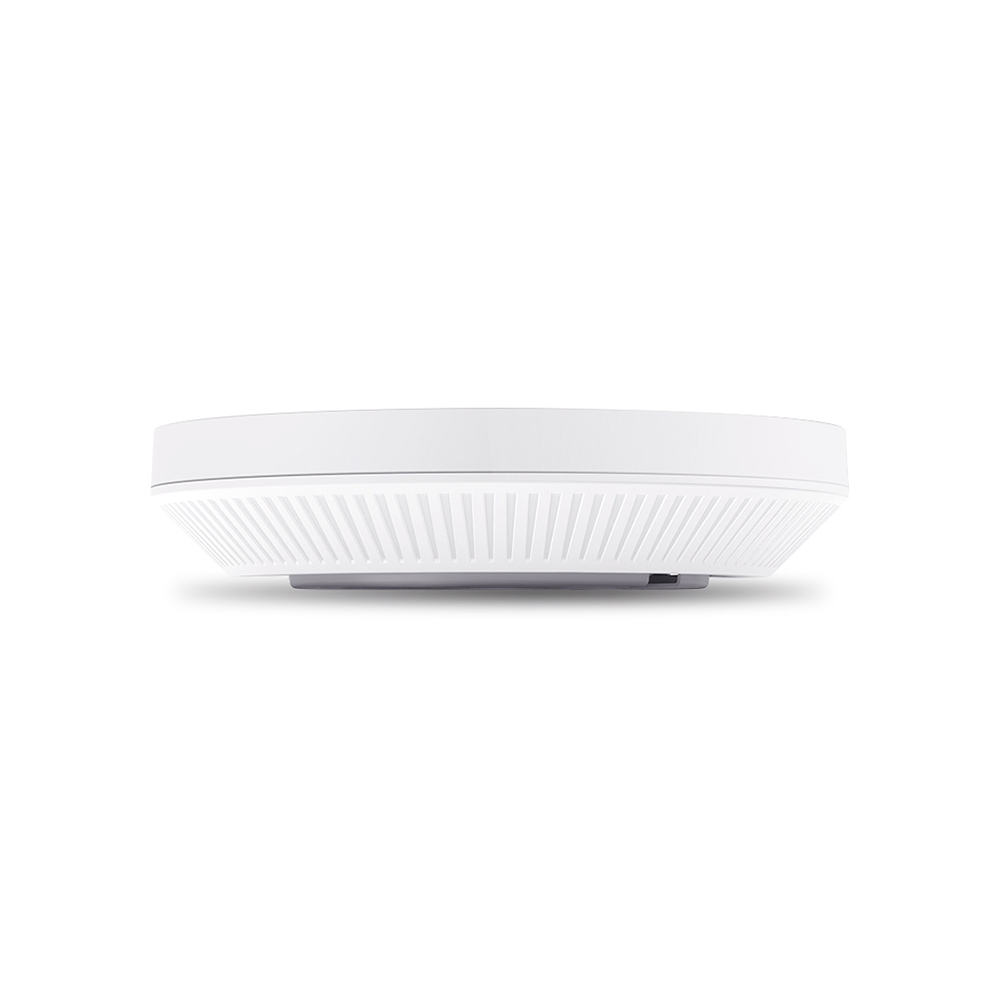

Ultra-Slim Design
F160 mm × 33.6 mm elegant design brings more agility
PoE+ Powered
Supports both DC (adapter included) and 802.3at PoE+ for flexible installations

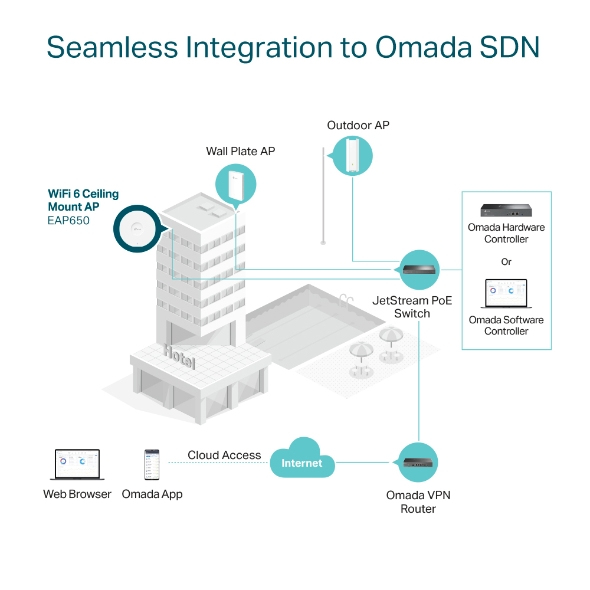

Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers. It provides 100% centralized cloud management and creates a highly scalable network controlled from a single interface.
Auto Channel Selection and Power Adjustment
to Optimize Overall Performance
Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network.
Easy Deployment & Higher Performance by Omada Mesh
Easy Pairing, Less Wiring
With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.
Optimized Network Performance
Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.

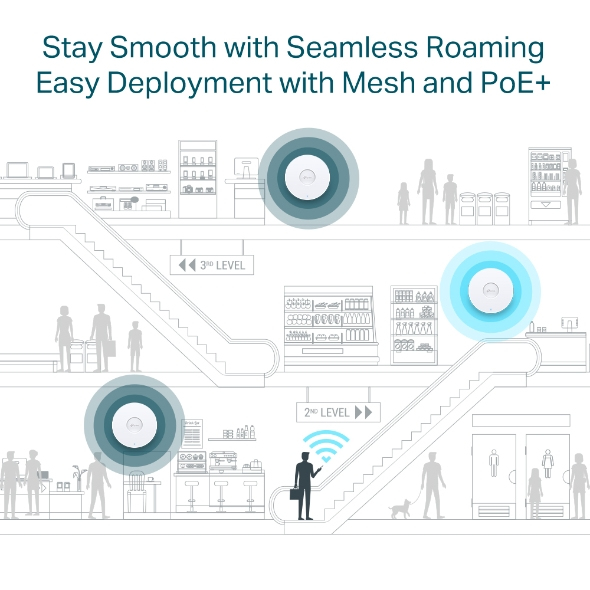

Always Stay Smooth with Fast Roaming
Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.

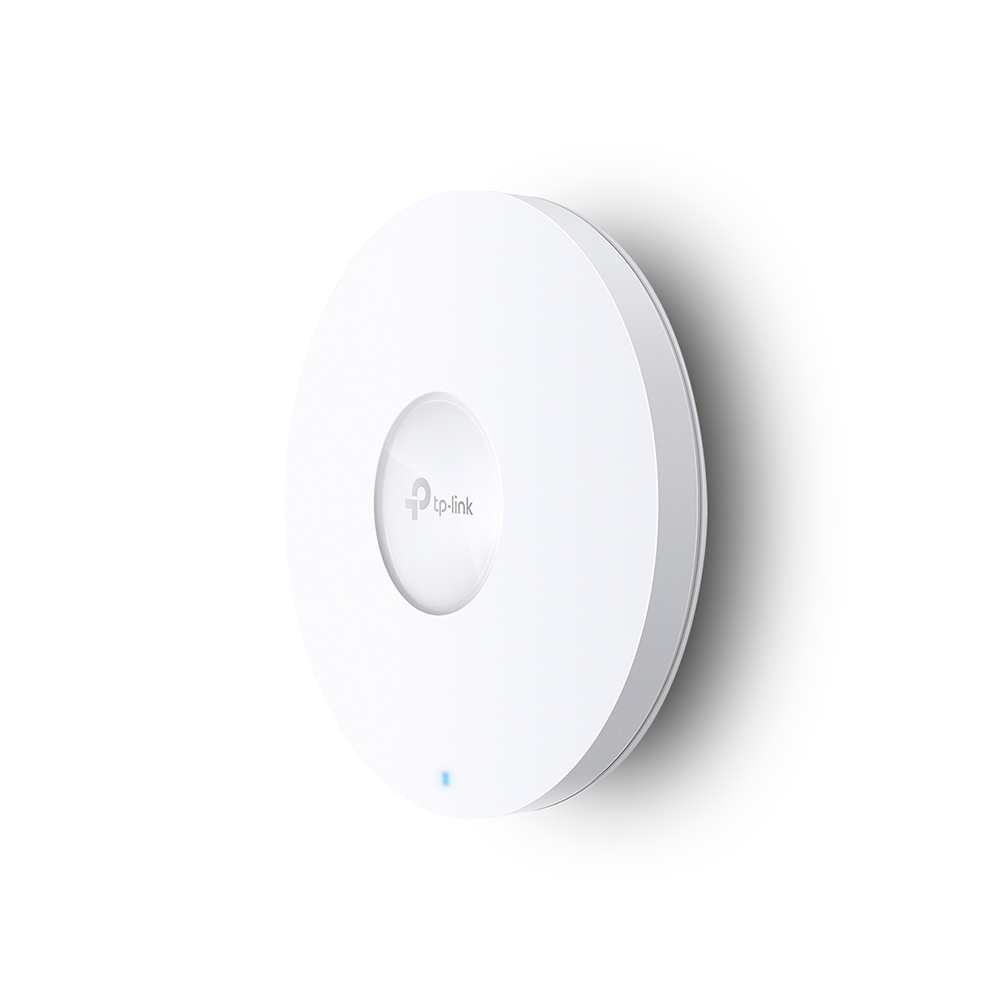

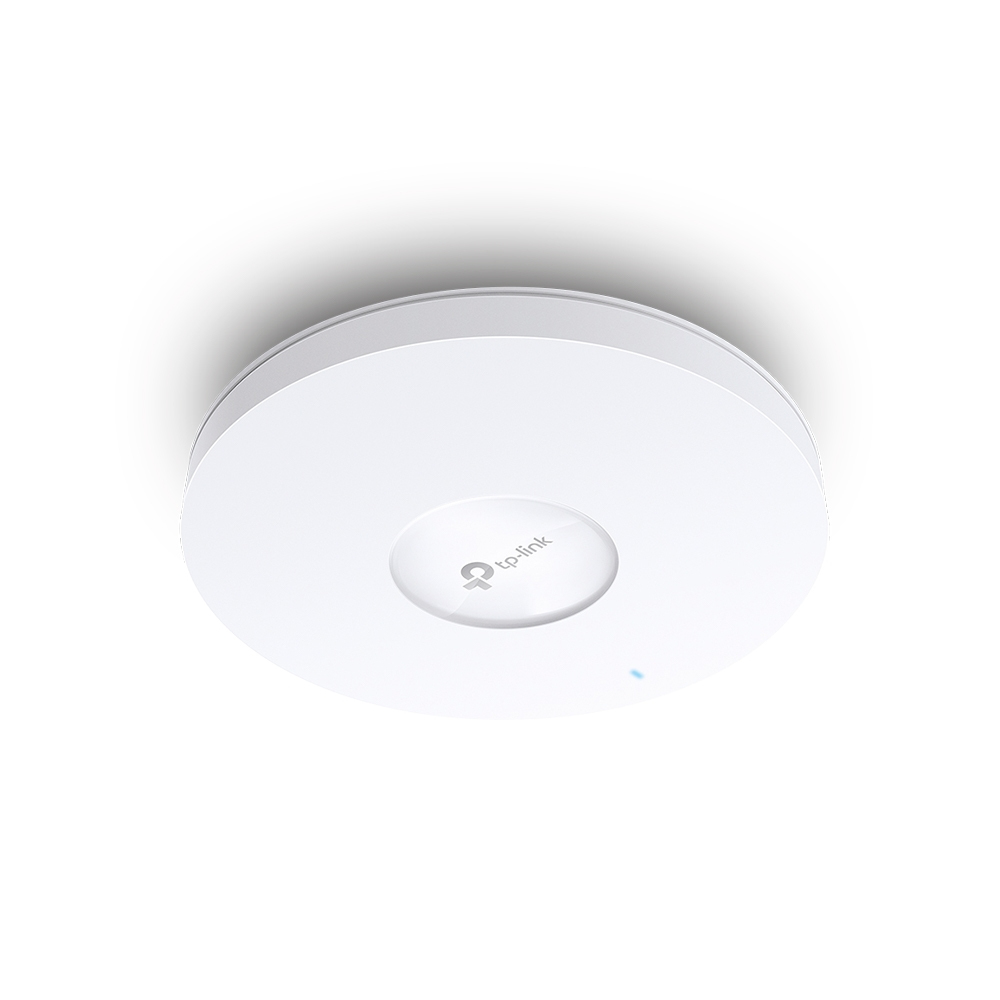

Ultra-Slim Design Brings More Agility

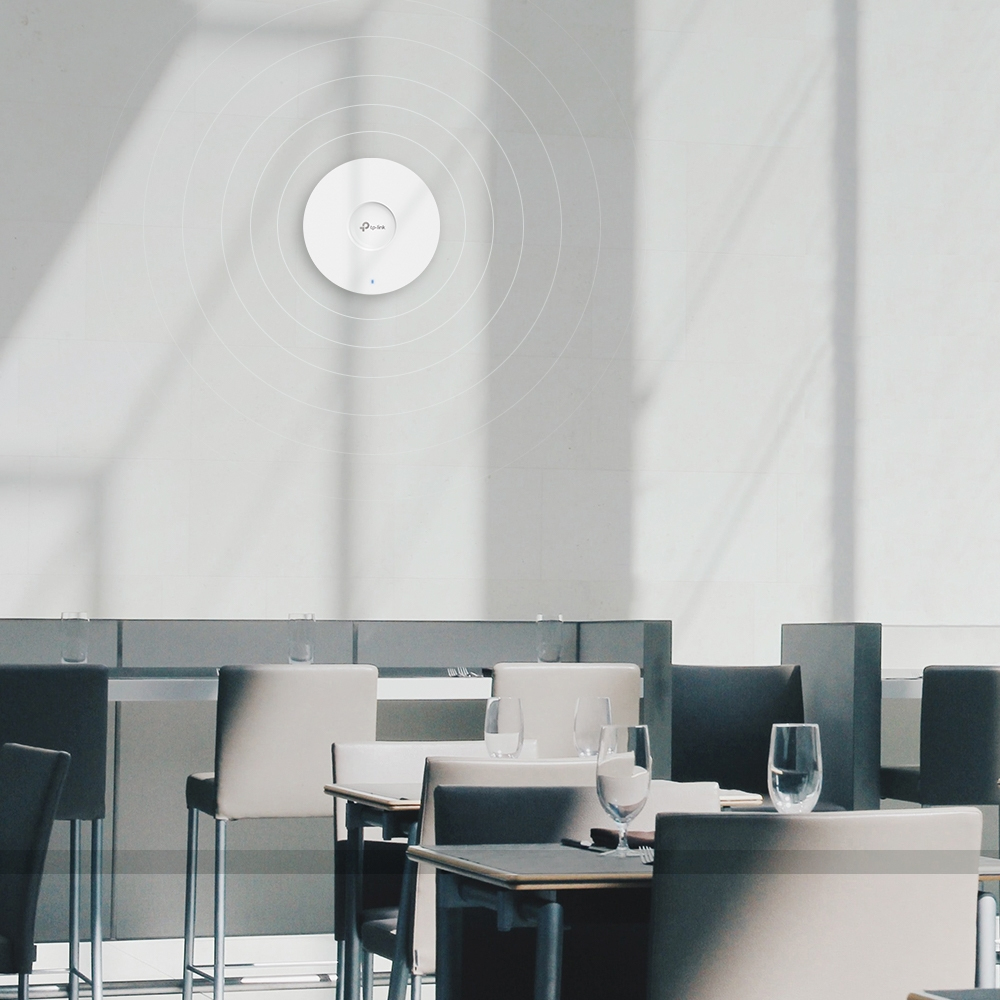

Exceptional performance with compact design ensures simple WiFi installation while saving space. The elegant appearance makes EAP650 perfectly blend into any modern office, hotel, classroom, or café.
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 2976 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2402 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Frequency band | 2.4 - 5 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3at |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Spread spectrum method | OFDMA |
| Modulation | 1024-QAM, OFDM |
| Wi-Fi Multimediaÿ(WMM)/(WME) | Yes |
| VLAN support | Yes |
| Rate limiting | Yes |
| Wireless isolation | Yes |
| Quality of Service (QoS) support | Yes |
| Transmitting power (CE) | <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, Band1 & Band2, EIRP) <30 dBm(5 GHz, Band3, EIRP) |
| Transmitting power (FCC) | <25 dBm (2.4 GHz) <25 dBm (5 GHz) |
| Security | |
| Security algorithms | SNMP, SNMPv2, SNMPv3, SSH, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3-Enterprise, WPA3-PSK |
| MAC address filtering | Yes |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Number of SSID supported | 16 |
| Access Control List (ACL) | Yes |
| Management features | |
| Web-based management | Yes |
| Ports & interfaces | |

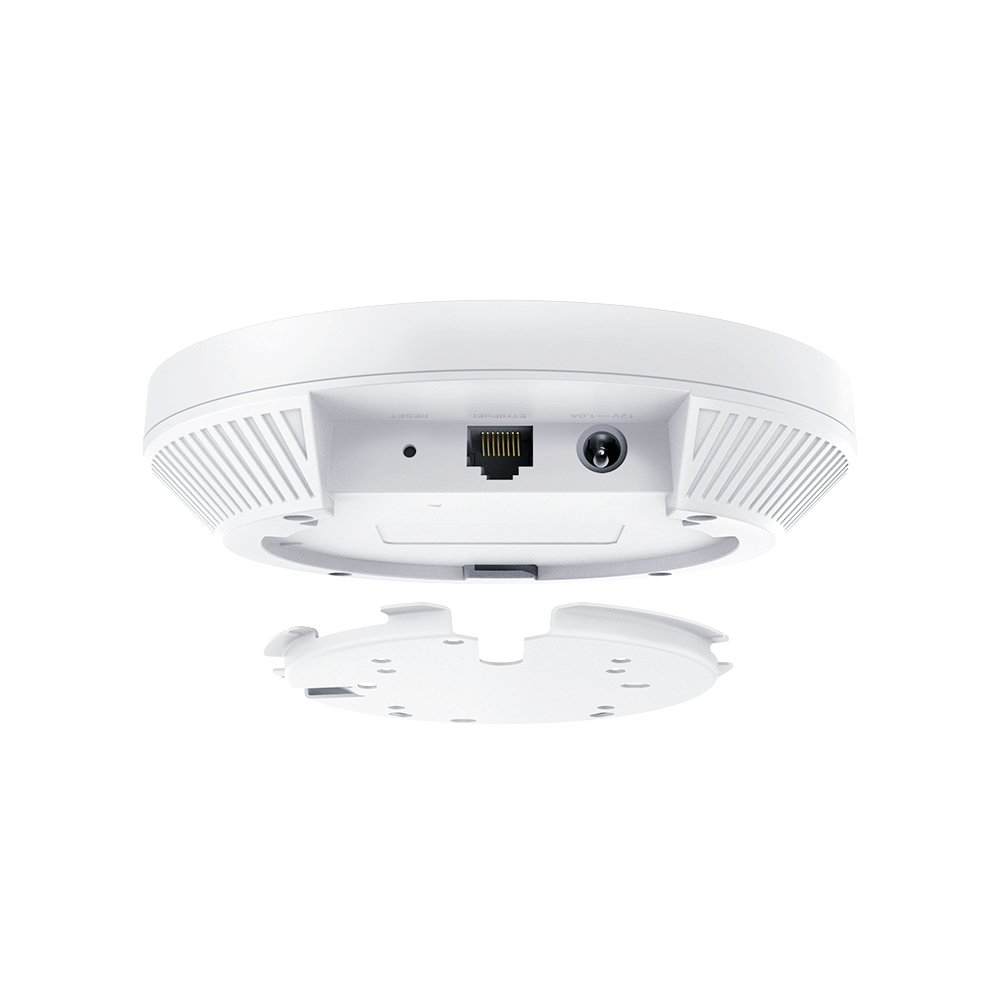

| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Output voltage | 12 V |
| Output current | 1 A |
| Design | |

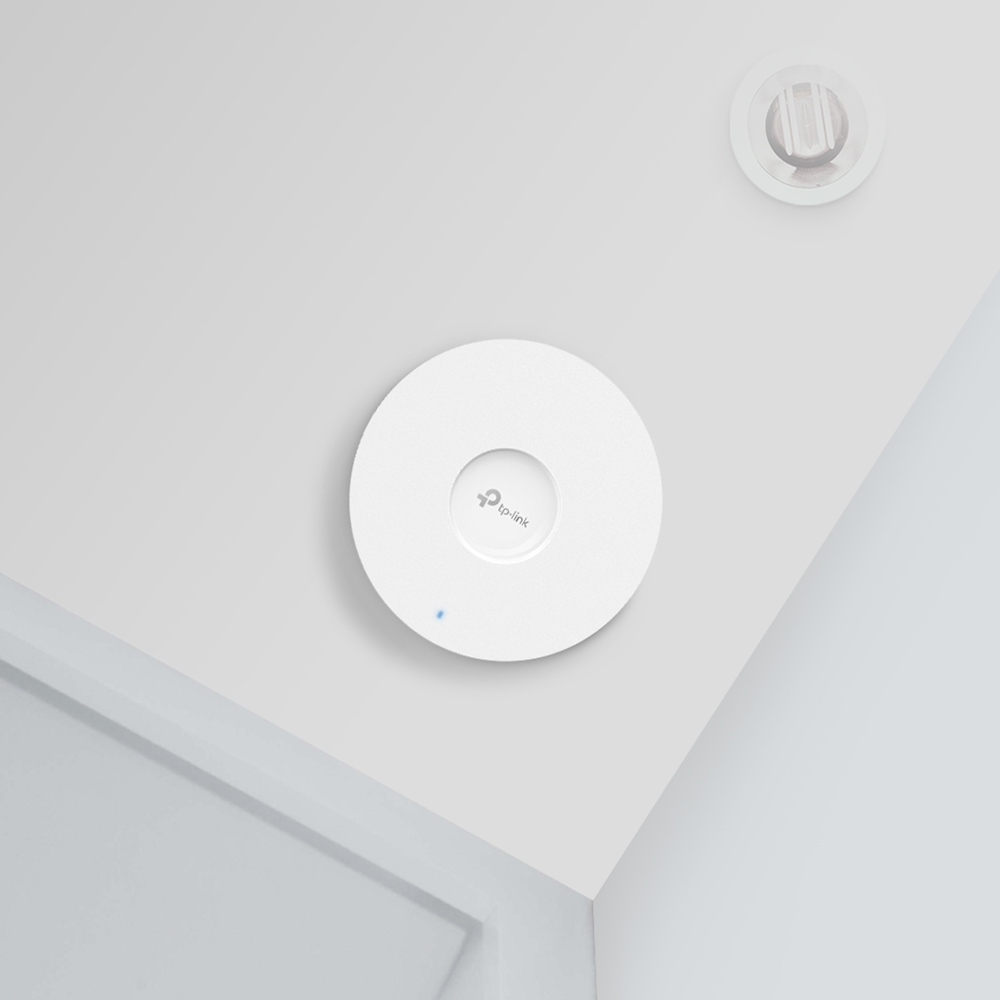

| Placement | Ceiling, Wall |
| Product colour | White |
| LED indicators | Yes |
| Certification | CE, FCC, RoHS |
| Antenna | |
| Antenna type | Internal |
| Antenna direction type | Omni-directional |
| Antenna gain level (max) | 5 dBi |
| Weight & dimensions | |
| Width | 160 mm |
| Depth | 160 mm |
| Height | 33.6 mm |
| Packaging content | |
| Number of products included | 1 pc(s) |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -40 - 70 øC |
| Storage relative humidity (H-H) | 5 - 90% |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Warranty | |
| Base Warranty | Non Non |
