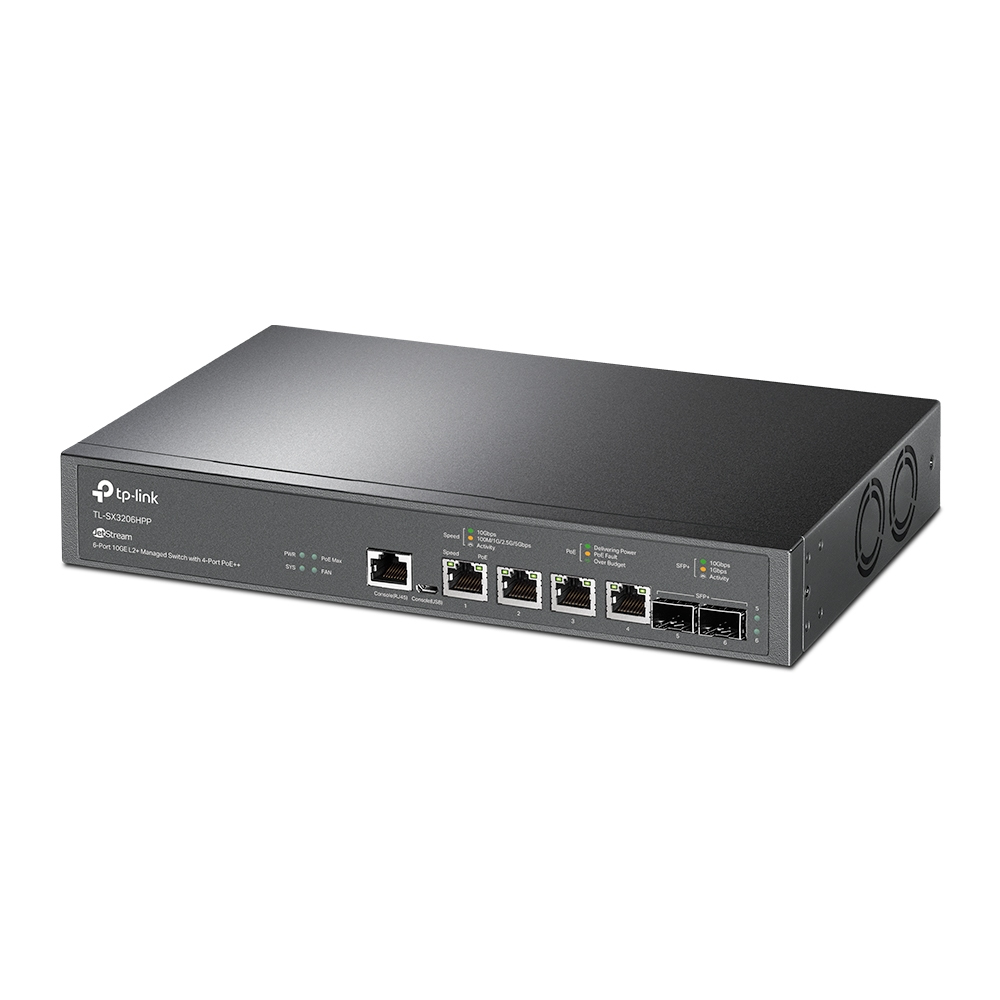

Jetstream 4-port 10g Base-t And 2-port 10ge Sfp+ L2+ Managed Switch With 4-port Poe++

ITCurry #: P6043360 | Article #: TL-SX3206HPP
Price:
416.28 Ex VAT
Shipping:
FREE Shipping.
Out of Stock. Contact Us!
Email us for assistance

Related products

slide 7 to 11 of 14

Product Information

Lightning-Fast Connection with Full 10GE Ports

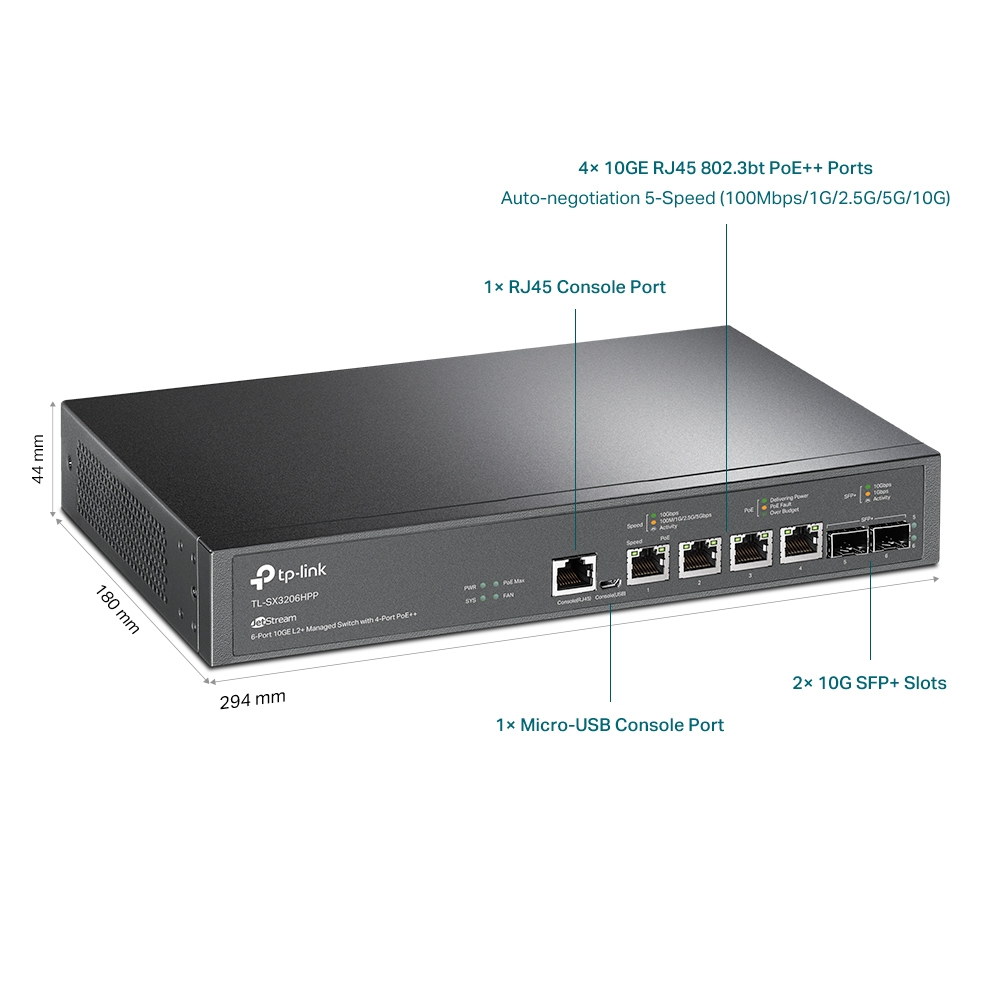

Build and expand your lightning-fast network with TP-Link TL-SX3206HPP—a fully managed switch with full 10GE RJ45 and fiber ports and 120 Gbps switching capacity. The four 10GE RJ45 ports with auto-negotiation for 5-speed (100Mbps/1G/2.5G/5G/10G) connections provide optimal performance. Two 10GE SFP+ slots provide non-blocking switching performance and ultra-low latency, so reliable and lightning-fast connections to servers and other switches can be easily constructed.

Empowering the Real WiFi 6 and WiFi 6E with 10G PoE++ Ports
Four 10GE RJ45 ports offer 802.3bt PoE++ to provide up to 200 W PoE power budget in total and 60 W for every port. It unlocks the full bandwidth potential of WiFi 6 and WiFi 6E access points and high power PoE devices.† PoE (802.3af), PoE+ (802.3at), and PoE++ (802.3bt) are supported, so you don't need to install new electrical circuits to power your devices.

Seamless Integration to Omada Cloud SDN
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

Advanced L3 Features
An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campus, and ISPs.

Management features
Switch type Managed
Switch layer L2+
Quality of Service (QoS) support Yes
Web-based management Yes
Cloud-managed Yes
ARP inspection Yes
Configuring Location Settings (CLI) Yes
System event log Yes
MIB support Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 4
Basic switching RJ-45 Ethernet ports type 10G Ethernet (100/1000/10000)
SFP+ module slots quantity 2
Console port RJ-45/Micro-USB

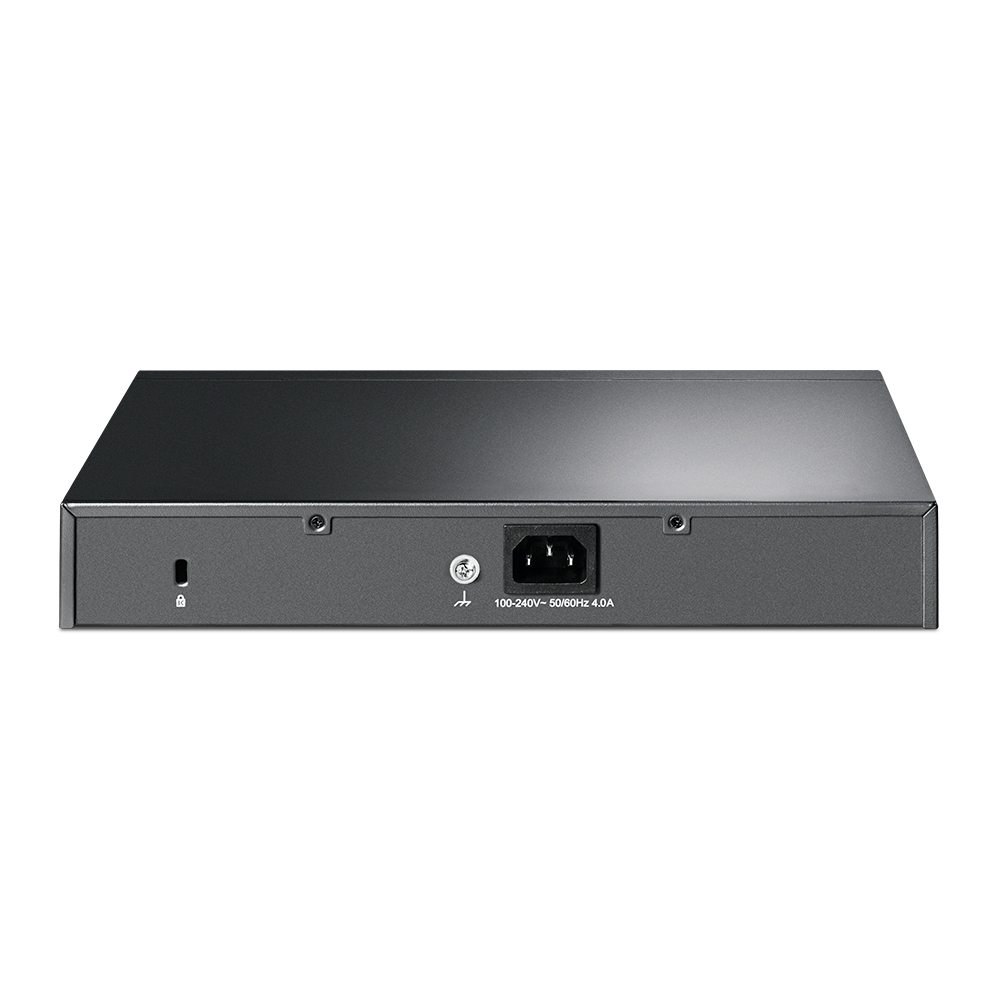

Power connector AC-in jack
Network
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x
10G support Yes
Port mirroring Yes
IP routing Yes
Routing entries 512
Flow control support Yes
Link aggregation Yes
Broadcast storm control Yes
Rate limiting Yes
Spanning tree protocol Yes
Head-of-line (HOL) blocking Yes
VLAN support Yes
Virtual LAN features Private VLAN, Tagged VLAN, VLAN mapping, Voice VLAN
Number of VLANs 4000
Data transmission
Switching capacity 120 Gbit/s
Forwarding rate 89.28 Mpps
MAC address table 32000 entries
Static route Yes
Number of static routes 48
Jumbo frames support Yes
Jumbo frames 9000
Security
DHCP features DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client
Access Control List (ACL) Yes
IGMP snooping Yes
Security algorithms HTTPS, SSL/TLS
SSH/SSL support Yes
Loop protection Yes
BPDU filtering/protection Yes
Authentication Guest VLAN
Authentication type AAA, RADIUS, TACACS+
Multicast features
Multicast support Yes
Multicast Listener Discovery (MLD) snooping MLD v1/v2
Protocols
Management protocols SNMP v1/v2c/v3
Design
Rack mounting Yes
Product colour Black
LED indicators Yes
Number of fans 2 fan(s)
Certification CE, FCC, RoHS
Performance
Minimum system requirements Microsoft© Windows© 98SE, NT, 2000, XP, VistaT / Windows 7/8/10/11, MAC© OS, NetWare©, UNIX© /Linux.
Power
Power source AC
Power supply included Yes
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Power consumption (max) 244.9 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes
Power over Ethernet plus (PoE+) ports quantity 4
Power over Ethernet (PoE) power per port 60 W
Total Power over Ethernet (PoE) budget 200 W
Operational conditions
Operating temperature (T-T) 0 - 50 øC
Storage temperature (T-T) -40 - 70 øC
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 95%
Heat dissipation 835.67 BTU/h
Weight & dimensions
Width 294 mm
Depth 180 mm
Height 44 mm
Packaging data
Cables included AC
Quick start guide Yes
Rack mount kit Yes
Package width 400 mm
Package depth 250 mm
Package height 80 mm
Package weight 2.62 kg
Logistics data
Harmonized System (HS) code 85176990
Warranty
Base Warranty Non Non
