Jetstream Tl-sx3008f 8-port 10ge Sfp+ L2+ Managed

ITCurry #: P6043288 | Article #: SX3008F
Price:
206.15 Ex VAT
Shipping:
FREE Shipping.
Out of Stock. Contact Us!
Email us for assistance

Related products

slide 7 to 11 of 14

Product Information

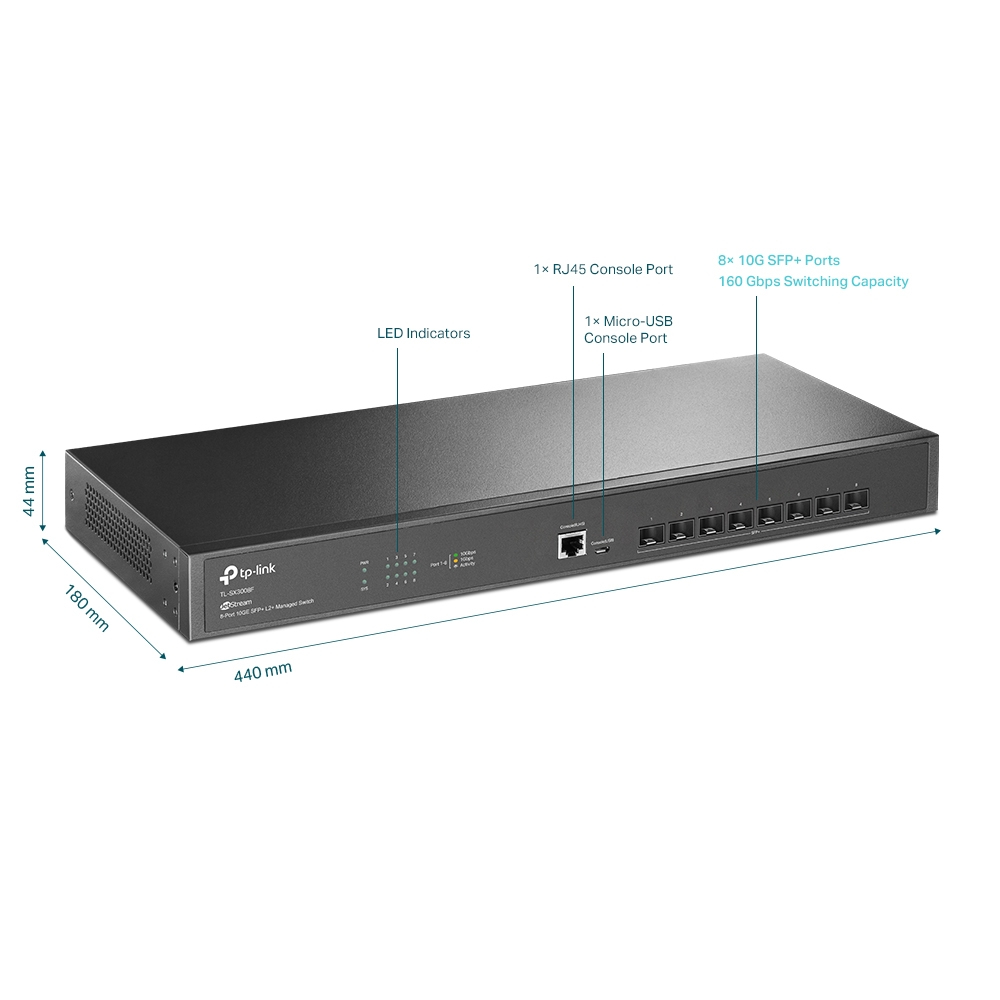

Future-Proof Your Business with Full 10G Fiber Switch
JetStream 8-Port 10GE SFP+ L2+ Managed Switch

Full Fiber Switch with Lightning-Fast 10G
Build and expand your lightning-fast network with TP-Link TL-SX3008F—a fully managed switch with full 8-port 10G fiber ports and 160 Gbps switching capacity. Ideal for small, medium, and large business networks, it meets and surpasses the needs for high-speed, reliable, and safe enterprise networks.

Seamless Integration to Omada Cloud SDN
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

Advanced L3 Features
An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs.

Secure Networking
Our high-quality security features defend against a range of network threats. They include IP-MAC-Port-VID Binding, Port Security, Storm Control, and DHCP Snooping. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. The Access Control Lists (ACL, L2 to L4) restrict access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. User access to the network can be controlled through 802.1X authentication to grant access according to the valid user credentials.

Enterprise Level Features
A complete lineup of L2+ features is supported. 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control are among the innovative features. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to appropriate subscribers and reducing unnecessary traffic, while IGMP throttling & filtering restrict subscribers at the port level to prevent unauthorized multicast access. Static Routing segments the network to route traffic efficiently.

Advanced Quality of Service (QoS)
Voice and video traffic and be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS, voice and video services remain smooth, even in situations of low bandwidth.

ISP Features
Internet Service Providers (ISPs) get the support they need with features including sFlow, QinQ, L2PT, PPPoE ID Insertion, and IGMP authentication. 802.3ah OAM and Device Link Detection Protocol (DLDP) provide straightforward monitoring and troubleshooting of Ethernet links across the entire network.

IPv6 Support
An enormous variety of IPv6 functions guarantees your network will be ready for the Next Generation Network (NGN) without the need to upgrade your hardware. Take advantage of features such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery, and IPv6 Neighbor Discover to enhance your network environment.

Management features
Switch type Managed
Switch layer L2/L3
Quality of Service (QoS) support Yes
Web-based management Yes
Cloud-managed Yes
Traffic classification Yes
ARP inspection Yes
Configuring Location Settings (CLI) Yes
System event log Yes
MIB support RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213
Ports & interfaces
Basic switching RJ-45 Ethernet ports type No
SFP+ module slots quantity 8
Console port RJ-45/micro-USB
Power connector DC-in jack
Network
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x
10G support Yes
Port mirroring Yes
IP routing Yes
Flow control support Yes
Link aggregation Yes
Broadcast storm control Yes
Rate limiting Yes
Spanning tree protocol Yes
Head-of-line (HOL) blocking Yes
VLAN support Yes
Virtual LAN features Private VLAN, Protocol-based VLAN, Voice VLAN
Number of VLANs 4000
Data transmission
Switching capacity 160 Gbit/s
Forwarding rate 119.04 Mpps
MAC address table 32000 entries
Number of queues 8
Static route Yes
Jumbo frames support Yes
Jumbo frames 9000
Packet buffer memory 16 MB
Security
DHCP features DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Access Control List (ACL) Yes
IGMP snooping Yes
Security algorithms HTTPS, SSH, SSH-2, SSL/TLS
MAC address filtering Yes
Static port security Yes
SSH/SSL support Yes
Loop protection Yes
BPDU filtering/protection Yes
IP-MAC-Port binding Yes
Authentication Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication
Authentication type AAA, TACACS+
Queue scheduling algorithms SP, WRR+SP, Weighted Round Robin (WRR)
Multicast features
Multicast support Yes
Multicast Listener Discovery (MLD) snooping Y
Protocols
Management protocols SNMPv1/v2c/v3, SNTP
IPv4 & IPv6 features IPv6 Telnet, IPv6 ping, IPv6 tracert
Design
Rack mounting Yes
Product colour Black
LED indicators Yes
Power
Power source AC
Power supply included Yes
AC input voltage 220 V
AC input frequency 50/60 Hz
Power consumption (max) 15.46 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Operational conditions
Operating temperature (T-T) 0 - 45 øC
Storage temperature (T-T) -40 - 70 øC
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 90%
Heat dissipation 52.75 BTU/h
Weight & dimensions
Width 440 mm
Depth 180 mm
Height 44 mm
Packaging content
Cables included AC
Quick start guide Yes
Manual Yes
Rack mount kit Yes
Packaging data
Package type Box
Package width 528 mm
Package depth 250 mm
Package height 80 mm
Package weight 2.37 kg
Certificates
Certification CE, FCC, RoHS
Logistics data
Harmonized System (HS) code 85176990
Warranty
Base Warranty Non Non
